Workman e2050/e2065Page 5 – 16Chassis (Rev. B)

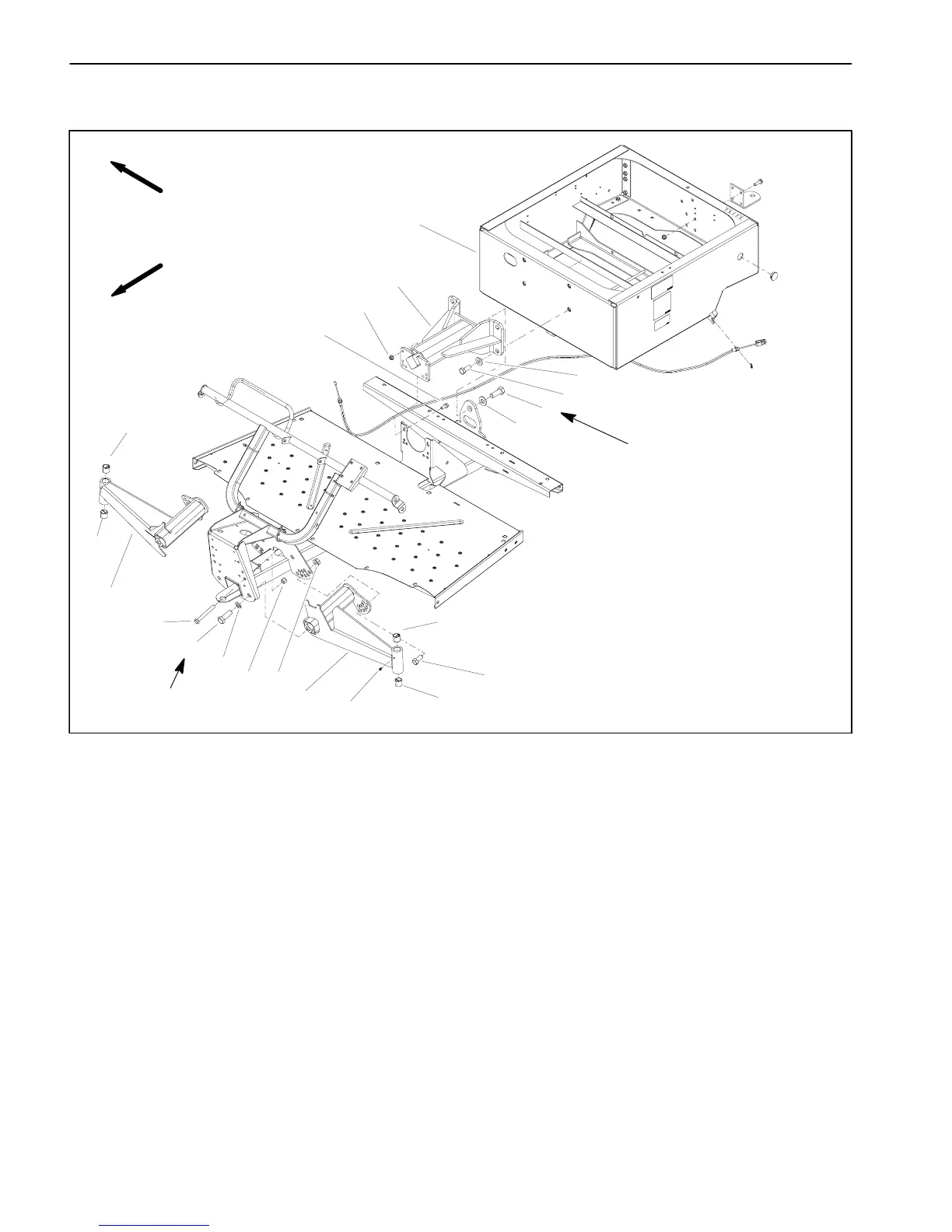

A–arm and Frame Pivot Yoke
1. Ride height adjustment bolt
2. Bushing
3. Grease fitting
4. A–arm (LH)
5. Flange nut
6. Lock nut
7. Lock washer
8. Centering bolt (2 used per A–arm)
9. Travel limiting bolt
10. A–arm (RH)
11. Flange head screw (4 used)
12. Flange nut (4 used)
13. Pivot yoke
14. Rear frame
15. Flat washer (4 used)
16. Cap screw (4 used)
17. Hardened washer
Figure 7
FRONT
RIGHT
6
3
8
9
4
7
2
1
10
5
16
13
17
14
8
12
11
15
240 to 290 ft–lb
(325 to 393 N–m)
240 to 290 ft–lb
(325 to 393 N–m)
2
2
2
