Workman e2050/e2065Page 5 – 6Chassis (Rev. B)

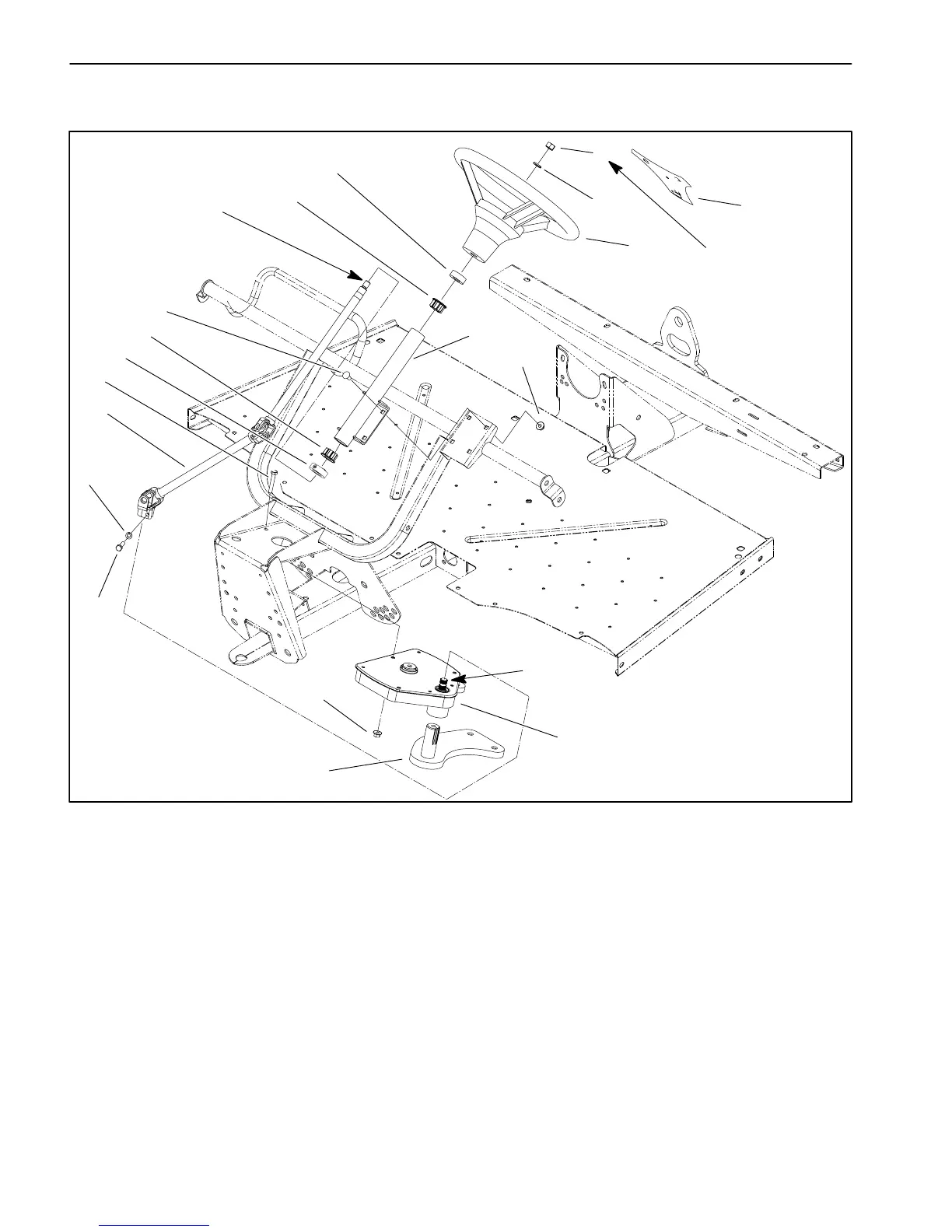

Upper Steering
1. Nut
2. Lock washer
3. Steering wheel
4. Flange lock nut
5. Steering gearbox
6. Cap screw
7. Lock washer
8. Steering shaft
9. Cap screw (3 used)
10. Upper steering bushing
11. Carriage bolt (4 used)
12. Steering column
13. Dust cover
14. Collar
15. Pitman arm
16. Steering wheel cover
Figure 1
13
6
2
10
3
8
4
9
5
12
1
11
7
10
4
14
15
Antiseize
lubricant
Antiseize
lubricant
16
13 to 17 ft–lb
(18 to 23 N–m)
