Workman e2050/e2065Page 5 – 8Chassis (Rev. B)

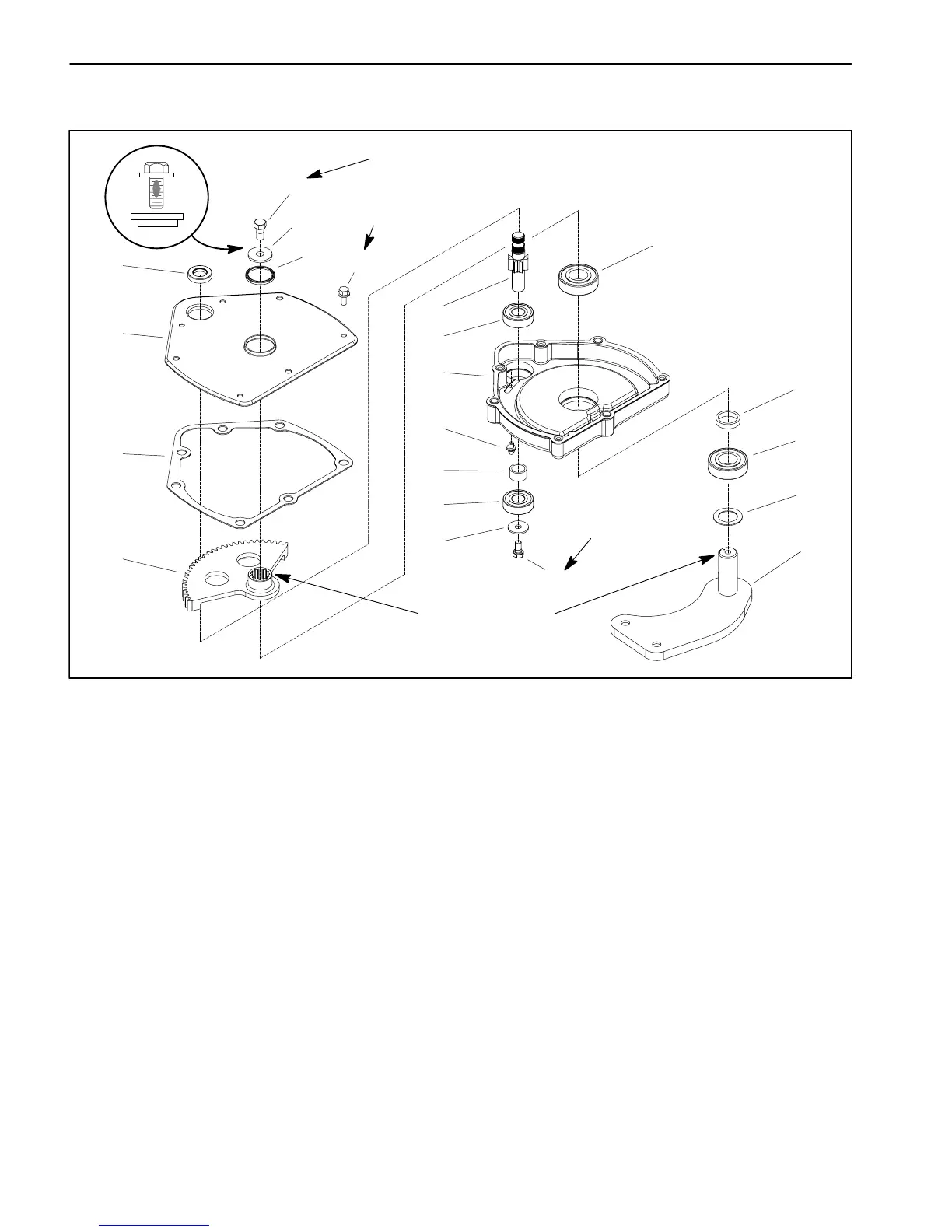

Steering Gearbox
1. Gasket
2. Hex washer head screw (4 used)
3. Seal
4. Sector gear
5. Flat washer
6. Ball bearing
7. Output shaft spacer
8. Stepped washer
9. Flange head screw with patch lock
10. Ball bearing
11. Input shaft spacer
12. Flat washer
13. Cap screw
14. Grease fitting
15. Steering housing cover
16. Steering housing
17. Pinion gear
18. Oil seal
19. Pitman arm
Figure 2
18
15
1
4
7
6
5
19
6
13
12
10
11
14
16
10
17
9
8
3
2
Note alignment marks
27 to 33 ft–lb
(37 to 45 N–m)
90 to 110 in–lb
(10.2 to 12.4 N–m)
175 to 225 in–lb
(19.8 to 25.4 N–m)
