Workman e2050/e2065
Transaxle and Brakes (Rev. B)
Page 4 – 22

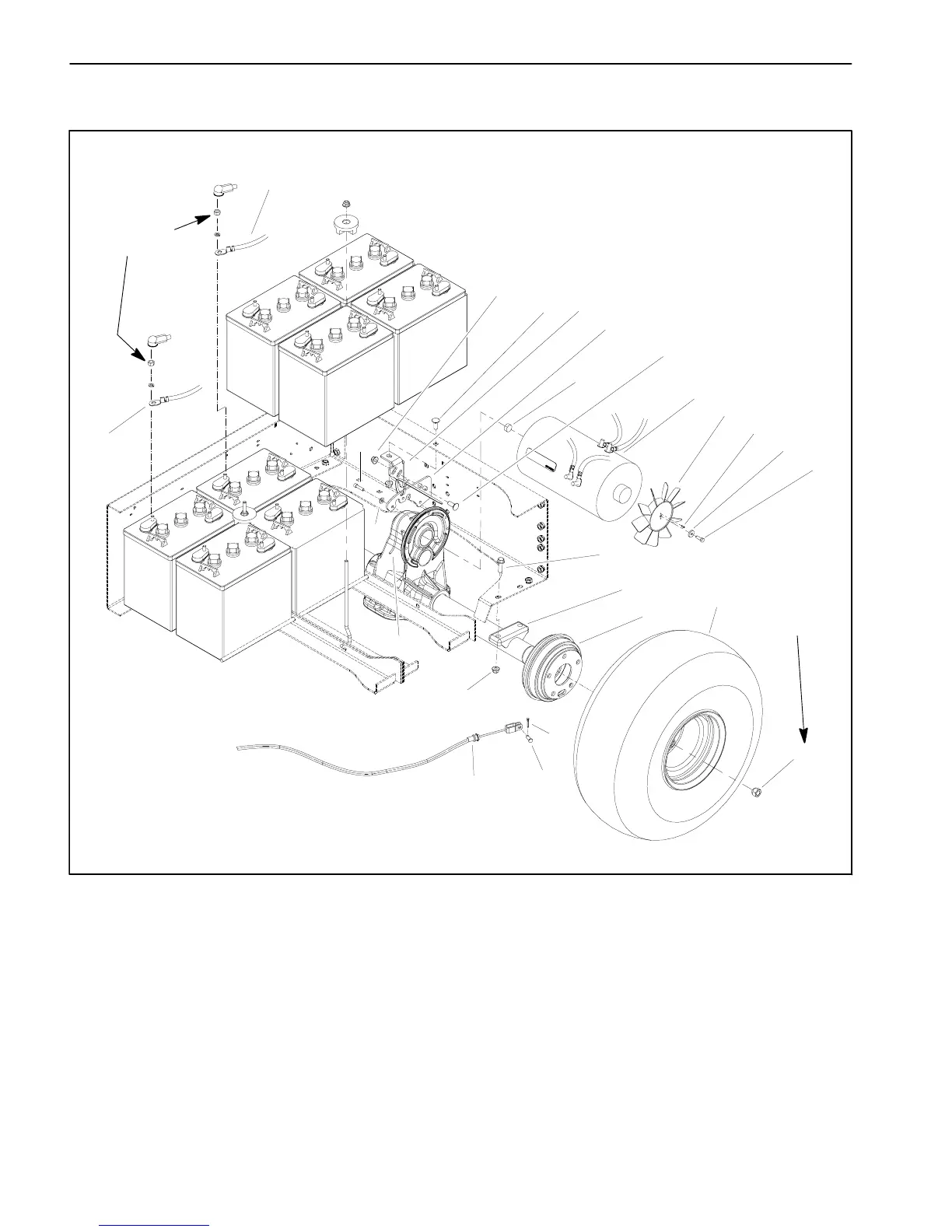

Transaxle
1. Socket head screw (6 used)
2. Flange nut
3. Carriage screw (5 used)
4. Support bracket
5. Transaxle mount plate
6. Rubber damper
7. Traction motor
8. Fan
9. Roll pin (2 used)
10. Washer
11. Socket head screw
12. Lug nut (5 used per wheel)
13. Wheel assembly
14. Brake drum
15. Transaxle
16. Flange head screw (4 used)
17. Cotter pin
18. Clevis pin
19. Brake cable
20. Transaxle vent hose
21. Flat washer (6 used)
22. Negative battery cable
23. Positive battery cable
Figure 13
v
13
14
12
11
15
8
9
7
6
10
3
4
2
1
5
19
21
16
17
18
3
2
20
45 to 65 ft–lb
(61 to 88 N–m)
22
23
115 to 125 in–lb
(13 to 14.1 N–m)
