Workman e2050/e2065
Transaxle and Brakes (Rev. B)
Page 4 – 16

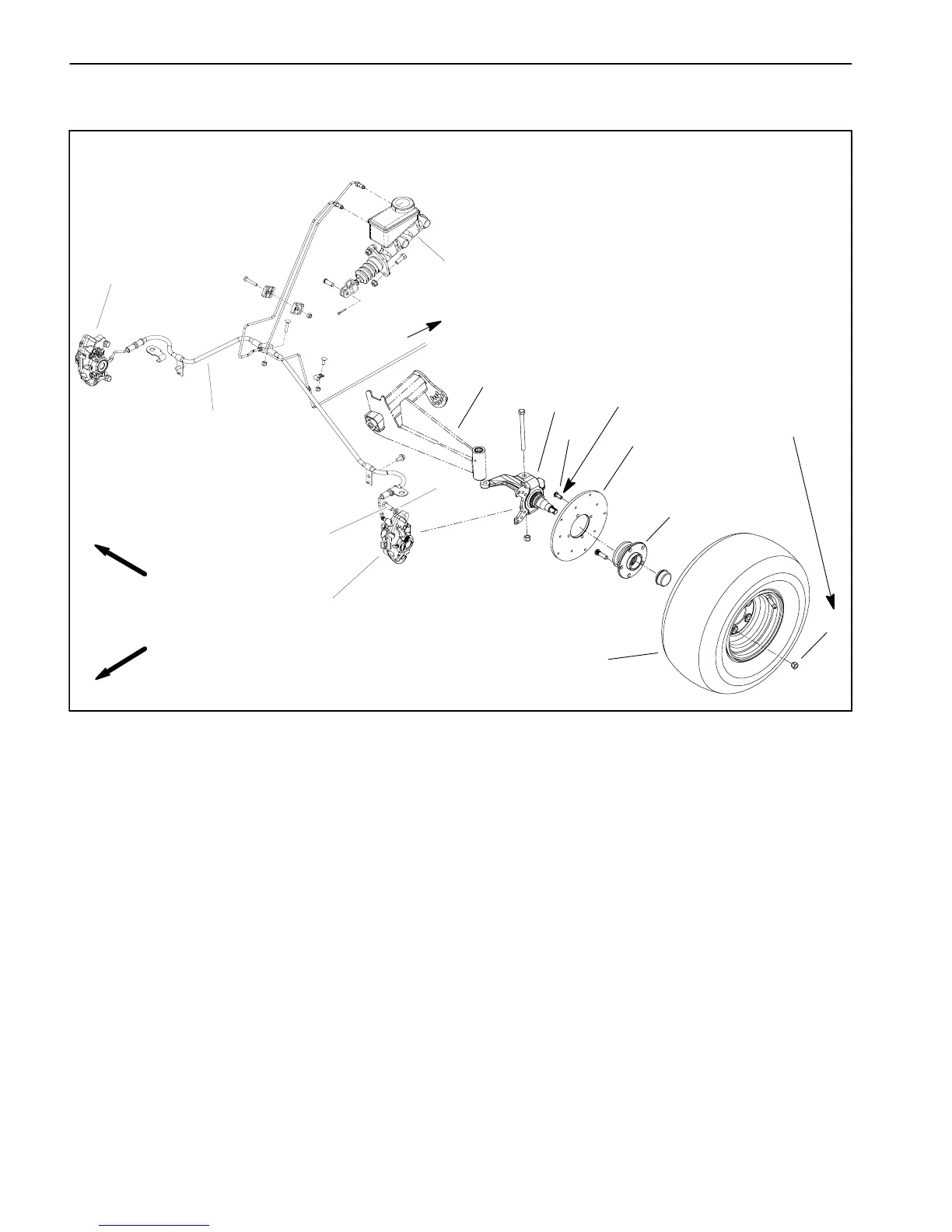

Front Brake Calipers (Workman e2065)
1. LH brake caliper
2. RH brake caliper
3. Lock washer (2 per caliper used)
4. Cap screw (2 per caliper used)
5. Wheel hub assembly
6. Brake rotor
7. Socket head screw (4 per rotor used)
8. Spindle (LH shown)
9. A–arm (LH shown)
10. Brake master cylinder
11. Wheel assembly
12. Lug nut
13. Front brake hose
Figure 8
8
7
5
6
9
FRONT
RIGHT
12
11
45 to 65 ft–lb
(61 to 88 N–m)
Loctite #242
2
1
4
3
13
10
To rear
brakes
To Next Page
