Workman e2050/e2065
Page 3 – 16
Electrical System (Rev. B)
Vehicle Direction (Forward/Reverse) and Headlight Switches

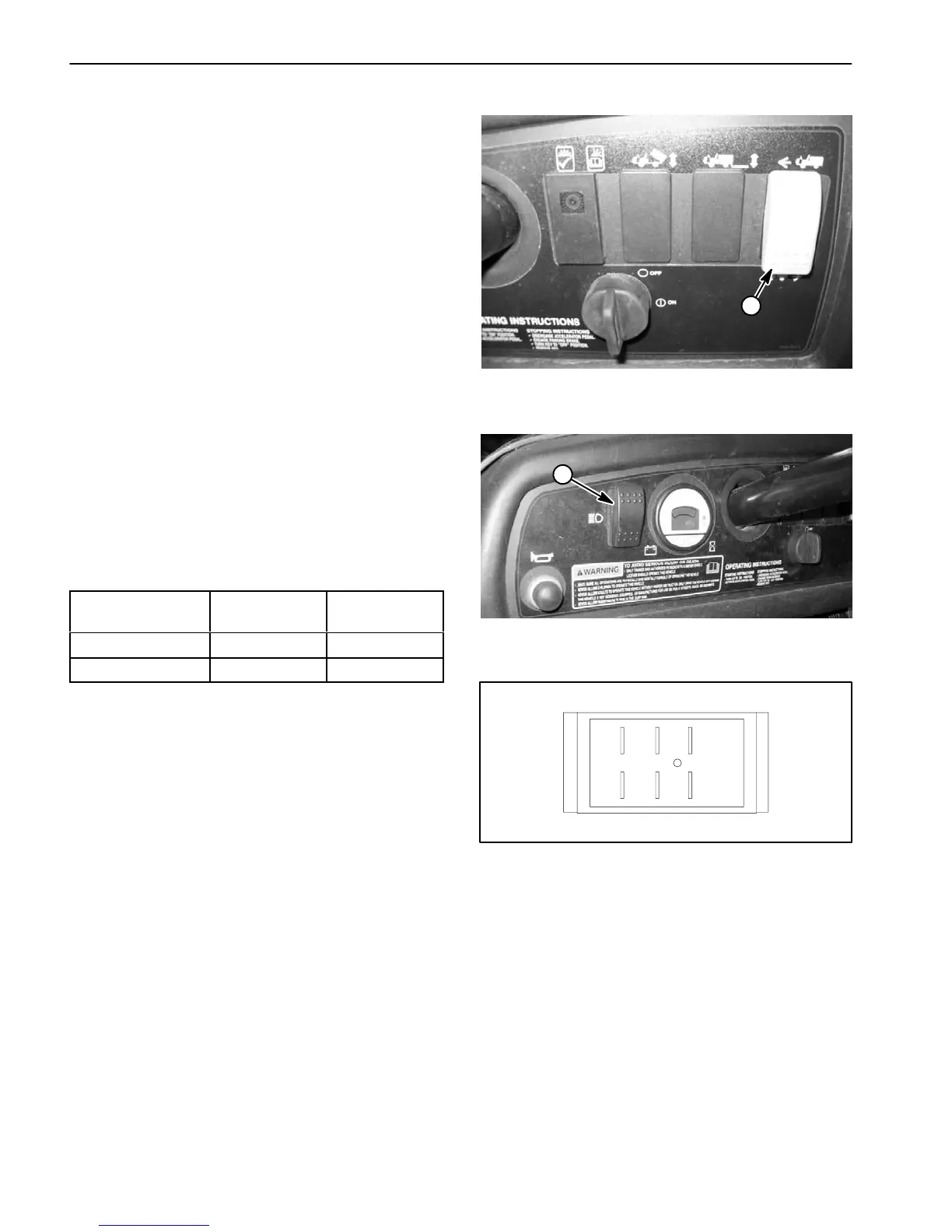

The vehicle direction (forward/reverse) switch (Fig. 21)
and headlight switch (Fig. 22) are located on the control
panel. These two switches have identical logic.
The vehicle direction switch is one of several inputs for
the vehicle controller and allows the direction (forward/
reverse) of the vehicle to be changed by the operator.
The headlight switch allows the headlights to be turned
on and off.
NOTE: The headlight system on the Workman e2050
and e2065 consists of two (2) 24 volt lamps connected
in series. If one lamp is burned out or disconnected, nei-
ther lamp will illuminate.
Testing
The switch terminals for these switches are marked as
shown in Figure 23. The circuitry of the switch is shown
in the chart below. With the use of a multimeter (ohms
setting), the switch functions may be tested to determine
whether continuity exists between the various terminals
for each switch position. Verify continuity between
switch terminals.
SWITCH
POSITION
NORMAL
CIRCUITS
OTHER
CIRCUITS
OFF / FORWARD 1 + 2 4 + 5
ON / REVERSE 2 + 3 5 + 6
1. Direction switch
Figure 21
1
1. Headlight switch
Figure 22
1
Figure 23
12
4
3
56
