Workman e2050/e2065Page 5 – 12Chassis (Rev. B)

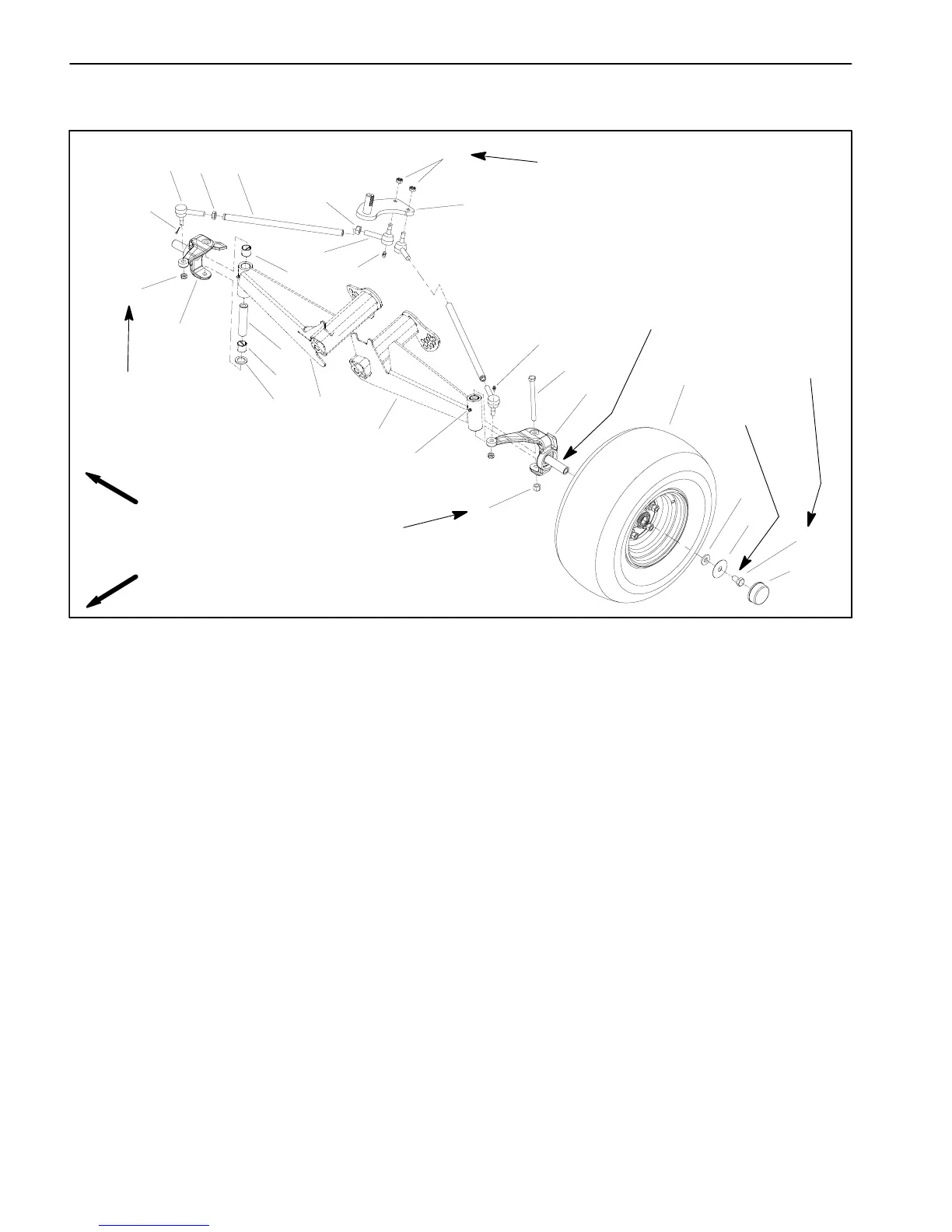

Lower Steering (Workman e2050)
1. Pitman arm
2. Grease fitting
3. Cap screw (king pin)
4. Spindle (LH)
5. Front wheel assembly
6. Flat washer
7. Large flat washer
8. Cap screw
9. Dust cap
10. Lock nut
11. A–arm (LH)
12. A–arm (RH)
13. Thrust washer
14. Bushing
15. Kingpin sleeve
16. Spindle (RH)
17. Slotted hex nut (2 used per tie rod)
18. Cotter pin (2 used per tie rod)
19. Ball joint (RH thread)
20. Jam nut (RH thread)
21. Tie rod
22. Jam nut (LH thread)
23. Ball joint (LH thread)
24. Grease fitting
Figure 5
FRONT
RIGHT
1
6
5
4
3
2
8
7
9
14
13
12
11
10
16
15
2
20
19
18
17
22
21
17
23
24
Antiseize
Lubricant
135 to 165 ft–lb
(183 to 224 N–m)
20 to 25 ft–lb
(27 to 34 N–m)
20 to 25 ft–lb
(27 to 34 N–m)
14
Loctite #242
75 to 100 ft–lb
(102 to 136 N–m)
NOTE: Both tie rod assemblies consist of two ball joints
(items 19 and 23) with jam nuts, two slotted hex nuts
(item 17), two cotter pins (item 18) and tie rod (item 21).
