Workman e2050/e2065Page 5 – 20Chassis (Rev. B)

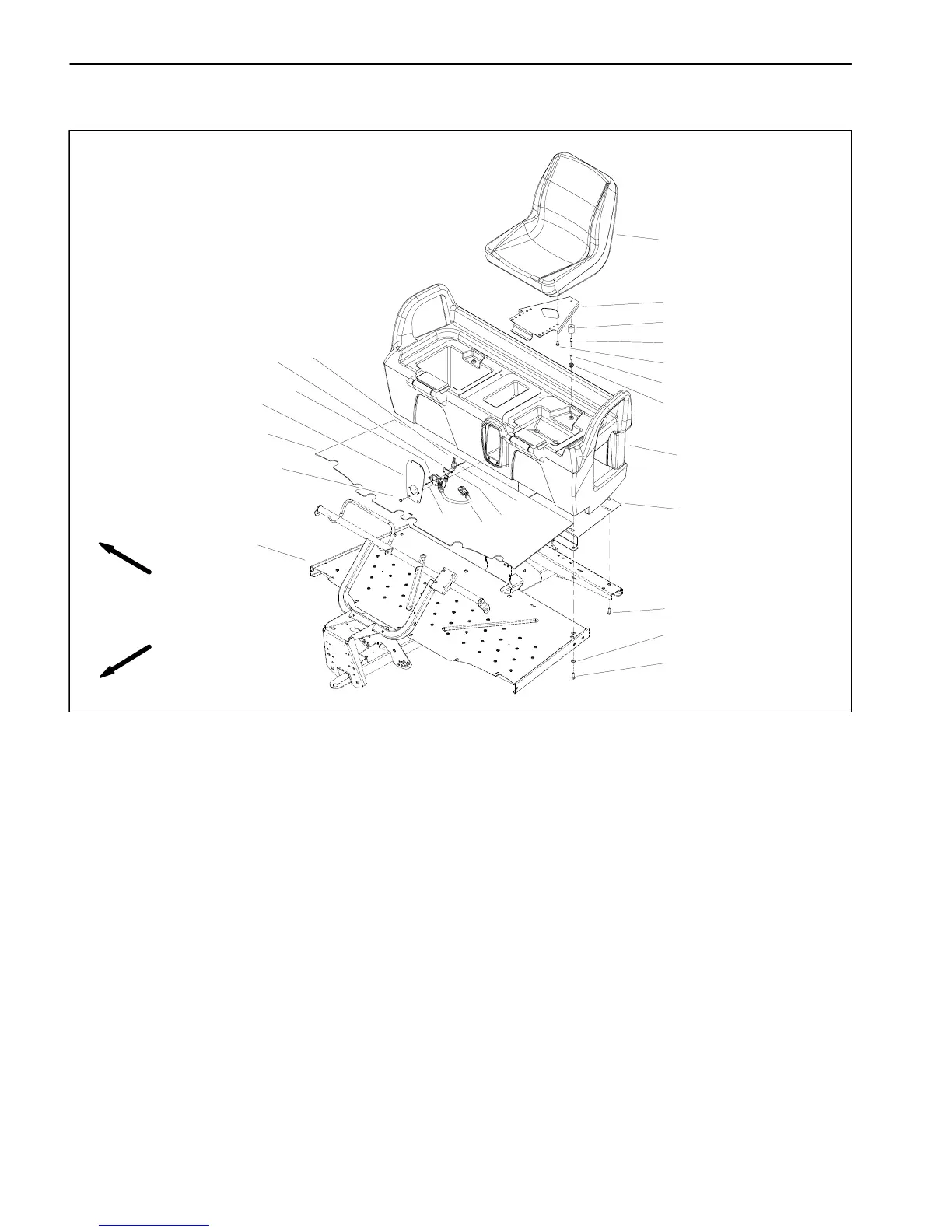

Seat Base
1. Seat
2. Seat bracket
3. Rubber receptacle
4. Rivet
5. Cap screw (4 used per seat)
6. Screw
7. Holding post
8. Seat base
9. Seat base tray
10. Flange head screw (8 used)
11. Flat washer (4 used)
12. Front frame
13. Screw (4 used)
14. Floor mat
15. Charger receptacle plate
16. Charger receptacle
17. Switch plate
18. Charger interlock switch
19. Pop rivet (2 used)
20. Lock nut (2 used)
21. Charger wire harness
22. Socket head screw (2 used)
Figure 11
6
3
8
9
4
7
2
1
10
5
11
17
18
13
19
10
14
15
16
20
21
22
12
FRONT
RIGHT
