Workman e2050/e2065Page 5 – 10Chassis (Rev. B)

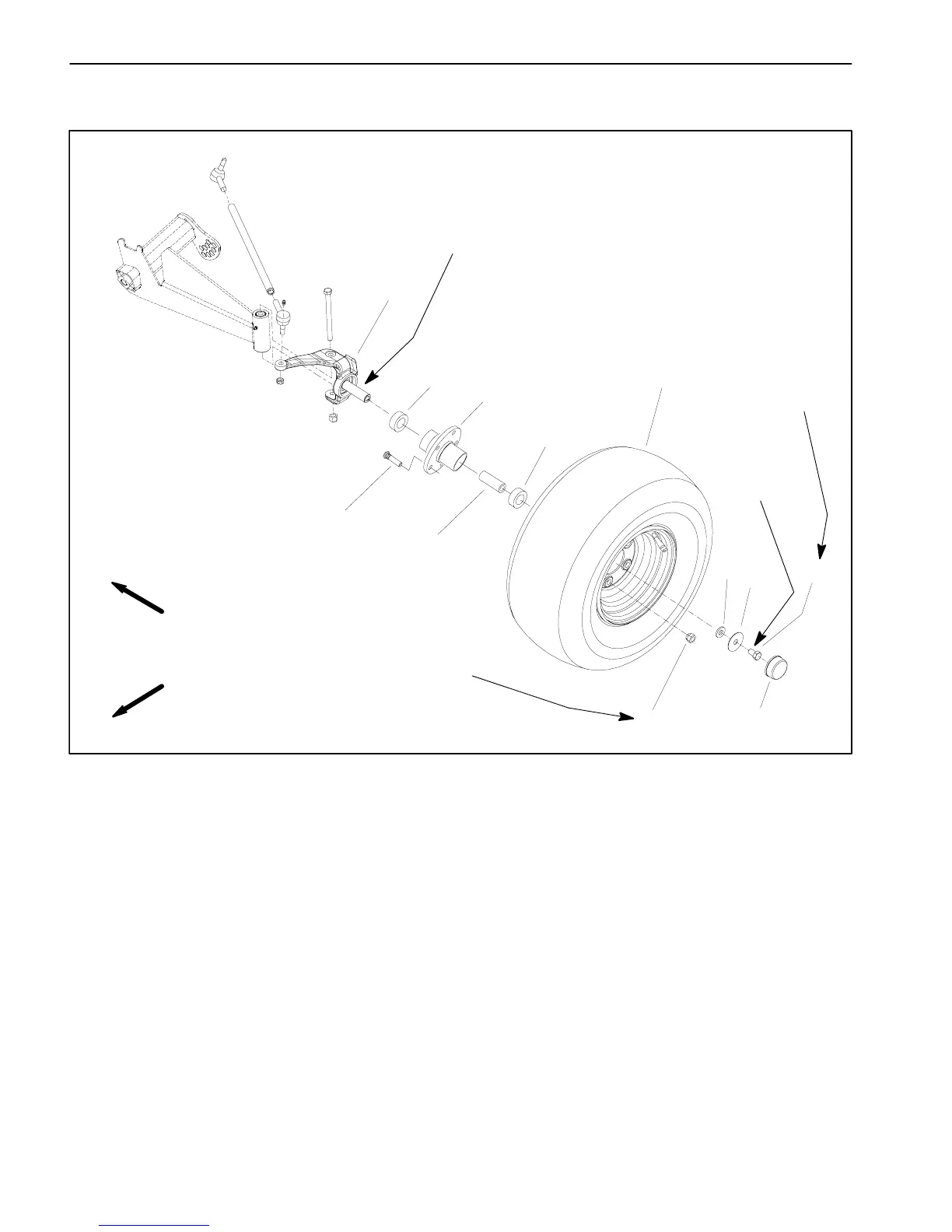

Front Wheels (Workman e2050)
1. Spindle (LH shown)
2. Bearing (with retaining ring)
3. Wheel stud (5 per wheel)
4. Wheel hub
5. Spacer
6. Tire/wheel assembly
7. Lug nut (5 per wheel)
8. Flat washer
9. Large flat washer
10. Cap screw
11. Dust cap
Figure 3
7
4
3
2
2
1
6
5
8
9
10
11
FRONT
RIGHT
Antiseize
Lubricant
135 to 165 ft–lb
(183 to 224 N–m)
Loctite #242
45 to 65 ft–lb
(61 to 88 N–m)
