Toshiba B-EP2DL Series Maintenance Manual

2. MAJOR UNIT REPLACEMENT EO18-33024
2.1 Replacing the CPU PC Board
2-4

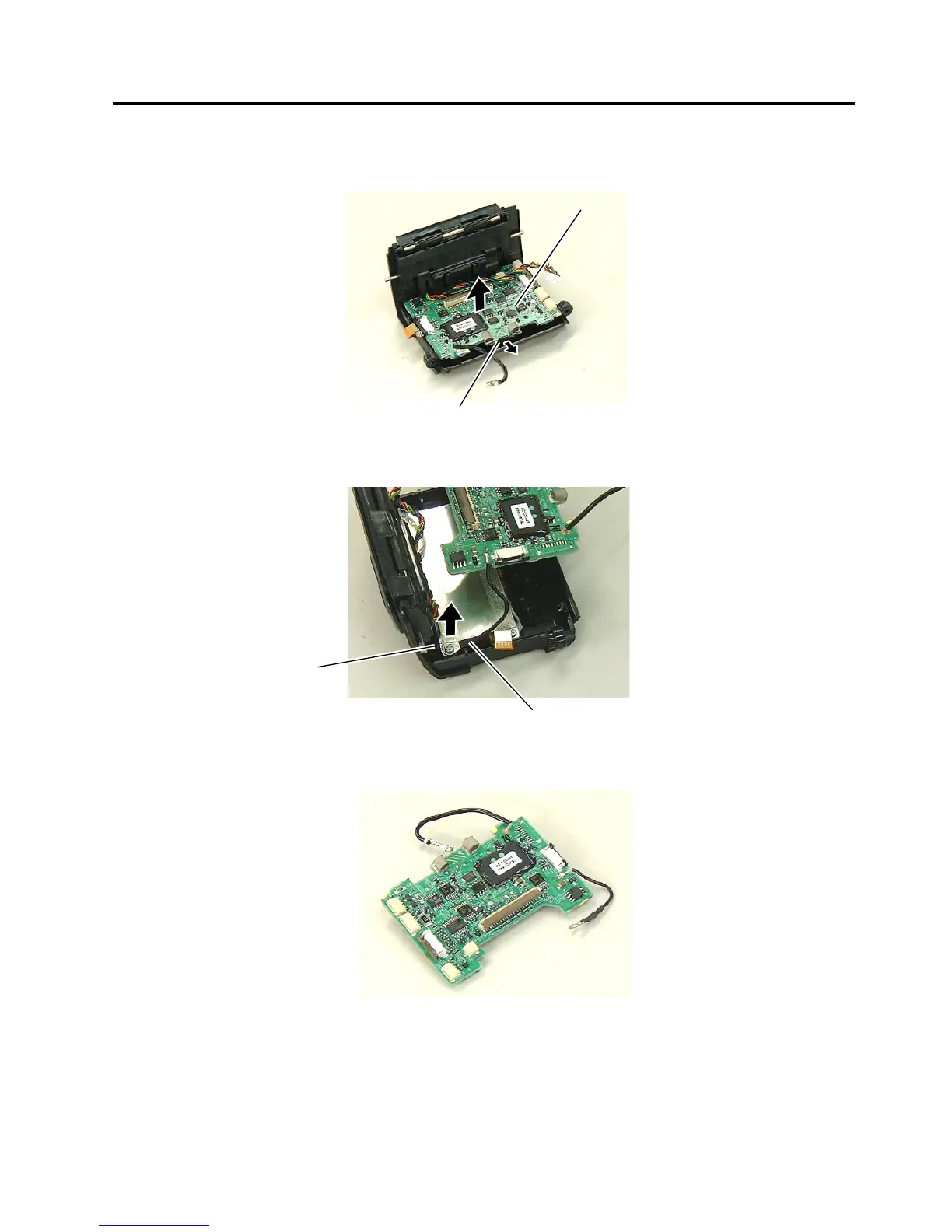

8) Open the Hooks, then remove the CPU PC Board from the Front Cover.
9) Remove the screw, then remove the Earth Terminal.
10) Replace the CPU PC Board with a new one, then reassemble in the reverse order of removal.
Hook
CPU PC Board
T-2x5 Screw
Earth Terminal
