Toshiba B-EP2DL Series Maintenance Manual

2. MAJOR UNIT REPLACEMENT EO18-33024
2.1 Replacing the CPU PC Board
2-3

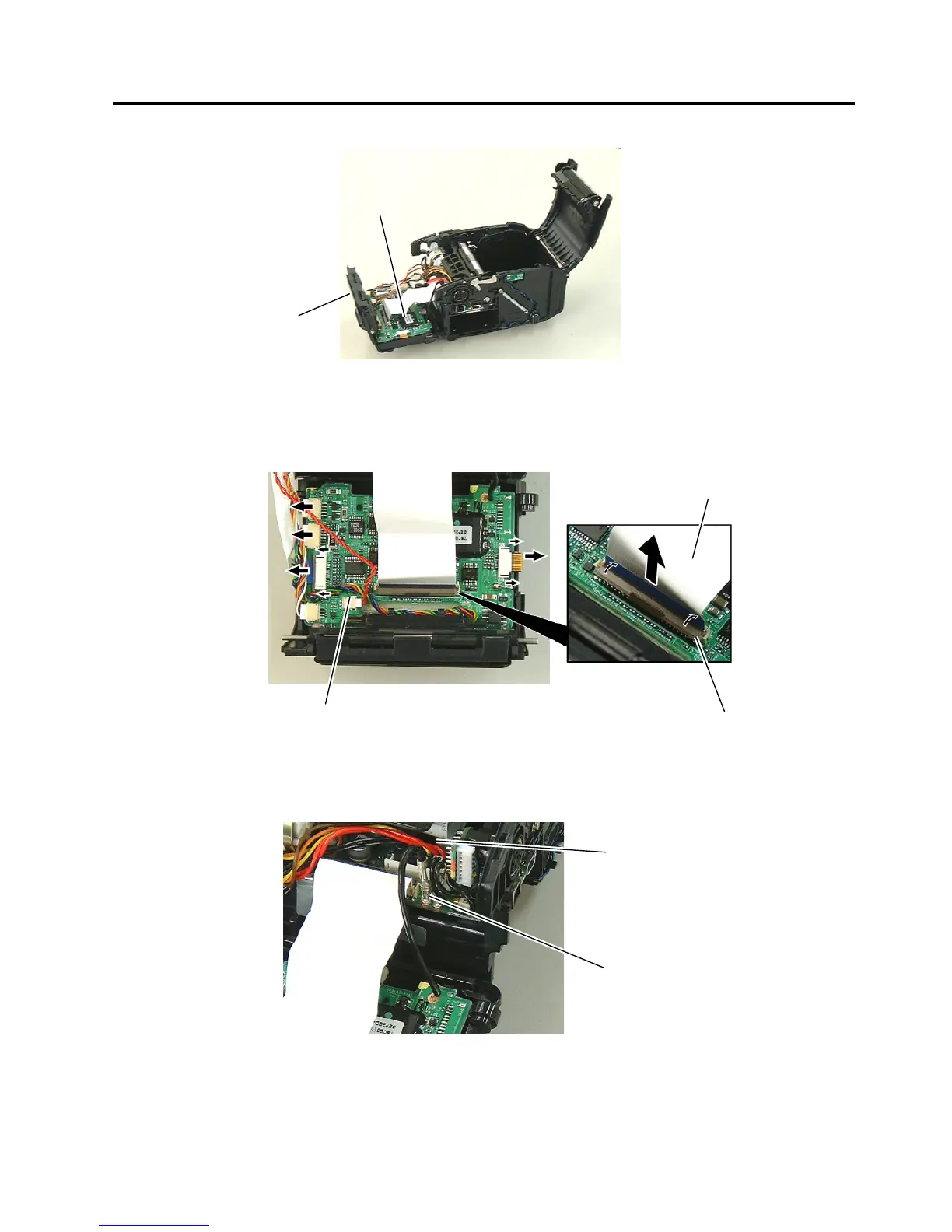

7) Remove the Front Cover.
6) Disconnect all Connectors and FPC Cable from the CPU PC Board.
NOTE: Before disconnecting the FPC Cable, release the Connector Lock.
7) Disconnect the Earth Terminal from the Drive PC Board.
Front Cover
CPU PC Board
FPC Cable
Connector Lock
CPU PC Board
Drive PC Board
Earth Terminal
