1. OUTLINE EO10-33024
1.5 ELECTRONICS SPECIFICATIONS
1- 10

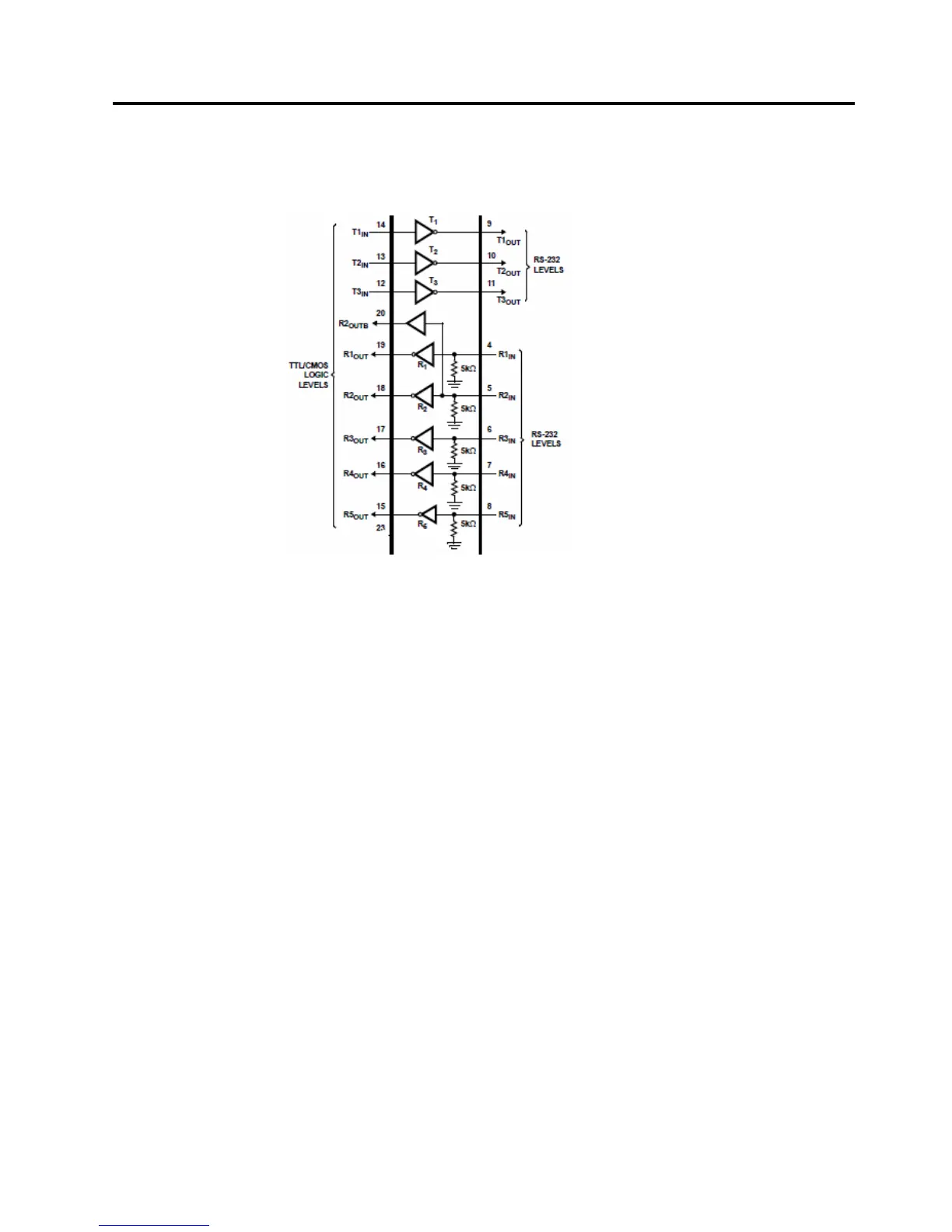

10) Interface circuit
* Circuit
* Signal level
Input voltage: "H" .. +2.4 V to + 25V Output voltage: "H" = MIN +5.0V, Typ. +5.4V
"L" ... –25V to 0.6V "L" = MIN -5.0V, Typ. -5.4V
(4) Centronics interface (Option)
1) Data input method: 8-bit parallel (DATA 1 to 8)
2) Control signals
SPP mode: nStrobe, nAck, Busy, PError, Select, nAutoFd, nInit, nFault, nSelectIn
Nibble mode: HostClk, PtrClk, PtrBusy, AckDataReq, Xflag, HostBusy, nInit, nDataAvail,
IEEE1284Active
3) Data input code: ASCII, JIS 8-bit code for European characters, 8-bit code for graphic
4) Receiving buffer: 6MB (Max. 65536 lines)
5) Input/Output circuit configuration and Input/Output conditions
