Toshiba B-EX4 T1 Series User Manual

1. OUTLINE SPTM-0152
1.3 APPEARANCE AND DIMENSIONS (APPROXIMATE)
1-3

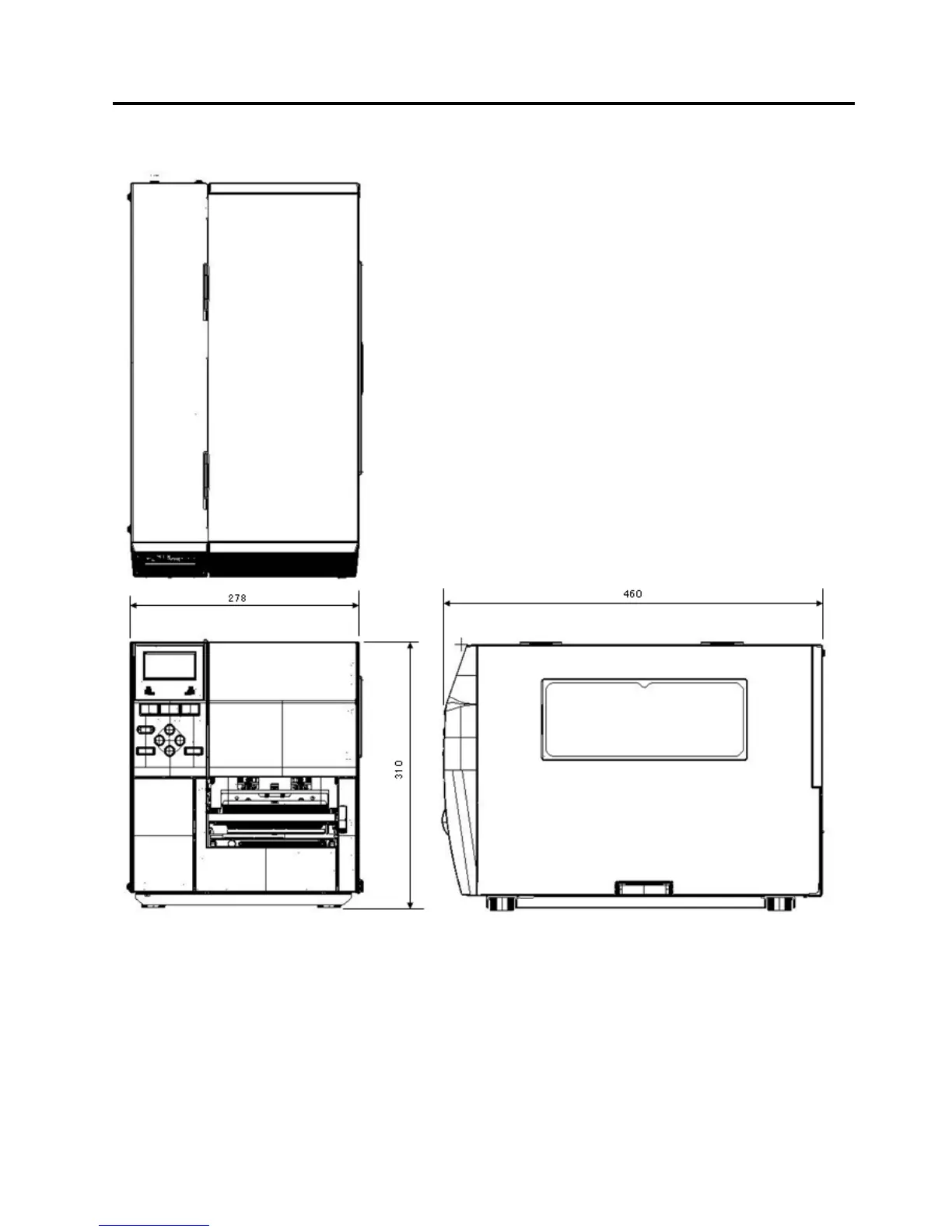

1.3.3 Dimensions (Approximate)
Color : Metal cover: Cool Black Mold cover: Cool Black
Weight : B-EX4 T2 19.0Kg(acking condition) 17.0Kg(rinter only)
Outside dimension : Width 278mm x Depth 460mm x Hight 310mm
It is based on individual product specifications.

Toshiba B-EX4 T1 Series Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Resolution	203 dpi, 300 dpi, 600 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fanfold
Connectivity	USB 2.0, Ethernet
Optional Interfaces	Wireless LAN
Media Thickness	0.06 mm to 0.17 mm
Ribbon Width	40 – 110 mm
Barcodes	Code 39, Code 128, UPC/EAN/JAN, Postnet
2D Codes	Data Matrix, PDF417, QR Code, MaxiCode
