Toshiba B-EX4 T1 Series - APPEARANCE AND DIMENSIONS (APPROXIMATE)

1. OUTLINE SPTM-0152
1.3 APPEARANCE AND DIMENSIONS (APPROXIMATE)
1-2
1.3 APPEARANCE AND DIMENSIONS (APPROXIMATE)

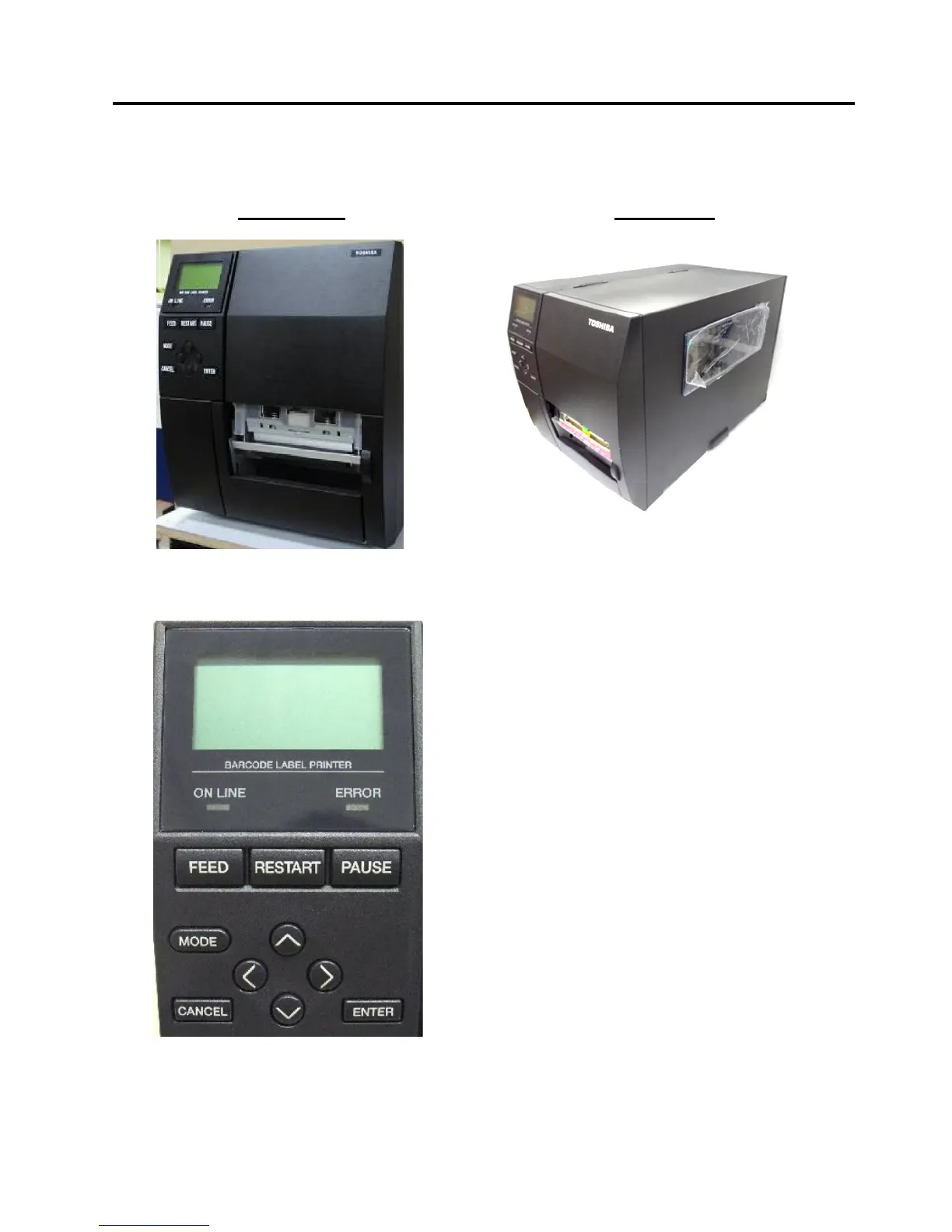

1.3.1 Appearance
Front drawing
Side drawing
1.3.2 Operation Panel
Key Function
(1) Feeds one sheet of paper. [FEED]
(2) Prints the data in the image buffer
on one label according to the
system mode setting.
(1) Resumes printing after a temporary
stop of label printing or after an
error.
(2) Places the printer in the usual initial
state which is obtained when the
power is turned on.
[RESTART]
(3) Switches to user mode.
(1) Stops label printing temporarily. [PAUSE]
(2) Programs the threshold values.
[MODE] (1) Switches to user mode.
[CANCEL] (1) Clears the job.
[ENTER] (1) Displays help messages.
[UP] (1) No function
[DOWN] (1) No function
[LEFT] (1) No function
[RIGHT] (1) Displays help messages.
