142 T1-16S User’s Manual
7. Instructions
FUN 026 TNOT Table invert transfer
Expression
Input −[ A TNOT (n) B ]− Output
Function
When the input is ON, the data of n registers starting with A are bit-inverted and transferred to n
registers starting with B in a block. The allowable range of the table size n is 1 to 1024 words.
Execution condition
Input Operation Output
OFF No execution OFF
ON Execution ON
Operand
Name Device Register Constant Index
X Y R S T. C. XWYWRWSW T C D I J K
A Start of source
√√√√√√√
n Table size 1 - 1024
B Start of
destination
√√√√√√

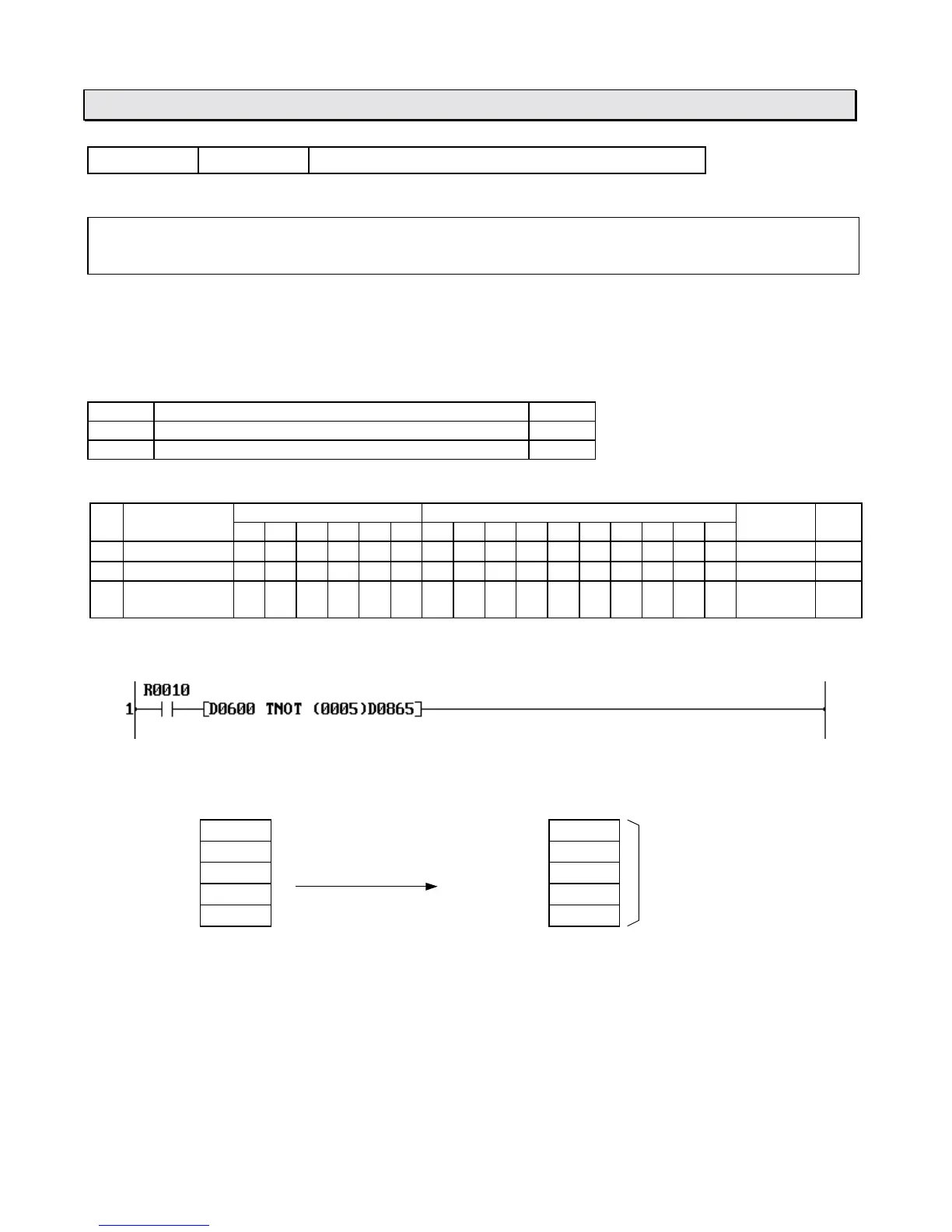

Example
When R010 is ON, the data of D0600 to D0604 (5 registers) are bit-inverted and transferred to
D0865 to D0869, and the output is turned ON.
D0600 H00FF D0865 HFF00
D0601 H0000 Bit-invert D0866 HFFFF
D0602 H1234 and transfer D0867 HEDCB 5 registers
D0603 H5555 D0868 HAAAA
D0604 H89AB D0869 H7654
Note
• The source and destination tables can be overlapped.
