6F3B0253
42 T1-16S User’s Manual
2. Specifications
2.3 I/O specifications

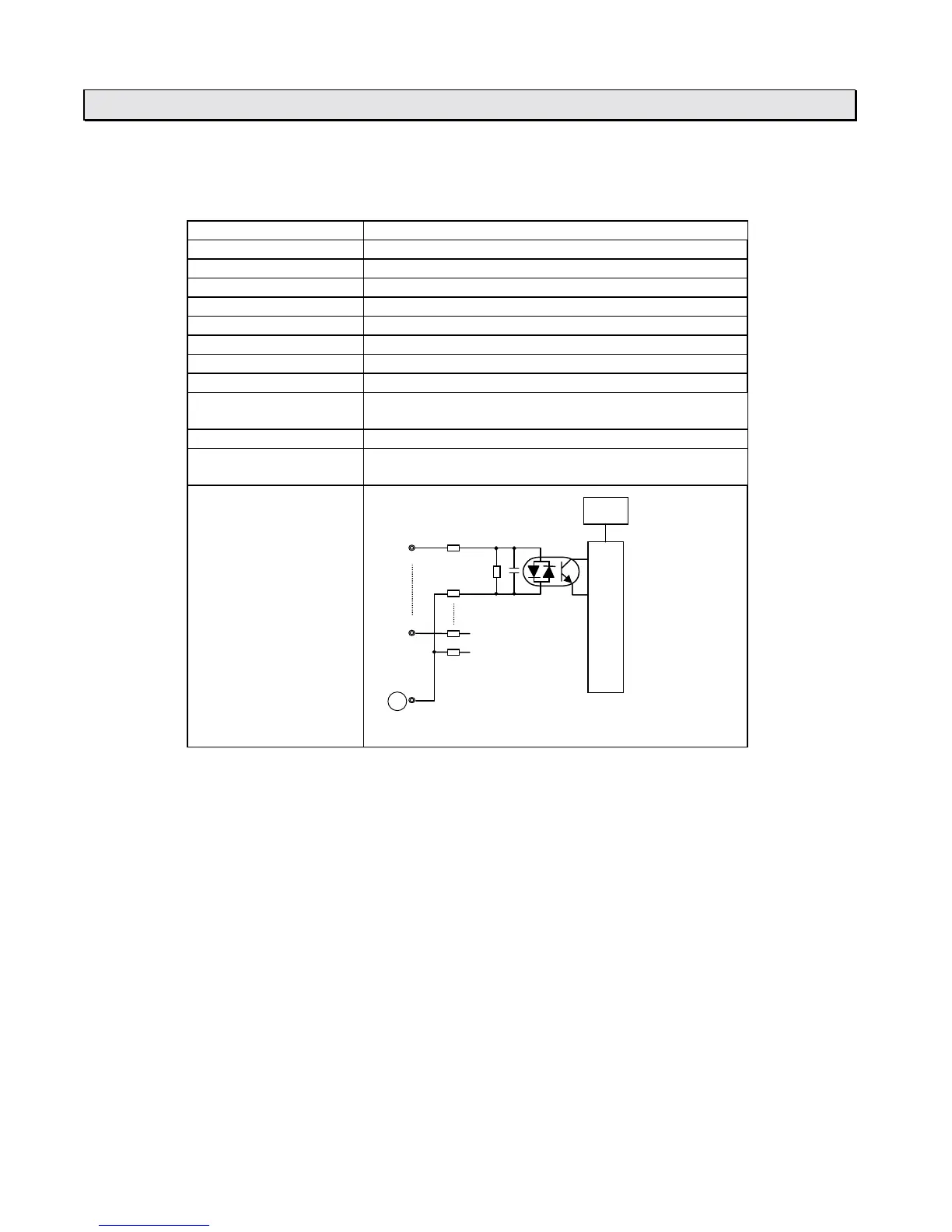

• Input specifications
Item Specifications
Input type DC input, current source/sink
Number of input points 8 points (8 points/common)
Rated input voltage 24Vdc, +10/-15 %
Rated input current 7mA (at 24Vdc)
Min. ON voltage 15Vdc
Max. OFF voltage 5Vdc
ON delay time 0 to 15ms
*1
OFF delay time 0 to 15ms
*1
Input signal display LED display for all points, lit at ON, internal logic
side
External connection Removable terminal block, M3
Withstand voltage 1500Vac, 1 minute
(between internal and external circuits)
Internal circuit
7
0
C
Internal circuit
LED
*1: User can change the input ON/OFF delay time of the DC input.
The setting range is 0 to 15ms. (Default value = 10ms) Refer to section 8.2.
