4. Installation and Wiring
4.5 Power supply wiring

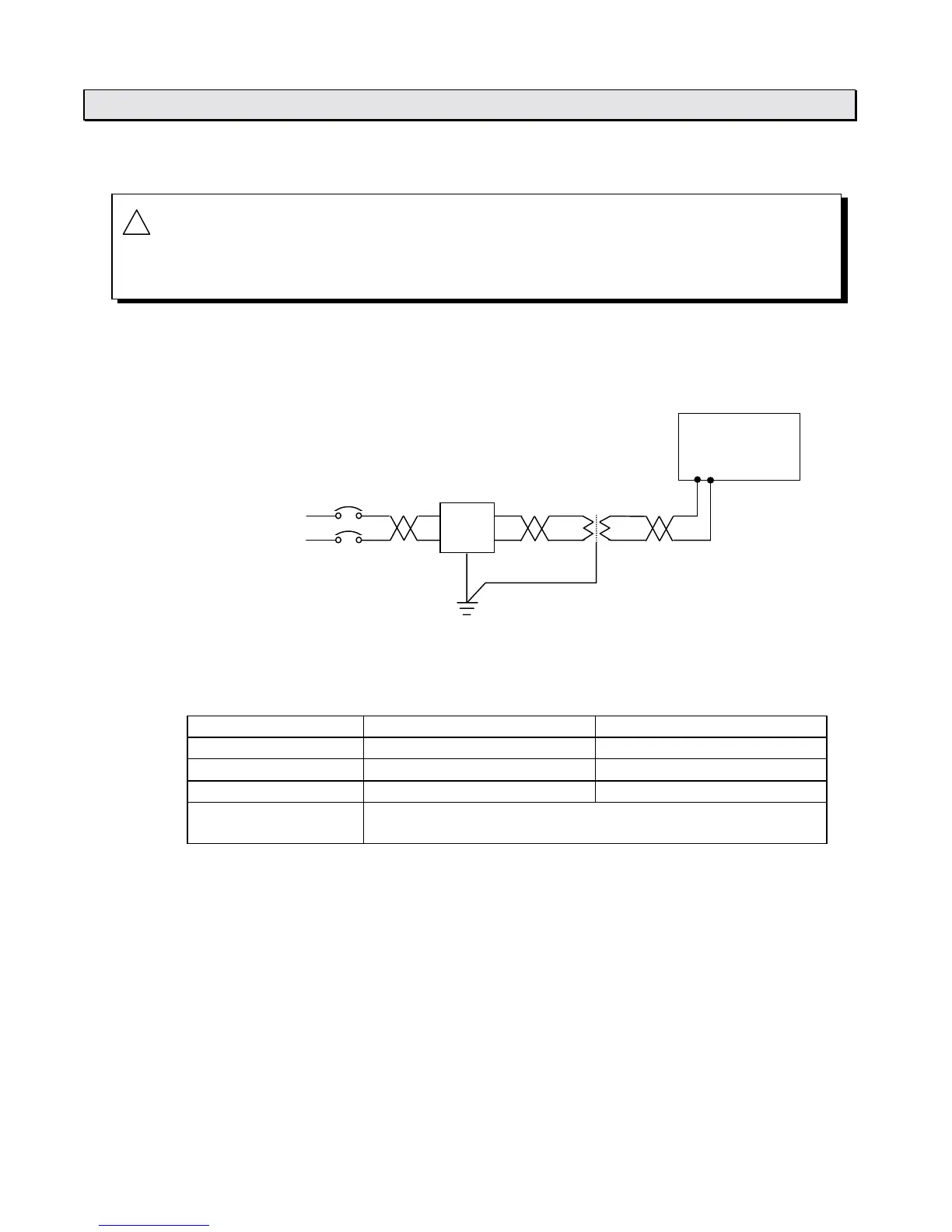

Wire the power source to the T1-16S power supply terminals.
Insulation
transformer
Line filter
Power source
T1-16S
• Power conditions:
AC power supply type DC power supply type
Rated voltage 100 to 240Vac, +10/-15% 24Vdc, +20/-15%
Frequency
50/60Hz, ±5%
-
Power consumption 45VA or less 18W or less
Retentive power
interruption
Continuous operation for less than 10ms
• 1.25mm
2
(16 AWG) twisted-pair cable should be used for the power cable.
• The power cable should be separated from other cables.
!
CAUTION
1. Turn off power before wiring to minimize the risk of electrical shock.
2. Applying excess power voltage to the T1-16S can cause explosion or
fire. Apply power of the specified ratings described below.
