8. Special I/O Functions

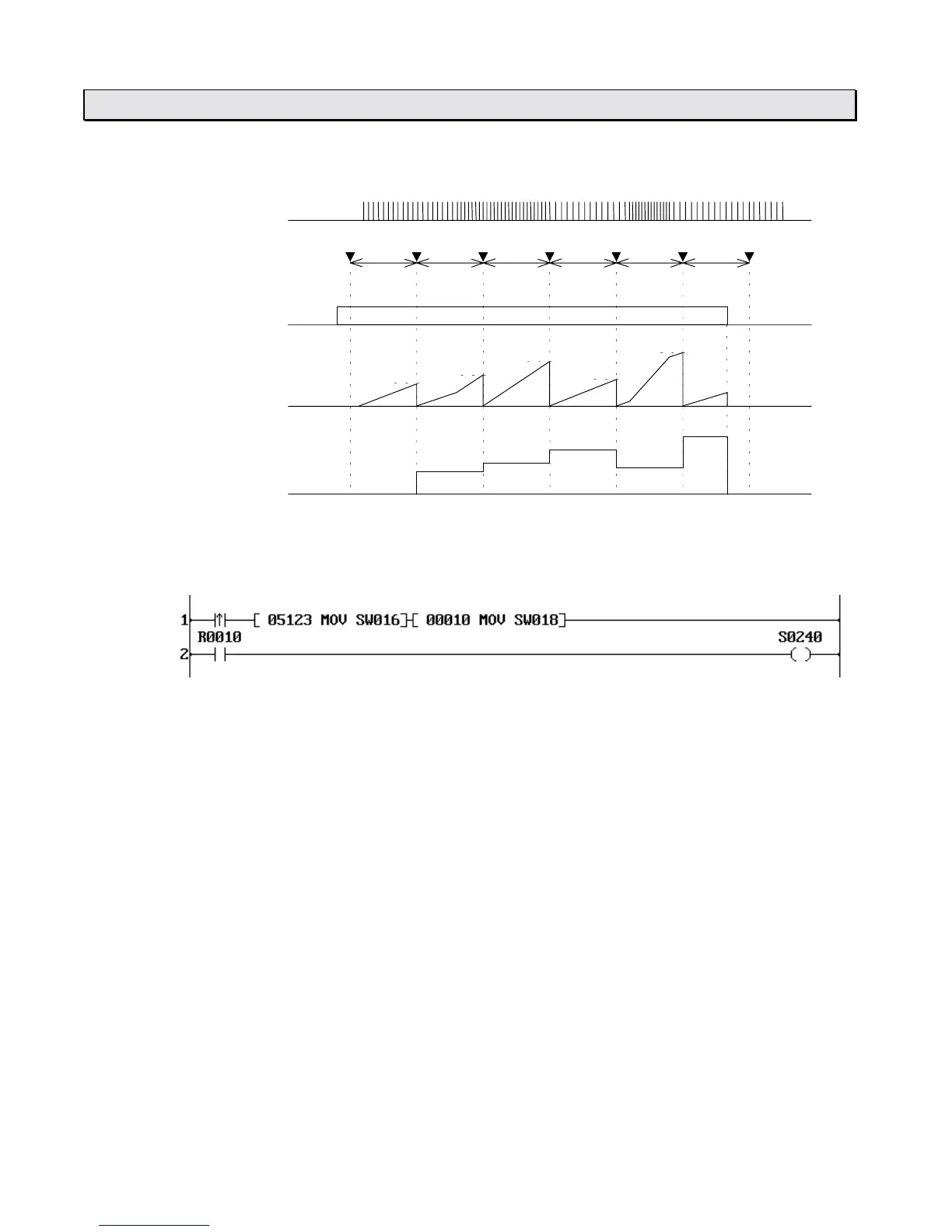

Operation
Count input
Sampling time
Soft-gate
Internal
count value
Hold value
Sample program
(H1403)
In this example, 5123 (H1403) is set in SW16. As a result, the single phase speed-
counter (channel 1 only) is selected.
The sampling time is set as 100ms, because 10 is written in SW18.
While R010 is ON, the soft-gate (S240) is set to ON, and the speed-counter works.
The hold value is stored in SW22.
