6F3B0253
44 T1-16S User’s Manual

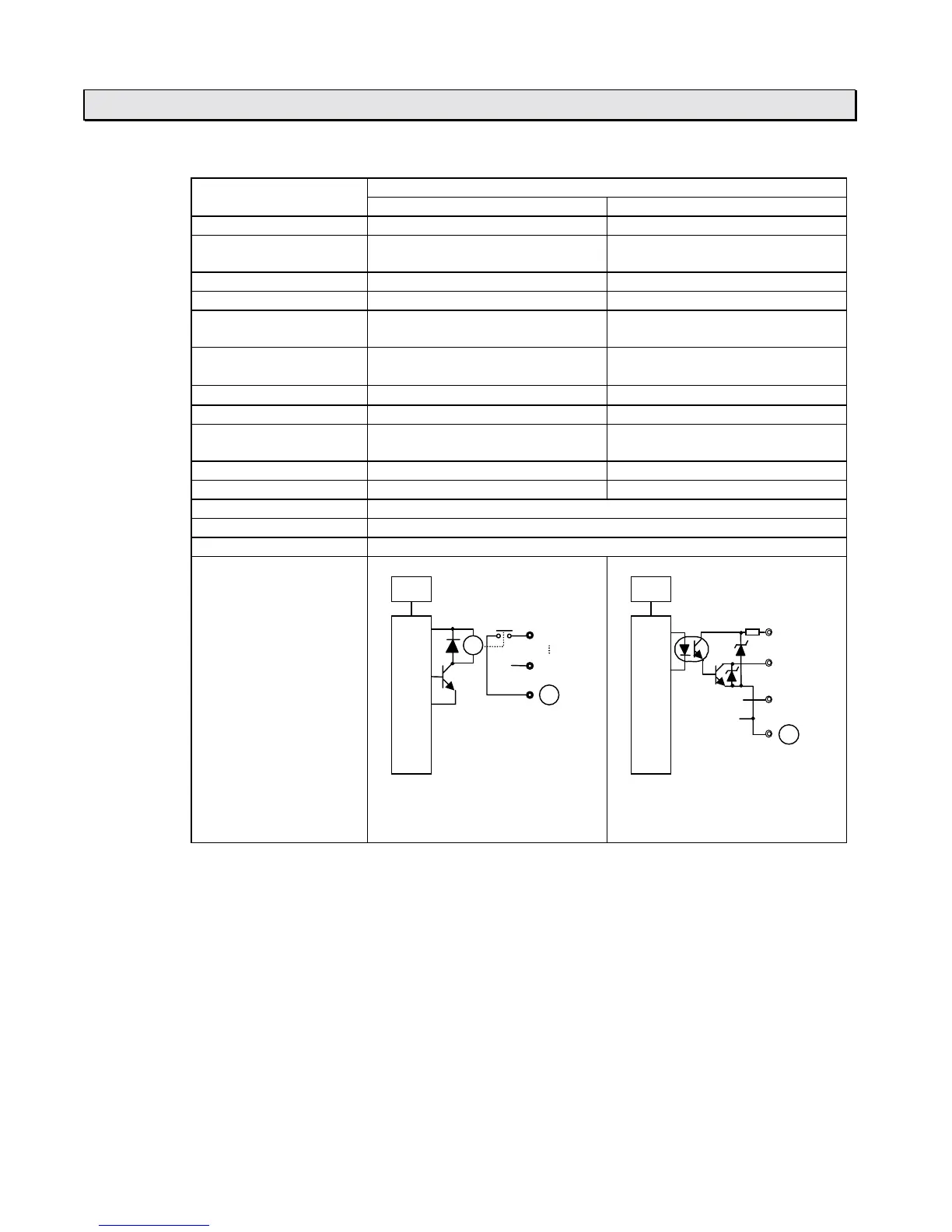

2. Specifications
• Output specifications
SpecificationsItem
Relay output Transistor output
Output type Relay contact, normally open Transistor output, current sink
Number of output points 6 points
(6 pts/common)
2 points
(2 points/common)
Rated load voltage 240Vac/24Vdc (max.) 24Vdc
Range of load voltage Max. 264Vac/125Vdc 20.0 - 28.0Vdc
Maximum load current 2A/point (resistive),
4A/common
0.5A/point (resistive)
ON resistance
50mΩ or less
(initial value)
−
Voltage drop at ON
−
0.5V or less
Leakage current at OFF None 0.1mA or less
Minimum load 5Vdc, 10mA
(50mW)
−
ON delay time 10ms or less 0.1ms or less
OFF delay time 10ms or less 0.1ms or less
Input signal display LED display for all points, lit at ON, internal logic side
External connection Removable terminal block, M3
Withstand voltage 1500Vac, 1 minute (between internal and external circuits)
Internal circuit
Ry
22
27
Internal circuit
LED
C
Vin
21
Internal circuit
LED
C
20
*1: The switching life of the relay output is as follows.
20 million times or more (mechanical)
100 thousand times or more (electrical, at maximum rated voltage and current)
