The run time set for each pattern includes the ACC/DEC time required to reach
that particular run frequency. Therefore, care must be taken when choosing
run times. For example, if the pattern run time is set for 30 seconds and the
acceleration time required to reach the preset frequency is 20 seconds, then
the actual run frequency would last only 10 seconds.
8 - 10

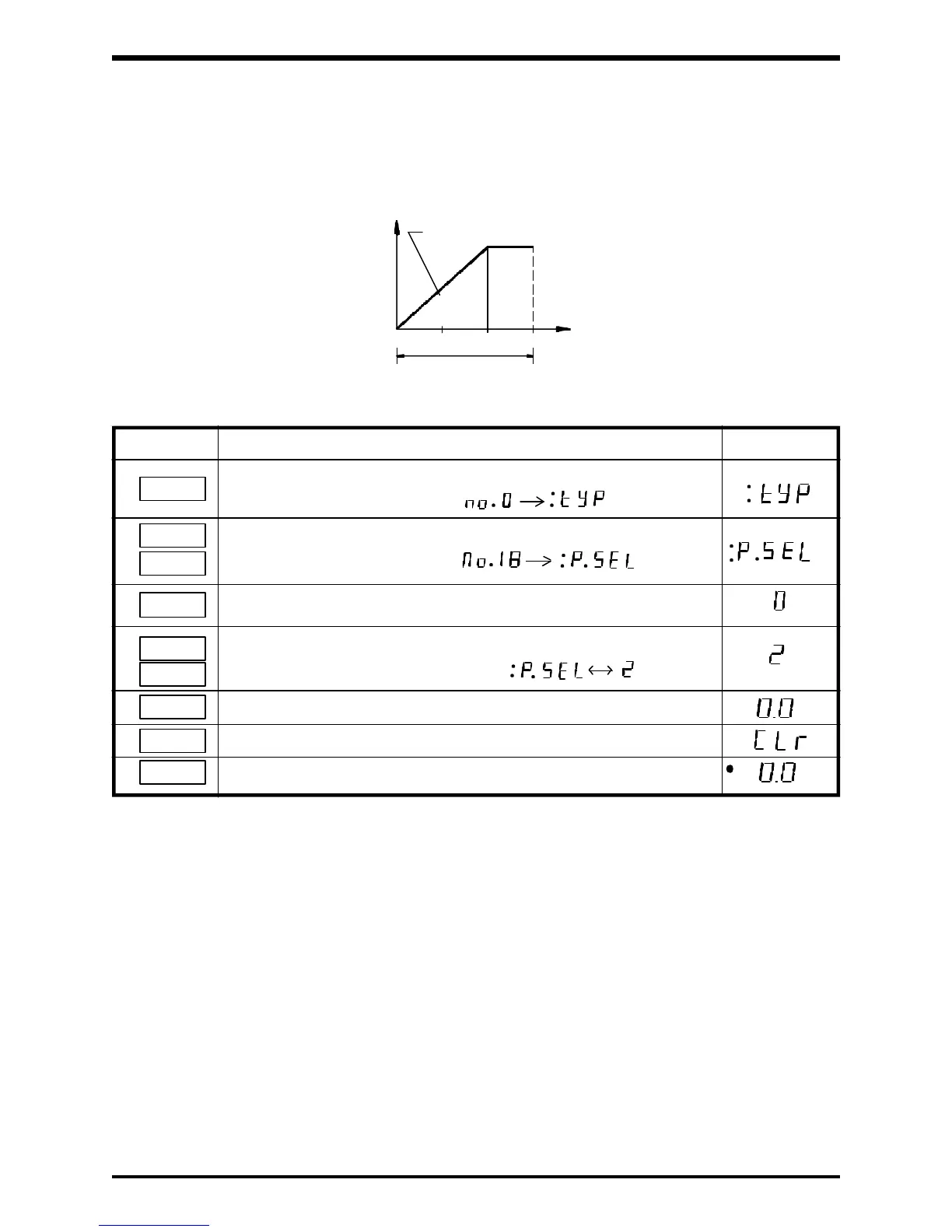

8.3.5 Pattern Run (Cont'd)
2ND
8
MON
2
WRT
MON
CLR
WRT
Resets the microprocessor.
Time
20 30
Pattern 1 (Pt.1t)
0
10
Sr1
Pattern 1 acc. (Pt.1)
READ
Output frequency
Key Action Display
The inverter must be placed in the monitor mode and stopped (0.0Hz)
before activating the pattern run.
Engages the pattern run feature.
Reads the standard factory default setting "off".
:
Writes the new touchpad operation adjustment "2" to memory.
Takes the inverter out of function setting mode.
Engages pattern run.
Activating the Pattern Run
Notes:
1.) Pressing the STOP key at any time during the pattern run will cause a deceleration to a
stop.
2.) Pressing 2ND and then STOP will cause a coast to a stop.
3.) Resuming the pattern run is accomplished by pressing RUN, however be aware that the
run proceeds from the point of interruption unless 2ND is pressed before RUN is pressed.
4.) In order to deactivate the pattern run function the above procedure should be followed in
the same order except that 0 should be stored for P.SEL at step 4.
To Next Page
