8.3.5 Pattern Run (Cont'd)
Use the following procedure to monitor a pattern run. For this example the
inverter is running in pattern 1 at 10Hz and there are 12.3 minutes remaining
in pattern 1.
NEXT
NEXT
NEXT
or
NEXT
MON
MON

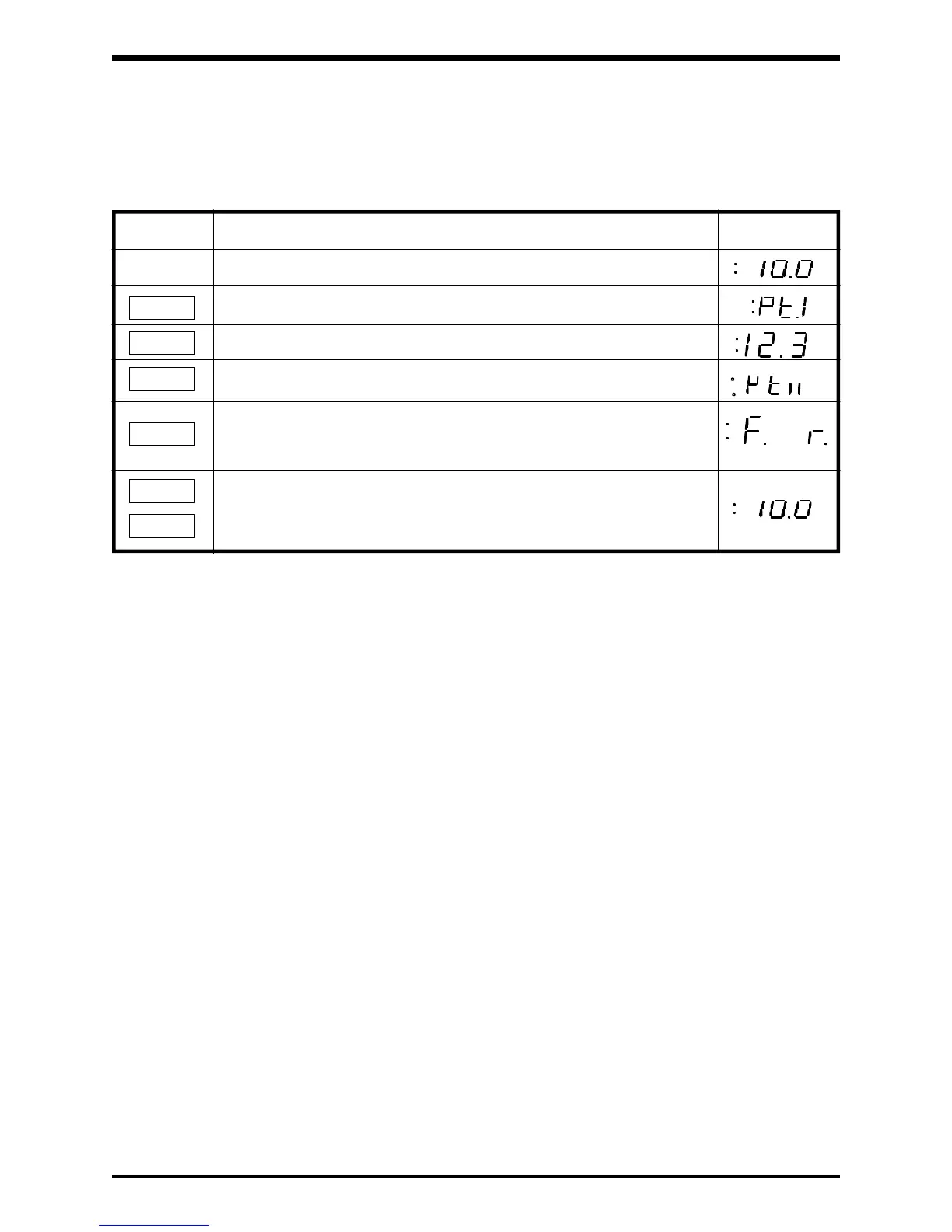

Key Action Display
A pattern run frequency is displayed
Displays current pattern number
Displays balance of time remaining in the current run pattern
Displays remaining patterns
Displays current forward/reverse status. Continued pressing of the
NEXT key provides monitoring of the inverters status information.
The items appear in the sequence listed in section 7.5.1
Returns to displaying the current patterned run frequency.
Monitoring During a Pattern Run
