Toshiba TOSVERT VF-MB1 Function Manual

E6581818
- 25 -
6.1.2. TOSHIBA drive profile
These diagrams translate as follows for the MB1/S15 system:

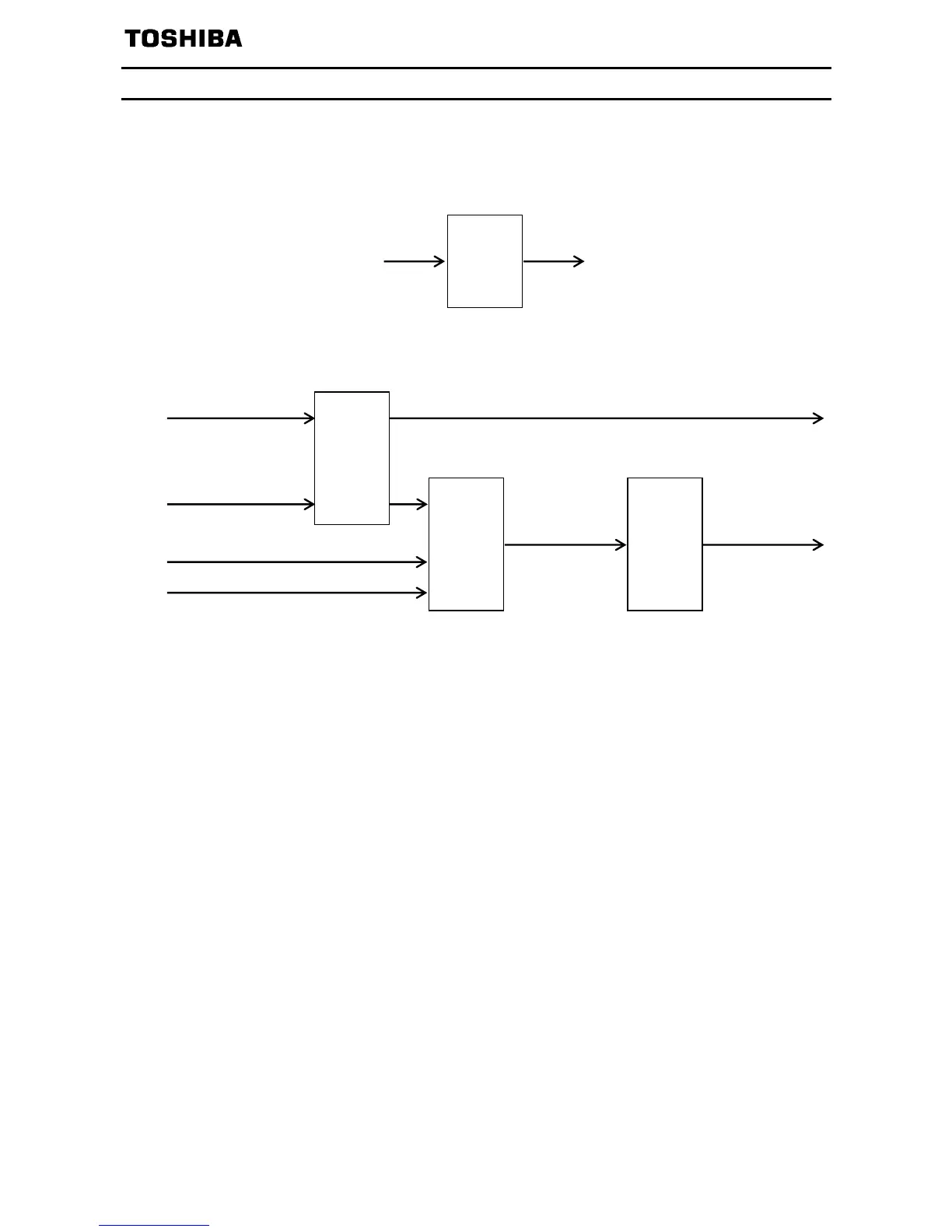

Control diagram:
Simplified diagram of speed control in “Velocity” mode:
Velocity
limit
function
Ramp
function
Velocity
Control
function
Frequency reference
(
0x2A07
)
Lower limit frequency
(ll: 0x2013)
Upper limit frequency
(ul: 0x2012)
Acceleration time 1 (acc: 0x2009)
Deceleration time 1 (dec: 0x2010)
Output frequency
(0x2D00)
Estimated speed
(0x2D16)
Inverter operating status 1 (0x2D01)
State-
machine
Communication command 1
(0x2A06)
Inverter operating status 1
(0x2D01)
