E6581818
- 38 -
8.6.
System Manager: Install the master
In this example we use the computer to run TwinCAT
®
and PLC runtime as Mater.

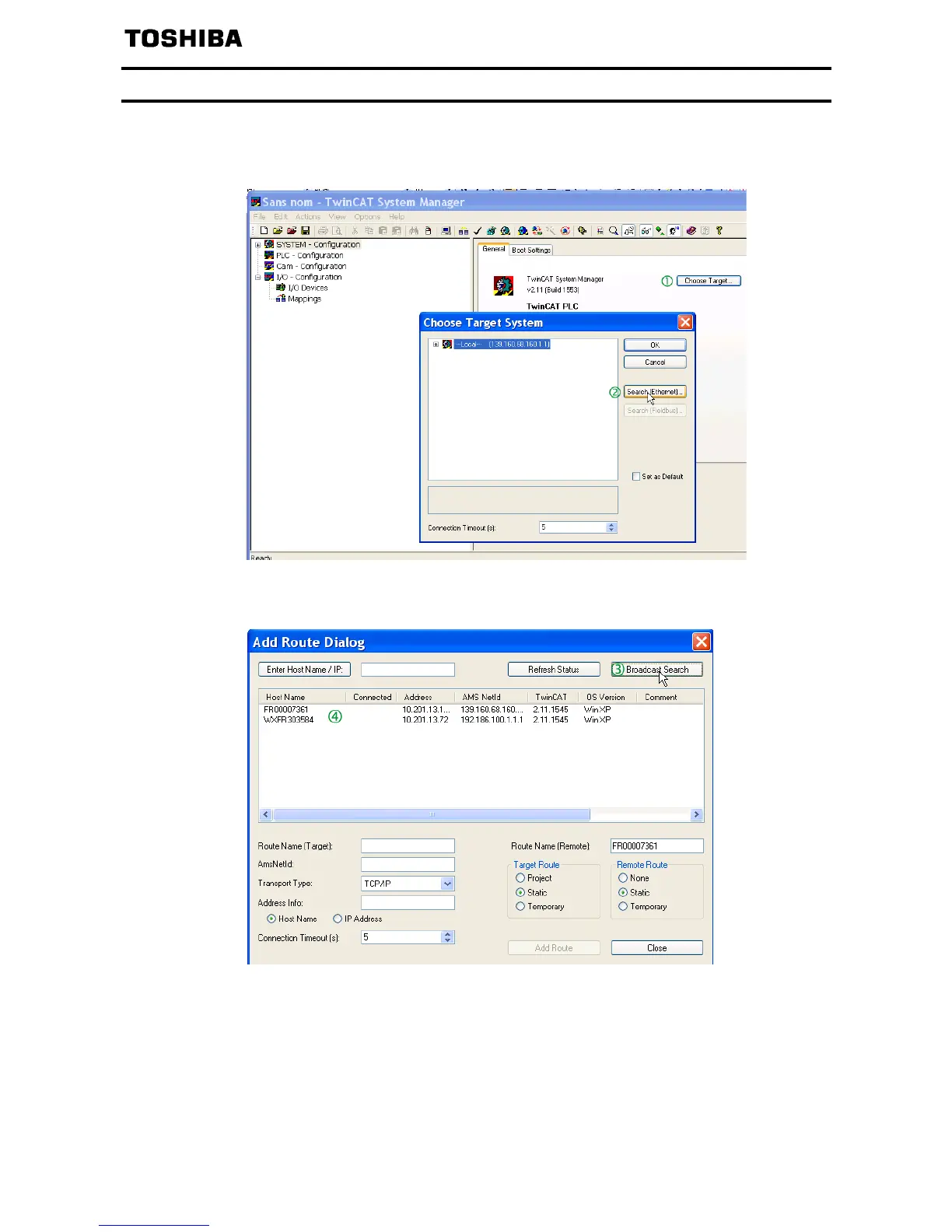

Select “Choose Target”
Select “Search (Ethernet)”
Start the “Broadcast Search”
Select your Master in the Host Name
list (your computer in this example)
