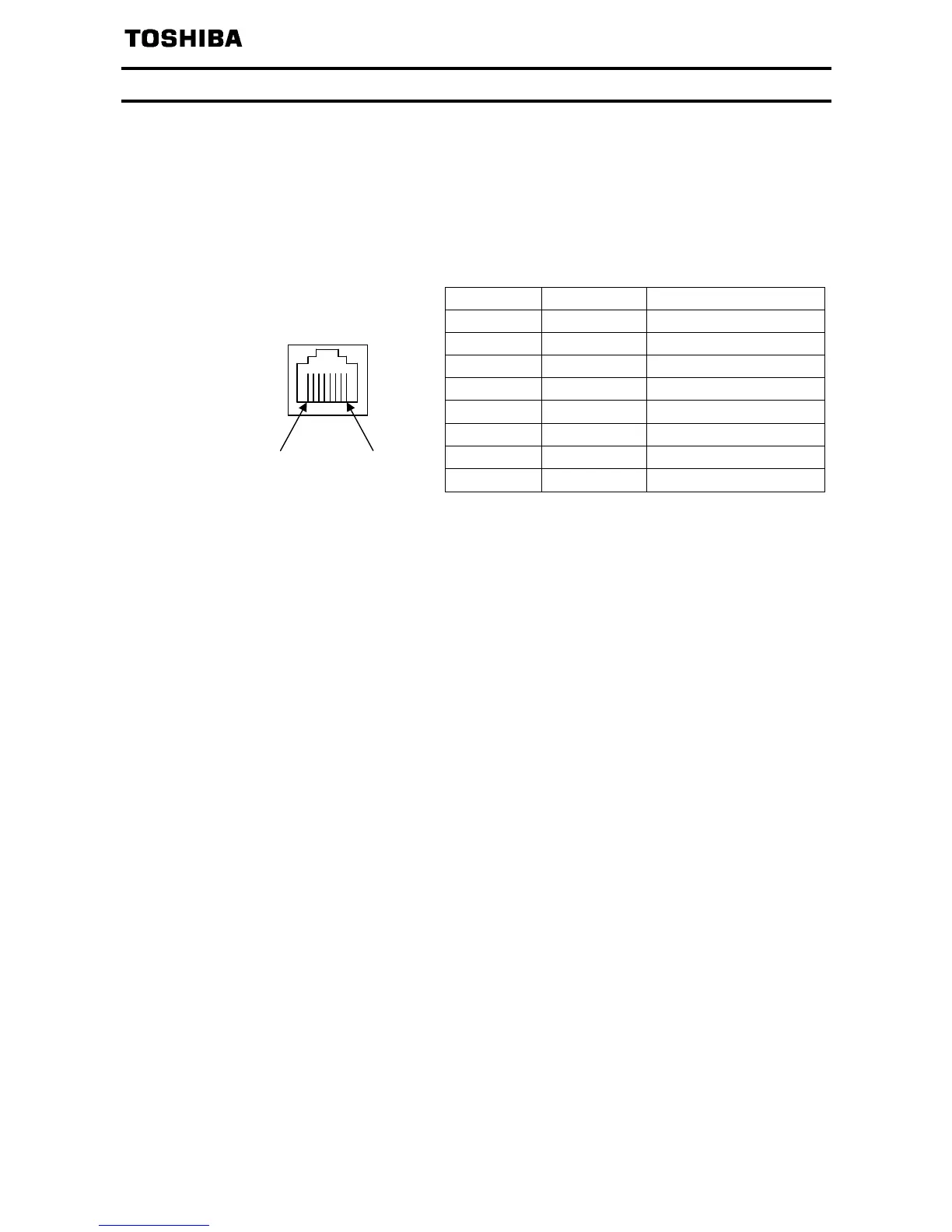

2.2. RJ45 connector pin layout
The EtherCAT
®
unit is equipped with two shielded RJ45 connectors. When you use
VF-MB1, the shielding is connected to the drive ground. When you use VF-S15, the
shielding is connected to the grounding terminal of option adapter.
Use an STP (shielded twisted pair) Ethernet cable.
The transmission speed is detected automatically by the card (10 Mbps or 100 Mbps).
The card can operate in half duplex or full duplex mode, whether connected to a hub or a
switch and regardless of the transmission speed (10 Mbps or 100 Mbps).
Pin Signal Meaning
1 TX+ Ethernet transmit line +
2 TX- Ethernet transmit line -
3 RX+ Ethernet receive line +
4 -
5 -
6 RX- Ethernet receive line -
7 -
8 -
* Fix a cable so that a communication connector may be not taken the weight of wire.
Cable specifications
• Minimum Cat 5e,
• Use equipotential bonding conductors,
• Connector RJ45, no crossover cable
• Shield: both ends grounded
• Twisted pair cable
• Cable: 8 x 0.25 mm
2
(8 x AWG 22)
• Use pre-assembled cables to reduce the wiring mistakes,
• Verify that wiring, cables and connected interfaces meet the PELV requirements.
• Maximum cable length = 100 m (328 ft)
Port IN (L/A X1 EtherCAT)
and Port OUT (X2 L/A EtherCAT)
8 1
