5.3. Required materials for assembly

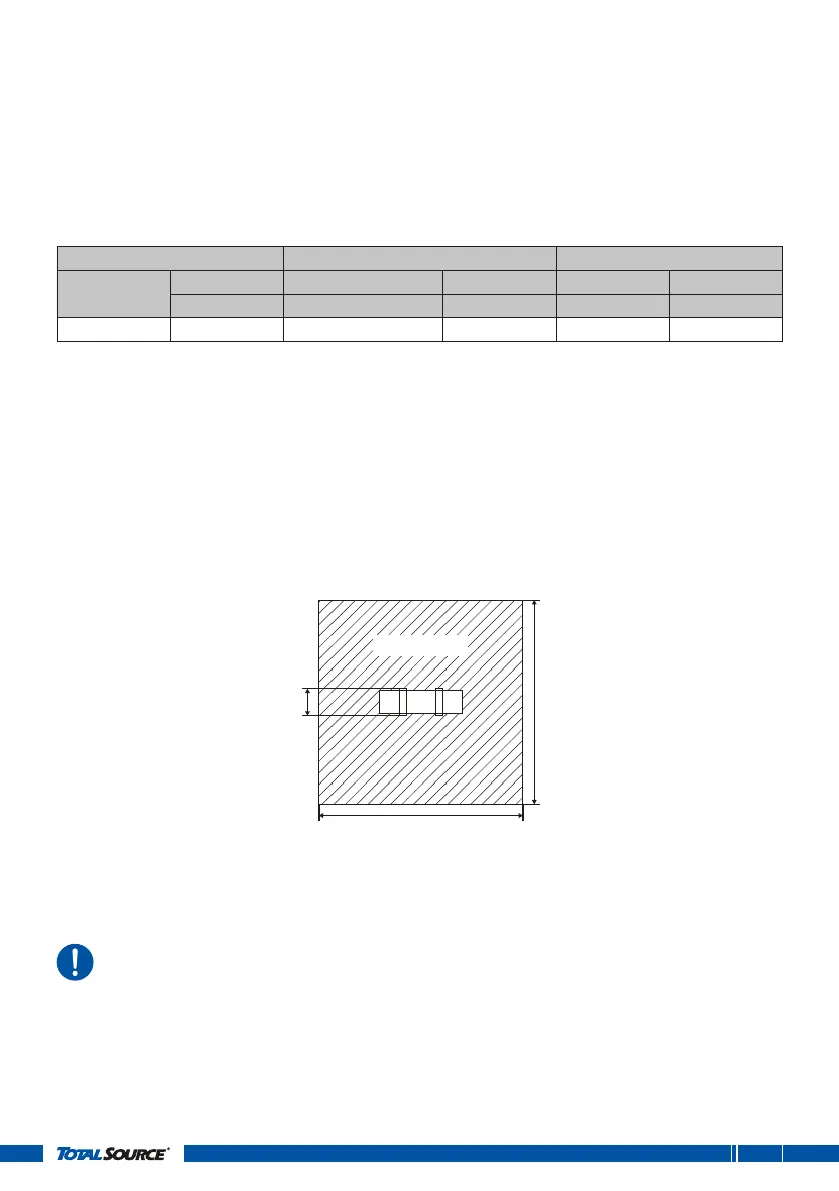

See diagram below for dimensions
• 8wedge bolts
• 8expansion plugs
• Drilling machine
• Drill bit
• Power impact tool
Wedge bolt Expansion plug Hole
Spec Length Outer diameter Length Diameter Depth
mm mm mm mm mm
M16 150 22 90 23 100
5.4. Place designation of the product
A newly delivered solid tyre press or a solid tyre press on which a new accessory has been
fitted must not be installed or put into operation until all transport securing devices and
packaging have been removed and the machine has been thoroughly inspected. If one or
more components are found to be damaged, it is necessary to immediately notify your dealer
and agree on the action to be taken.
The danger zone is the area in which people can be in danger because of the movements of
the tyre press. Only the operator of the tyre press may enter the danger zone.
The machine must be placed on a level floor that can support the weight of the solid tyre
press. The solid tyre press should be firmly anchored to the floor with 8bolts. Use the
information in chapter5.3 as a guideline.
The continuous sound pressure level of the tyre press is maximum 70dB(A). During
the operation of the solid tyre press, it is recommended to place a rubber mat on the
base plate to dampen the noise of the rim extraction.
Danger zone
4000
850
4000
