If the motor turns in the other direction, contact the technician.
PhaseL1 and phaseL2 must be swapped.
5. Activate the cylinder by pressing the DOWN button briefly.
6. Return the cylinder to its original starting position by pressing the UP button.
7. Press the STOP button to turn off the machine.
If these steps have been carried out successfully, your device is ready for use.

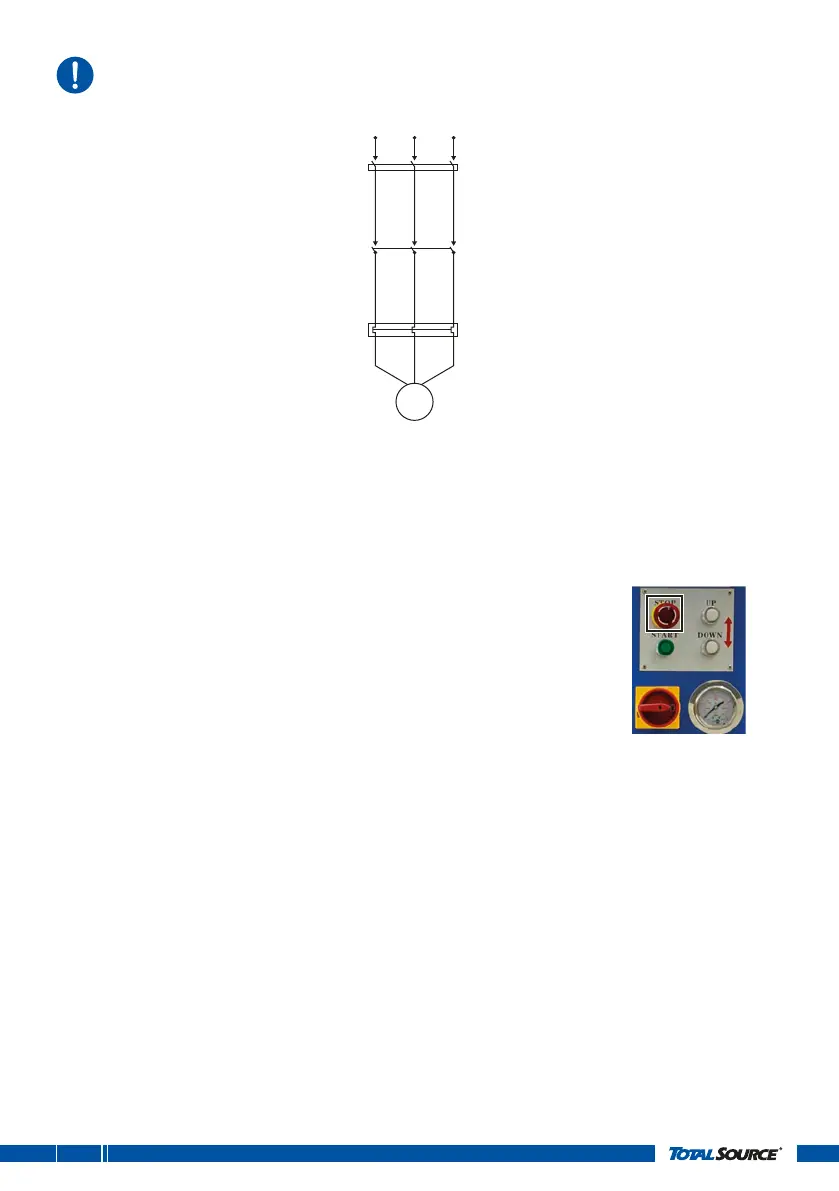

6.3. The emergency stop switch
In case of problems and danger, it is important to activate the
emergency stop switch immediately to avoid further injury or
damage.
Examples of danger can be smoke, fire, sparks, entrapment of
limbs, trapping of items of clothing, etc.
1. Press the emergency stop switch to fully switch off the machine immediately.
2. As soon as the emergency stop switch has been activated, the other buttons are
deactivated.
3. Immediately pull the plug out of the socket.
If you want to restart the device, follow the next steps.
1. Put the plug back in the socket.
2. Turn the emergency stop switch a quarter turn to the right.
3. Press the START button to start the motor. Keep pressing it until the green light is on.
4. Check whether the pressing plate moves up or down by briefly pressing the UP and
DOWN buttons.
L3
TGM
KM1
FR
L2
M3
L1
L33L22
L11
WVU
