7-997 DISPLAY

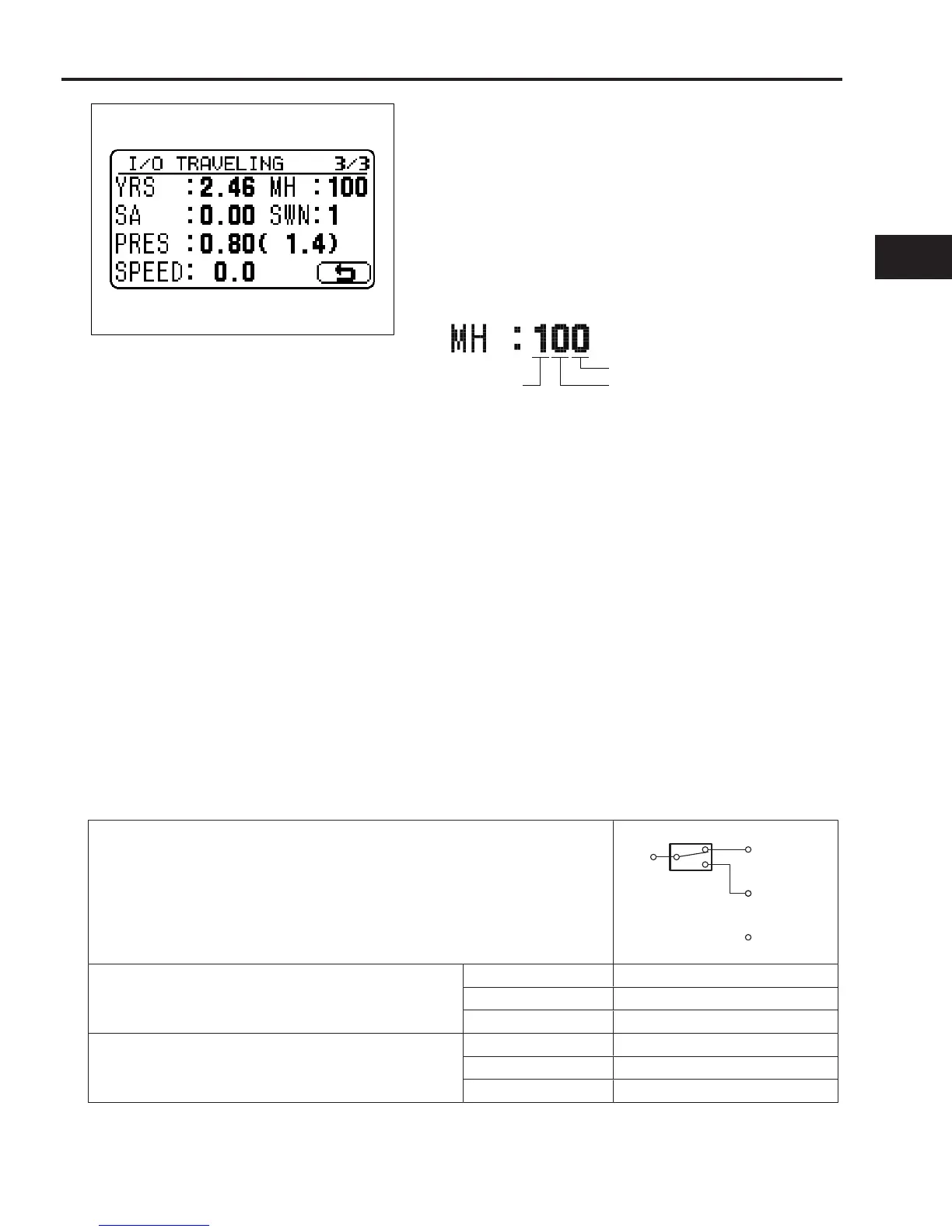

â–ª "I/O TRAVELING 3/3"
YRS: Yaw rate sensor voltage (V)
Display voltage of the yaw rate sensor.
Vehicle without rear stabilizer: Normally 0.00 V
Vehicle with rear stabilizer:
Standard when vehicle is stationary: Approx. 2.5 V
MH: Lifting height switch
1 = ON
0 = OFF
SA: (Unused)
SWN: Swing lock solenoid
Displays output signal from the controller to the swing lock
solenoid.
Vehicle without rear stabilizer:
SWN: - = Always
Vehicle with rear stabilizer:
SWN: 1 = ON Energized (swing lock released) state
SWN: 0 = OFF Non-energized (swing lock) state
PRES: Load sensor voltage, and MPa display
Displays input voltage from the load sensor to the control-
ler, and detected pressure.
Standard at no load: 0.5 to 4.5 V
Voltage increases as load increases.
SPEED: Traveling speed (km/h or mph)
Displays traveling speed.
Switch (4): To "ANALYZER MENU" screen
Lifting Height Switch (MH) ON/OFF Combination Table
Lifting height switch circuit diagram
At a low lift (less than 2200 mm (87 in)*)
MH1 1 (= ON)
MH2-1 0 (= OFF)
MH2-2 0 (= OFF)
At a medium lift (2200 mm (87 in) or more)
MH1 0 (= OFF)
MH2-1 1 (= ON)
MH2-2 0 (= OFF)
*: The height at which the lifting height switch changes will vary according to the lifting height set for the
mast.
