5-34 5 OIL CONTROL VALVE
NOTICE
Clean each part thoroughly, remove dirt with compressed air, and apply hydraulic oil before reassembly.
5.1.4.1 Point Operations

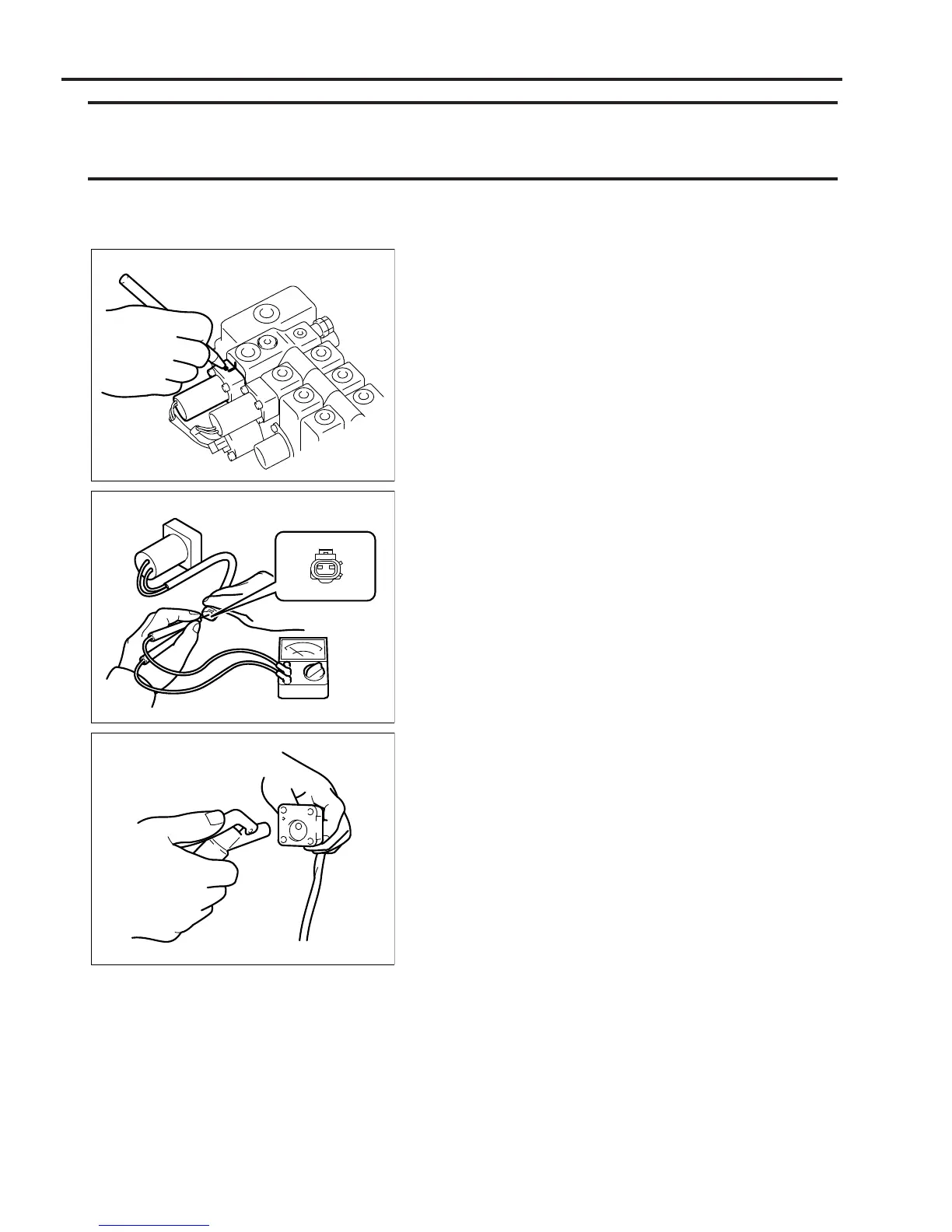

Point 2 Disassembly:
Put match marks to prevent solenoid installation in an
incorrect position.
Reassembly:
Align match marks for reassembly.
Inspection:
Check the lift lock solenoid for continuity.
(Reference)
Resistance: 9.4 to 10.4 Ω (at 20 °C)
Inspection:
Check and clean any clogged filter.
Reassembly:
Carefully reassemble to prevent incorrect installation
of each solenoid spool, etc.
To Next Page
