7-937 DISPLAY

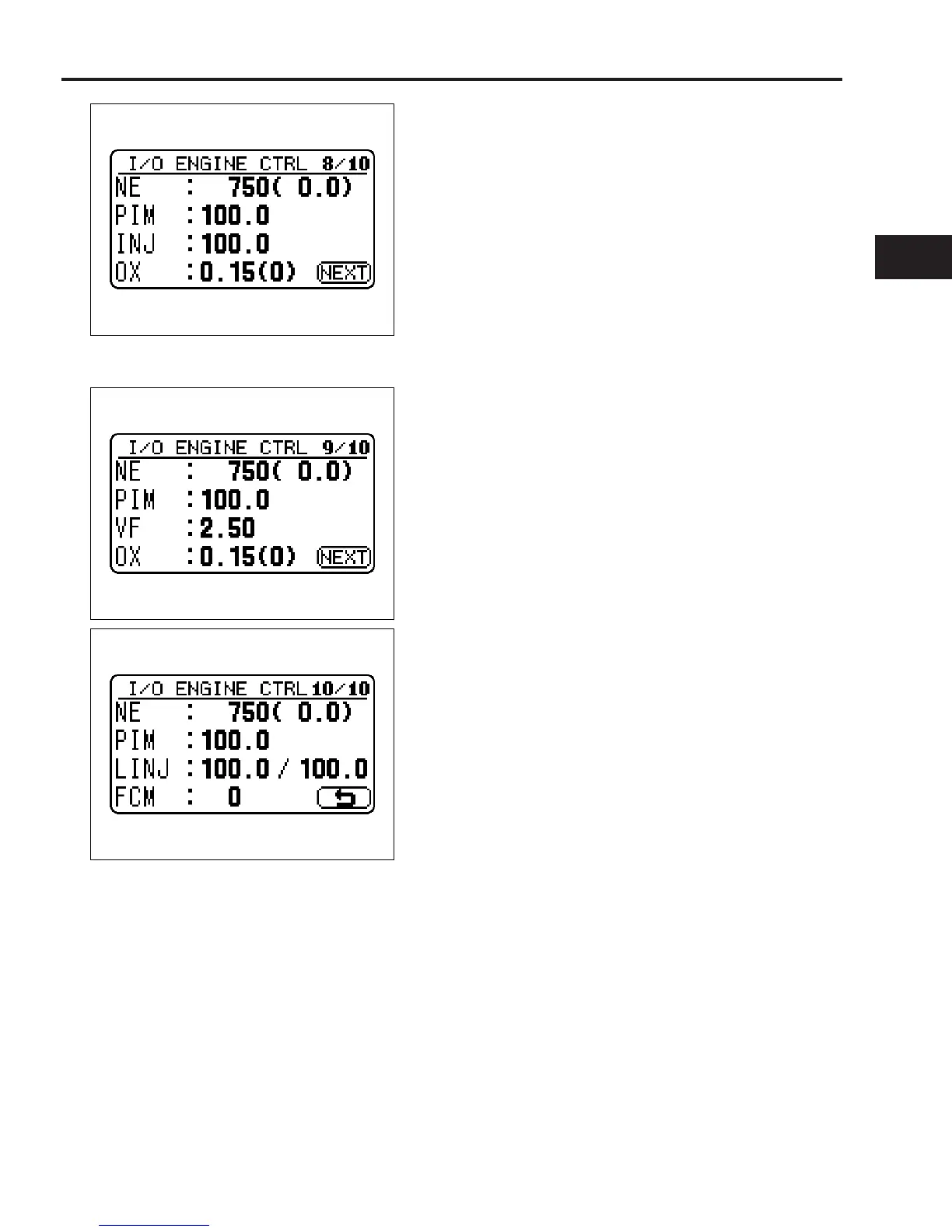

▪ "I/O ENGINE CTRL 8/10"
NE: Engine speed (refer to "I/O ENGINE CTRL 6/10")
PIM: Intake pipe negative pressure sensor voltage, Intake
manifold pressure (refer to "I/O ENGINE CTRL 3/10")
INJ: Injector correction value (gasoline)
Displays correction value of the fuel injection amount.
OX: O
2
sensor voltage (O
2
sensor monitor)
Displays voltage of O
2
sensor (O
2
sensor monitor).
O
2
sensor voltage standard: 0 to 1.0 V
O
2
sensor monitor
1: rich
0: lean
Switch (4): To "I/O ENGINE CTRL 9/10" screen
▪ "I/O ENGINE CTRL 9/10"
NE: Engine speed (refer to "I/O ENGINE CTRL 6/10")
PIM: Intake pipe negative pressure sensor voltage, Intake
manifold pressure (refer to "I/O ENGINE CTRL 3/10")
VF: VF voltage (LPG/CNG)
Displays the voltage (V) output from VF terminal.
Standard: 2.0 to 3.0 V
OX: O
2
sensor voltage (O
2
sensor monitor) (refer to "I/O
ENGINE CTRL 8/10")
Switch (4): To "I/O ENGINE CTRL 10/10" screen
▪ "I/O ENGINE CTRL 10/10"
NE: Engine speed (refer to "I/O ENGINE CTRL 6/10")
PIM: Intake pipe negative pressure sensor voltage, Intake
manifold pressure (refer to "I/O ENGINE CTRL 3/10")
LINJ: Injector correction value (LPG/CNG)
Displays correction value of the fuel injection amount.
FCM: Fuel control module correction value (LPG/CNG)
Displays correction value of the air-fuel ratio motor opening
angle.
Switch (4): To "ANALYZER MENU" screen
