32

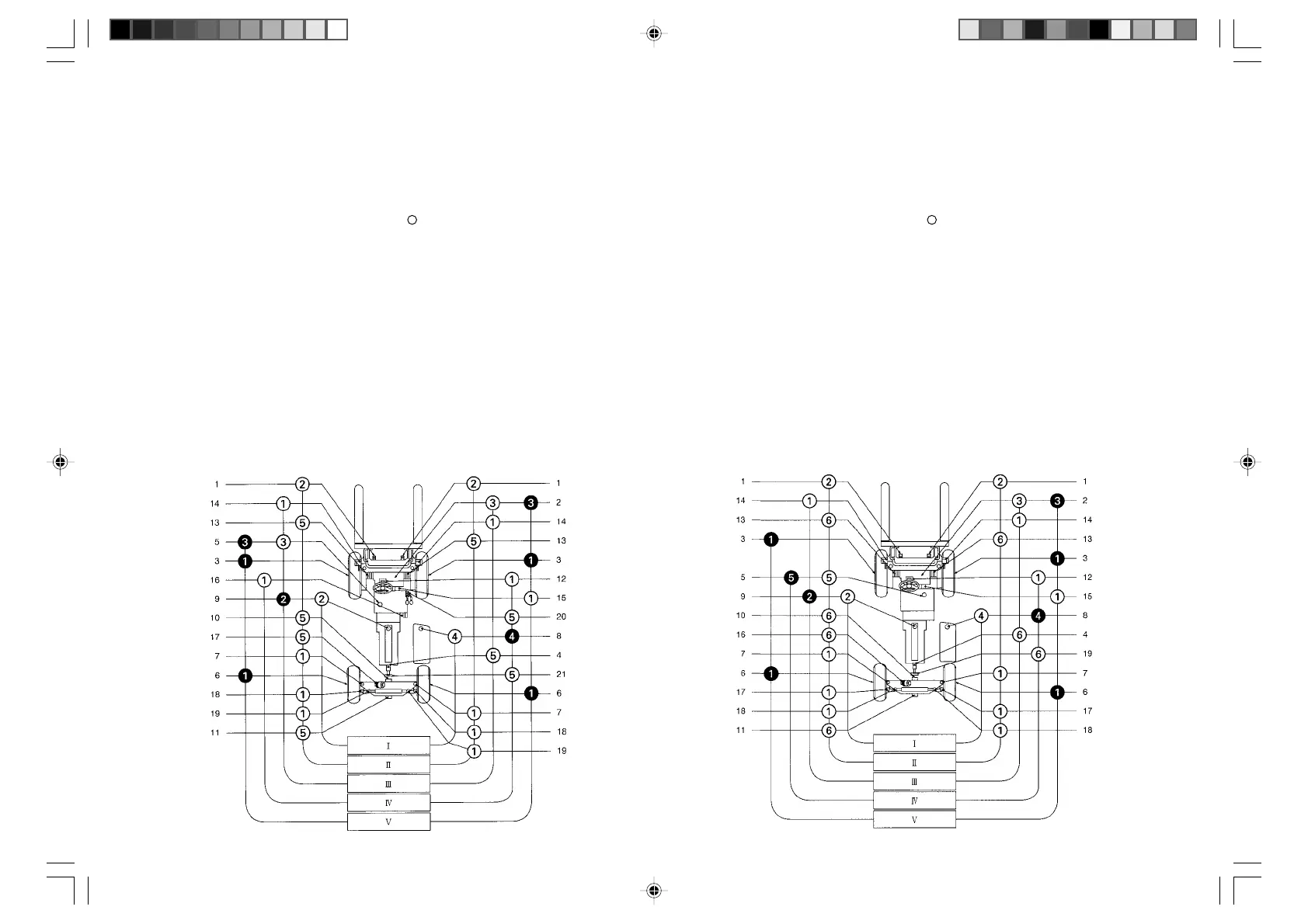

LUBRICATION CHART
Clutch models
1. Chain
2. Differential gear
3. Front wheel bearing
4. Oil pump drive shaft
5. Transmission case
6. Rear wheel bearing
7. Steering knuckle king pin
8. Oil tank
9. Engine crank case
10. Rear axle beam front pin
11. Rear axle beam rear pin
12. Tilt steering locking mechanism
13. Mast support bushing
14. Tilt cylinder front pin
15. Propeller shaft
16. Gear shift link
17. Swing lock cylinder lower pin
18. Tie rod end pin
19. Rear axle cylinder end pin
20. Gear shift lever
21. Oil pump spline shaft
I. Inspect every 8 hours (daily)
II. Inspect every 40 hours (weekly)
III. Inspect every 250 hours (6 weeks)
IV. Inspect every 1000 hours (6 monthly)
V. Inspect every 2000 hours (annually)
Inspect and service
● Replace
q MP grease
w Engine oil
e Hypoid gear oil
r Hydraulic oil
t Molybdenum disulfide grease
Note: In case of the hard operating condition,
the service interval of 170 hours or 1 month may
be recommendable.
Torque converter models
1. Chain
2. Differential gear
3. Front wheel bearing
4. Oil pump drive shaft
5. Torque converter case
6. Rear wheel bearing
7. Steering knuckle king pin
8. Oil tank
9. Engine crank case
10. Rear axle beam front pin
11. Rear axle beam rear pin
12. Tilt steering locking mechanism
13. Mast support bushing
14. Tilt cylinder front pin
15. Propeller shaft
16. Swing lock cylinder lower pin
17. Tie rod end pin
18. Rear axle cylinder end pin
19. Oil pump spline shaft
I. Inspect every 8 hours (daily)
II. Inspect every 40 hours (weekly)
III. Inspect every 250 hours (6 weeks)
IV. Inspect every 1000 hours (6 monthly)
V. Inspect every 2000 hours (annually)
Inspect and service
● Replace
q MP grease
w Engine oil
e Hypoid gear oil
r Hydraulic oil
t Automatic transmission fluid
y Molybdenum disulfide grease
Note: In case of the hard operating condition,
the service interval of 170 hours or 1 month may
be recommendable.
