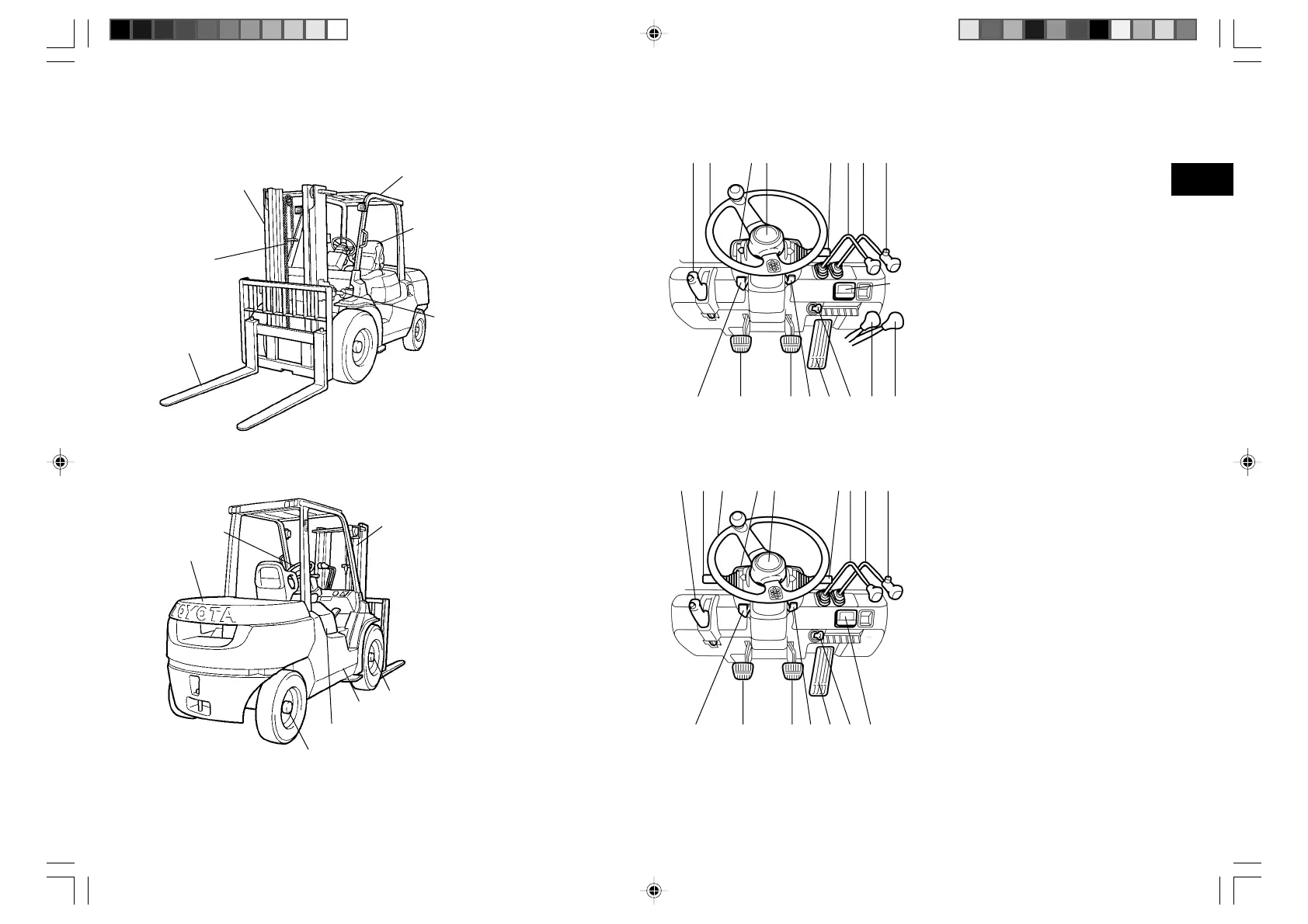

MAIN COMPONENTS
1. Mast
2. Chain
3. Fork
4. Tilt cylinder
5. Operator’s seat
6. Head guard
7. Lift cylinder
8. Steering wheel
9. Counter weight
10. Rear axle
11. Engine hood
12. Frame
13. Front axle
Clutch Models
1. Parking brake lever
2. Steering wheel
3. Integrated monitoring center
4. Horn button
5. Turn signal and light control switch (Option)
6. Lift lever
7. Tilt lever
8. Tilt lever knob switch (SAS models)
9. Gear shift lever (Forward-reverse)
10. Gear shift lever (High-low speed)
11. Accelerator pedal
12. Ignition switch
13. Brake pedal
14. Clutch pedal
15. Tilt steering adjust lever
16. Engine hood lock release lever
17. DPF display (Option)
DRIVING CONTROLS AND INSTRUMENT PANEL
Torque converter Models
1. Parking brake lever
2. Control lever
3. Steering wheel
4. Integrated monitoring center
5. Horn button
6. Turn signal and light control switch (Option)
7. Lift lever
8. Tilt lever
9. Tilt lever knob switch (SAS models)
10. Ignition switch
11. Accelerator pedal
12. Brake pedal
13. Inching and brake pedal
14. Tilt steering adjust lever
15. Engine hood lock release lever
16. DPF display (Option)
