LPG DEVICE (OPTION)

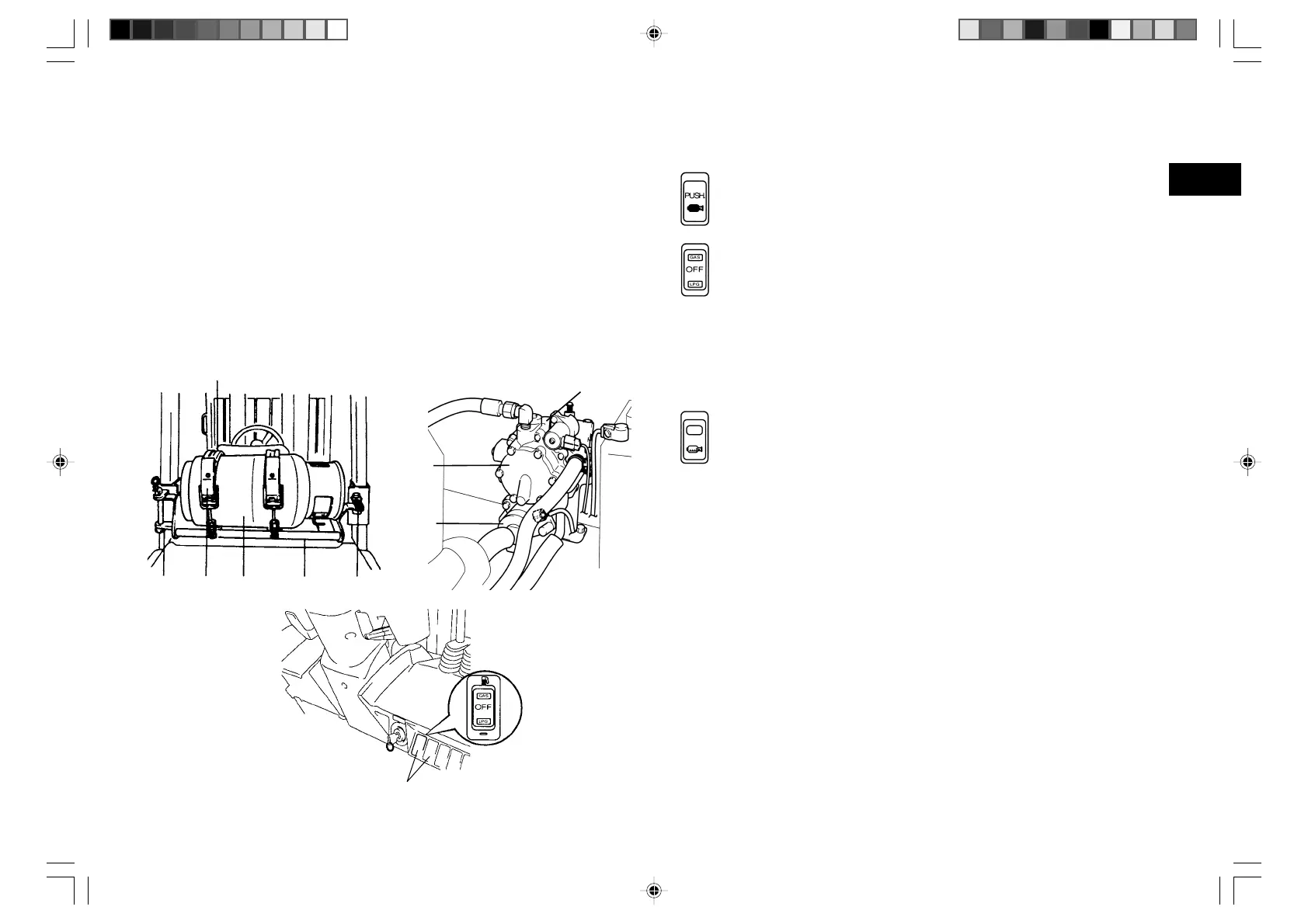

NAMES OF LPG DEVICE COMPONENTS
1. Tank band
2. Tank clamp
3. LPG tank
4. Tank bracket support
5. Tank bracket
6. Tank bracket stopper
7. LPG switch
8. Filter
9. Solenoid valve
10. Regulator
1
423 5 6
7
SWITCHES
Fuel Switch
Fuel injection switch (LPG models)
Use this switch to start up an LPG-fueled engine.
With the engine switch ON, make certain that the fuel feeder switch is positioned at ON
(with lamp ON). Then, press this switch for 2 or 3 seconds.
Fuel switch (gasoline/LPG models)
This is a switch to turn on and off the LPG or gasoline fuel feeder.
OFF ..... horizontal position
Engine cannot be started up since no fuel is fed.
LPG .... low position
LPG fuel is fed while lamp comes on.
GAS .... upper position
Gasoline fuel is fed while lamp comes on.
Note: With the engine switch OFF, no fuel will be fed even if the fuel switch is positioned at
LPG or GAS.
LPG remainder alarm (Option)
Once LPG has decreased to a certain level, this lamp will come on while the buzzer will
sound, thereby informing the operator. While the buzzer is sounding with the lamp ON,
press the switch and the buzzer will stop sounding. The lamp, however, will continue being
illuminated.
Note: Once the lamp has come on, replenish the fuel.
