Target”, and then you can view and set a Target
list in the screen as shown in
Figure 5-74. The target list is necessary for the Access Control Rule.

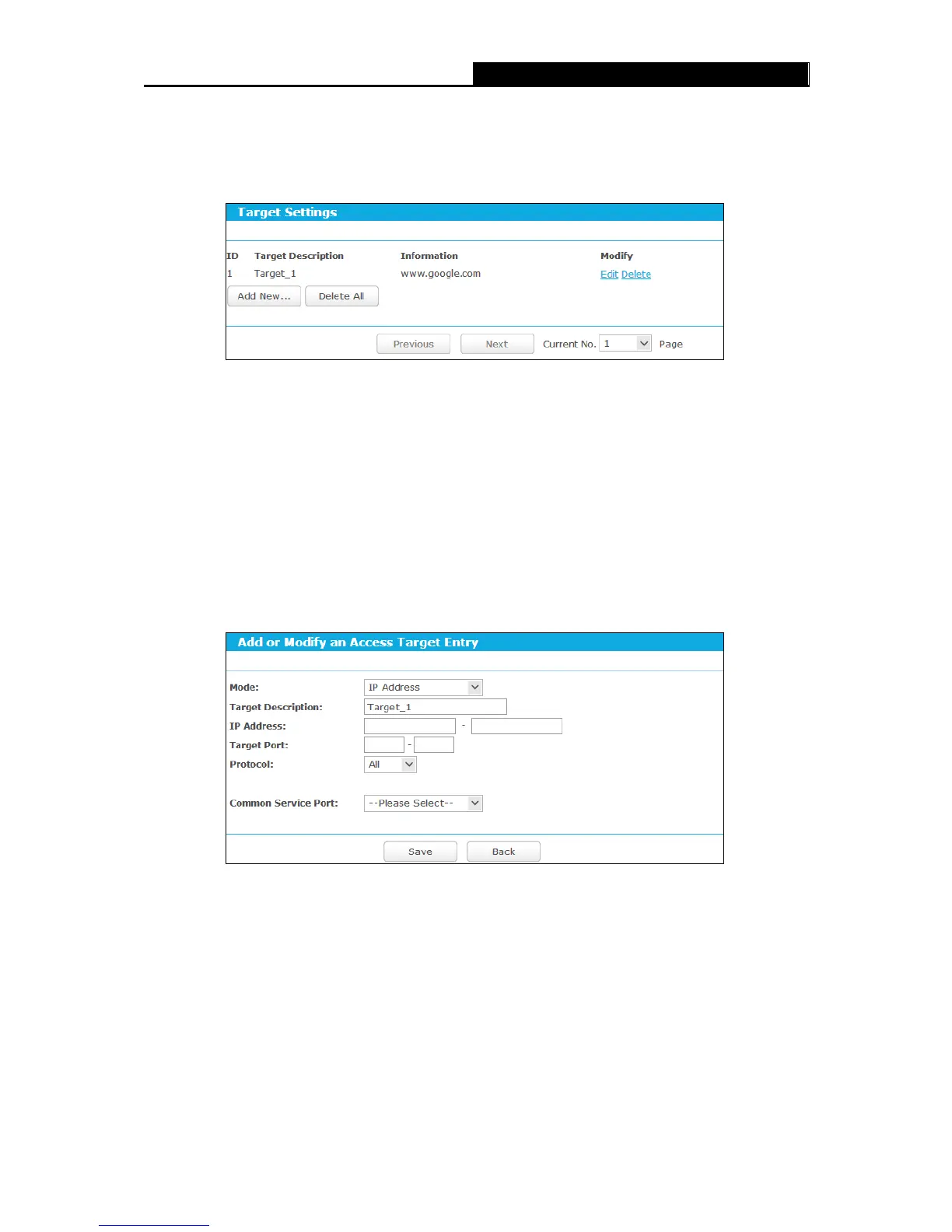

Figure 5-74 Target Settings
Target Description - Displays the description about the target and this description is unique.
Information - The target can be IP address, port, or domain name.
Modify - To modify or delete an existing entry.
To add a new entry, please follow the steps below.
1. Click the Add New… button.
2. In Mode field, select IP Address or Domain Name.
3. If you select IP Address, the screen is shown as Figure 5-75.
Figure 5-75 Add or Modify an Access Target Entry
1) In Target Description field, create a unique description for the target, e.g. Target_1.
2) In IP Address field, enter the IP address of the target.
3) Select a common service from Common Service Port drop-down list, so that the Target
Port will be automatically filled. If the Common Service Port drop-down list doesn’t
have the service you want, specify the Target Port manually.
4) In Protocol field, select TCP, UDP, ICMP or ALL from the drop-down list.
4. If you select Domain Name, the screen is shown as Figure 5-76.
