TP-Link AC1750 User Manual

Archer C8
AC1750 Wireless Dual Band Gigabit Router
- 103 -
5.18.2 IPv6 Setup

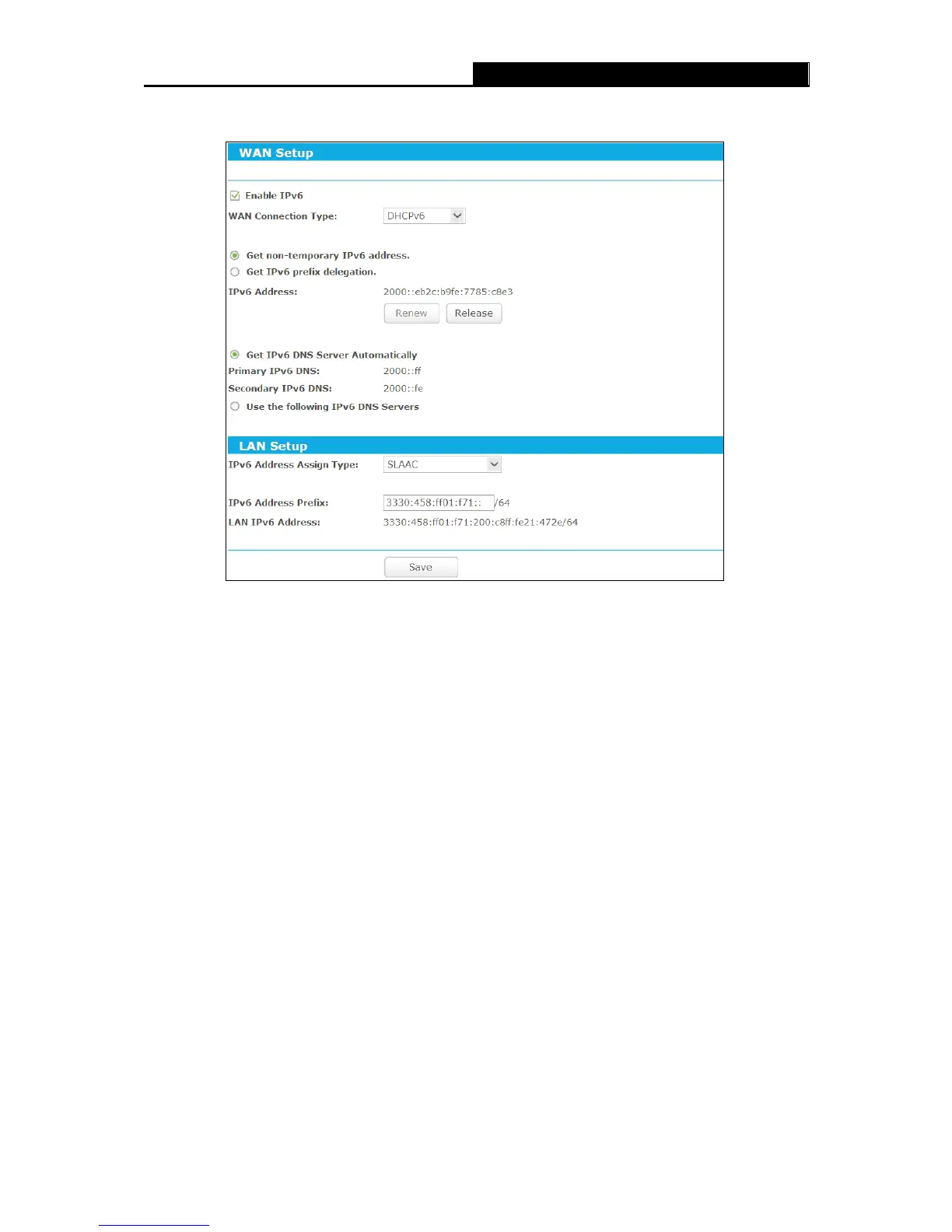

Figure 5-97 Enable/Disable IPv6
 Enable IPv6 - Tick the checkbox to enable the IPv6 function. It’s enabled by default.
 WAN Connection Type - Choose the correct WAN connection type based on your ISP
network topology.
• DHCPv6 - Connections which use dynamic IPv6 address assignment.
• Static IPv6 - Connections which use static IPv6 address assignment.
• PPPoEv6 - Connections which use PPPoEV6 that requires a user name and password.
• Tunnel 6to4 - Connections which use 6to4 address assignment.
Different types of WAN connection require you to do different settings. Below are the detailed
explanations for the respective type.

TP-Link AC1750 Specifications

General

Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Internal	Yes
Certification	CE, FCC
Modulation	16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	1300 Mbit/s
WLAN data transfer rates supported	11, 54, 450, 1300 Mbit/s
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	RoHS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	120.8 mm
Width	115.2 mm
Height	21.5 mm
