TP-Link AC1750 - Appendix B: PC Configuration Guide; TCPIP Component Installation

Archer C8
AC1750 Wireless Dual Band Gigabit Router
- 127 -
Appendix B: Configuring the PC
In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP.
First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed.
1. Install TCP/IP component
1) On the Windows taskbar, click the Start button, point to Settings, and then click Control
Panel.
2) Click the Network and Internet Connections icon, and then click on the Network
Connections tab in the appearing window.

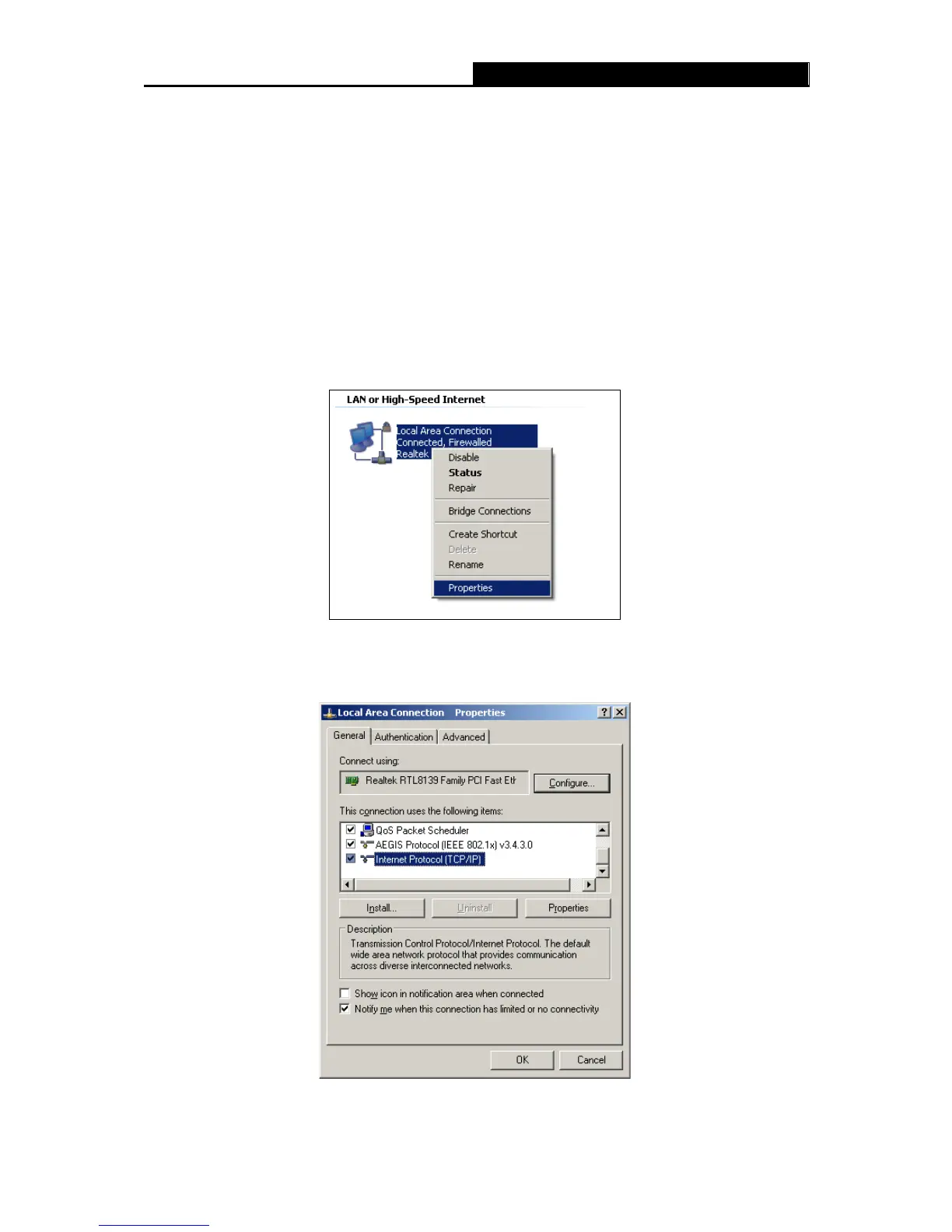

3) Right click the icon that showed below, select Properties on the prompt page.
Figure B-1
4) In the prompt page that showed below, double click on the Internet Protocol (TCP/IP).
Figure B-2
