TP-Link AC1750 - Page 27

Archer C8
AC1750 Wireless Dual Band Gigabit Router
- 16 -

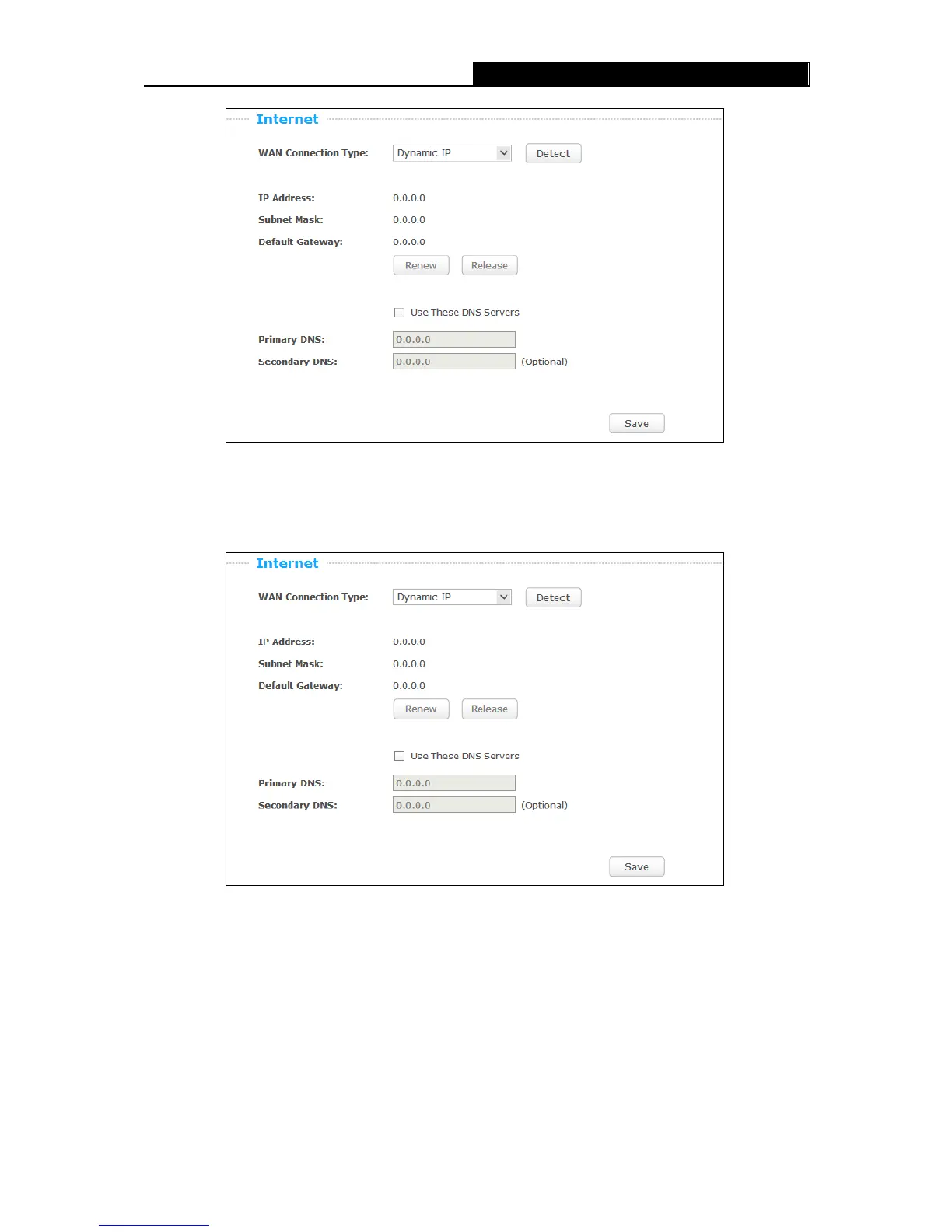

Figure 4-2 Internet
1. If your ISP provides the DHCP service, please choose Dynamic IP type, and the router will
automatically get IP parameters from your ISP. You can see the page as shown below.
Figure 4-3 Dynamic IP
 IP Address - Assigned dynamically by your ISP.
 Subnet Mask - Assigned dynamically by your ISP.
 Default Gateway - Assigned dynamically by your ISP.
Click the Renew button to renew the IP parameters from your ISP. Click the Release button to
release the IP parameters.
