7
2
Status
2.1 System Status
Choose the menu Status > System Status > System Status to load the following page.

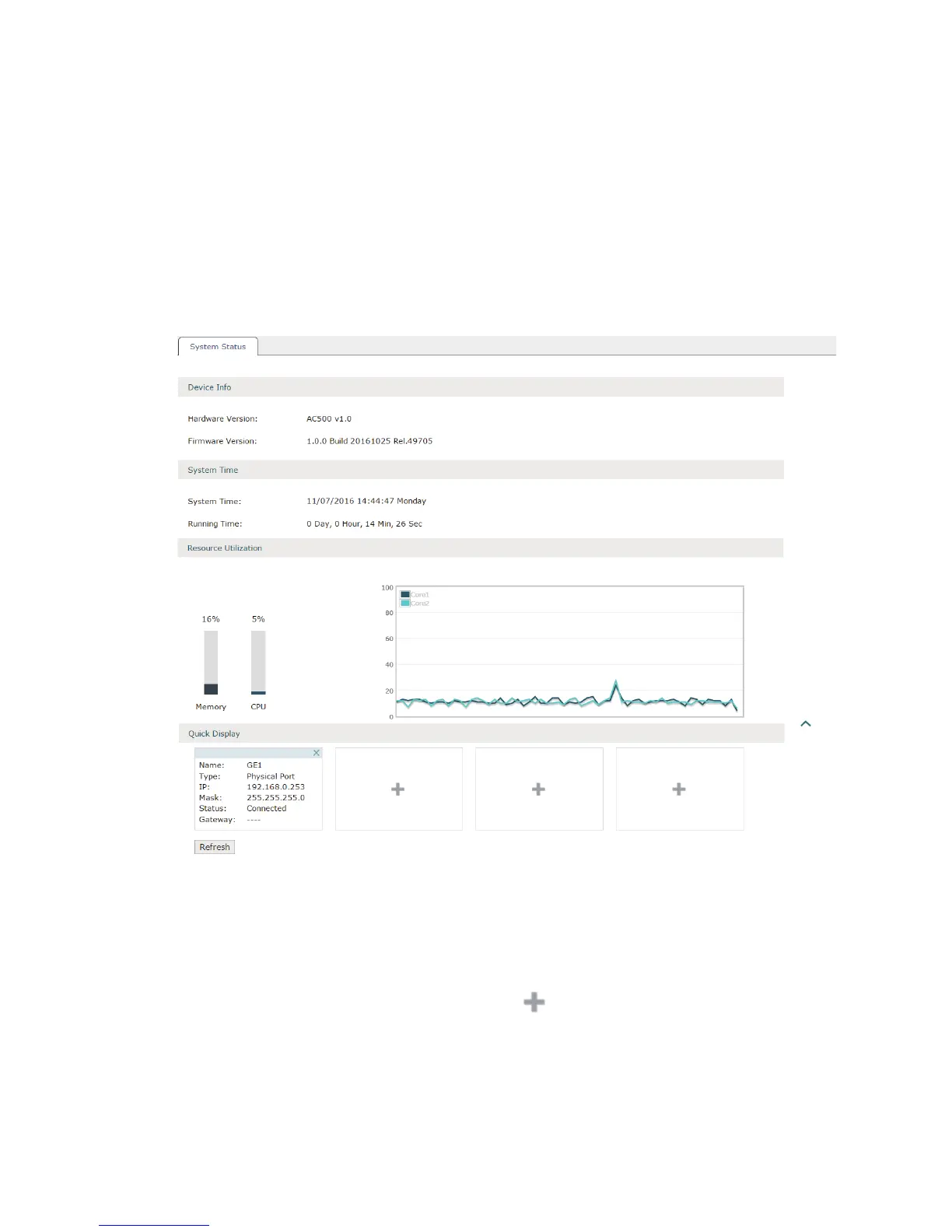

Figure 2-1 System Status
In the Resource Utilization section, you can monitor the utilization of the memory and
CPU. It is recommended that the CPU utilization should be no more than 50%. The CPU
utilization above 85% indicates that the AC is under a high load and above 95% means AC
is completely loaded. When the CPU utilization keeps at high loads, some functions of the
AC may be abnormal. Please check to find the real reason.
In the Quick Display section, click the button
to select the desired interface and its
basic information such as interface name, type and IP address will be shown in this section.
