47
Chapter 8
QoS
Transparent (Keep the default value), Re-mark.
2) Click Save.

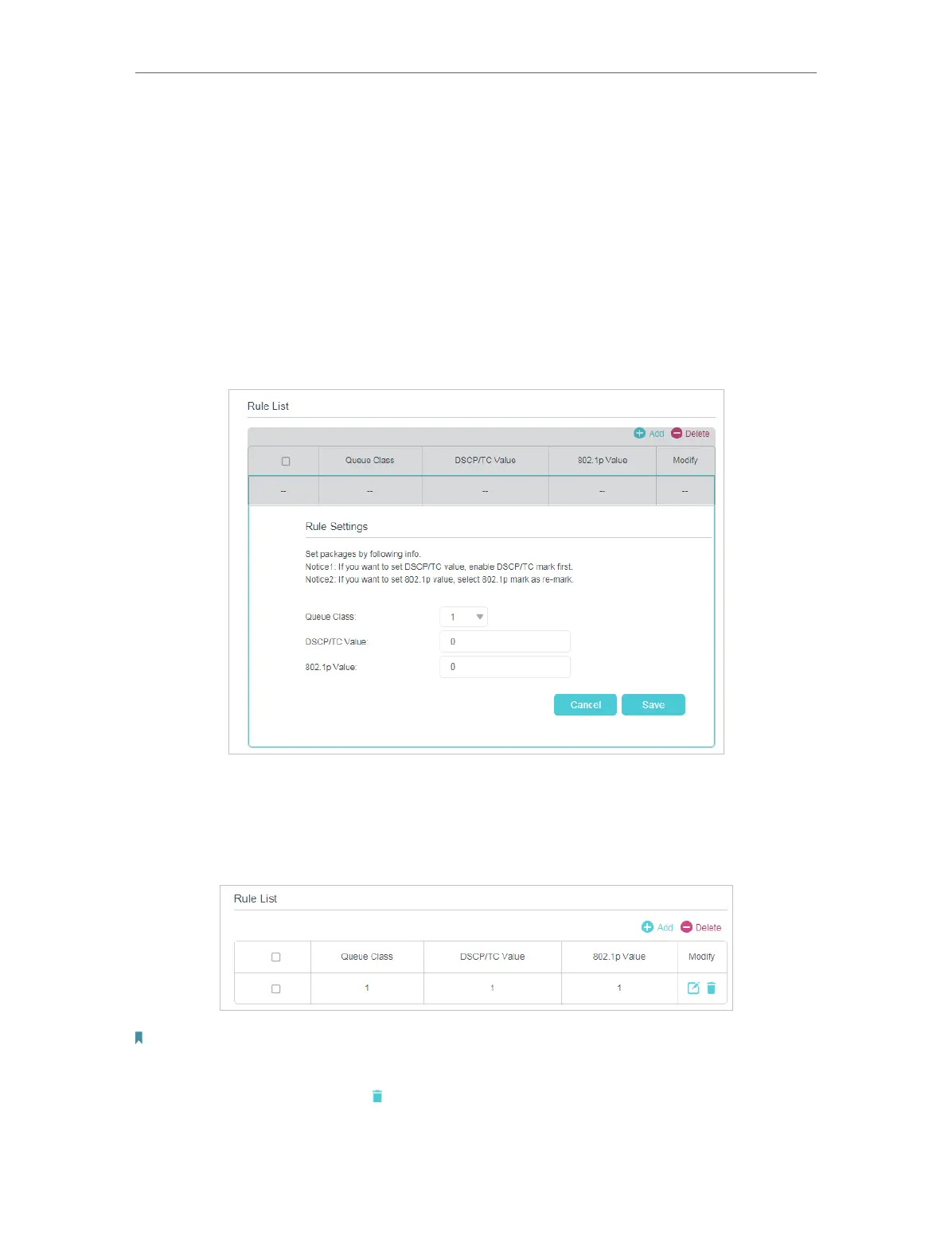

8. 2. Rule List
8. 2. 1. Rule Settings
Add rules for data classification .
1. Click Add, you can set package by following info.
2. Select a Queue Class enabled in Queue Settings.
3. Enter DSCP/TC Value and 801p Value for this rule.
4. Click Save, you can see a new rule in the list.
Note:
1. If you want to set DSCP/TC value and 802.1p value, you need to enable DSCP/TC mark and select 802.1p mark as
re-mark.
2. If you want to delete a QoS rule, click to remove the responding rule from the list.
Now for the packages in Queue Class 1, the DSCP/TC Value will be set to 1, and 802.p
Value will be set to 1.
