11.4.6 RP Info
Choose the menu Multicast Routing→PIM SM→RP Info to load the following page.

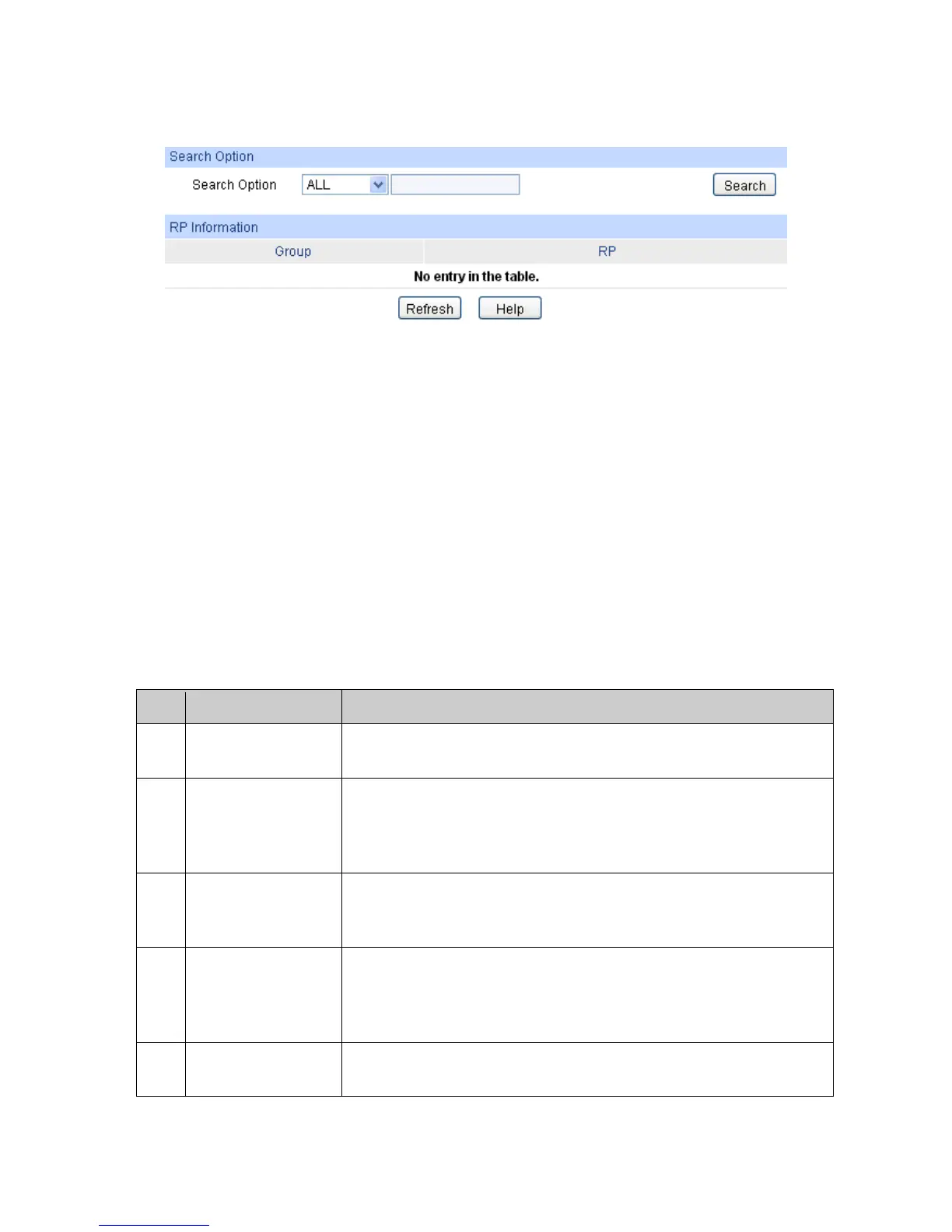

Figure 11-25 RP Info
The following entries are displayed on this screen:
Search Option
Search Option:
ALL: Select All to display all entries.
Group: Select Group and enter th
: Select RP and enter the RP IP address of desired
RP Information
Group: Displays the group address.
RP: Displays the RP address.
Configuration Procedure for PIM SM:
Step Operation Description
1 Configure interface. Required. Configure IP addresses and subnet masks of routing
interfaces on Routing→ Interface→Interface Config page.
2 Configure routing
protocol.
Required.
Configure the routing entries via static route or dynamic
routing protocol like OSPF, an
d make sure all the switches can
communicate with each other and update the routing information
through a unicast routing protocol dynamically.
3 Enable multicast
routing and PIM SM.
Required. Enable multicast routing on Multicast Routing→Global
Config page. Enable PIM SM on routing interfaces on Multicast
Routing→PIM SM→PIM SM Interface page.
4 Configure static RP
or configure
candidate BSR and
candidate RP.
Required. Configure static RP or configure a specified routing
interface as candidate RP on Multicast Routing→PIM SM→RP
page. Configure a specified routing interface
Multicast Routing→PIM SM→BSR page.
5 Enable IGMP. Required. Enable IGMP on the routing interfaces which connect to the
receivers on Multicast Routing→IGMP→Interface Config page.
