TP-Link Omada OC200 User Manual

109
5 ) Congure the authentication page. Specify the title and the term of use. To access
the internet, guests need to enter the correct password in the Password field,
accept the Term of Use, and click the Login button.
3. Click Save.

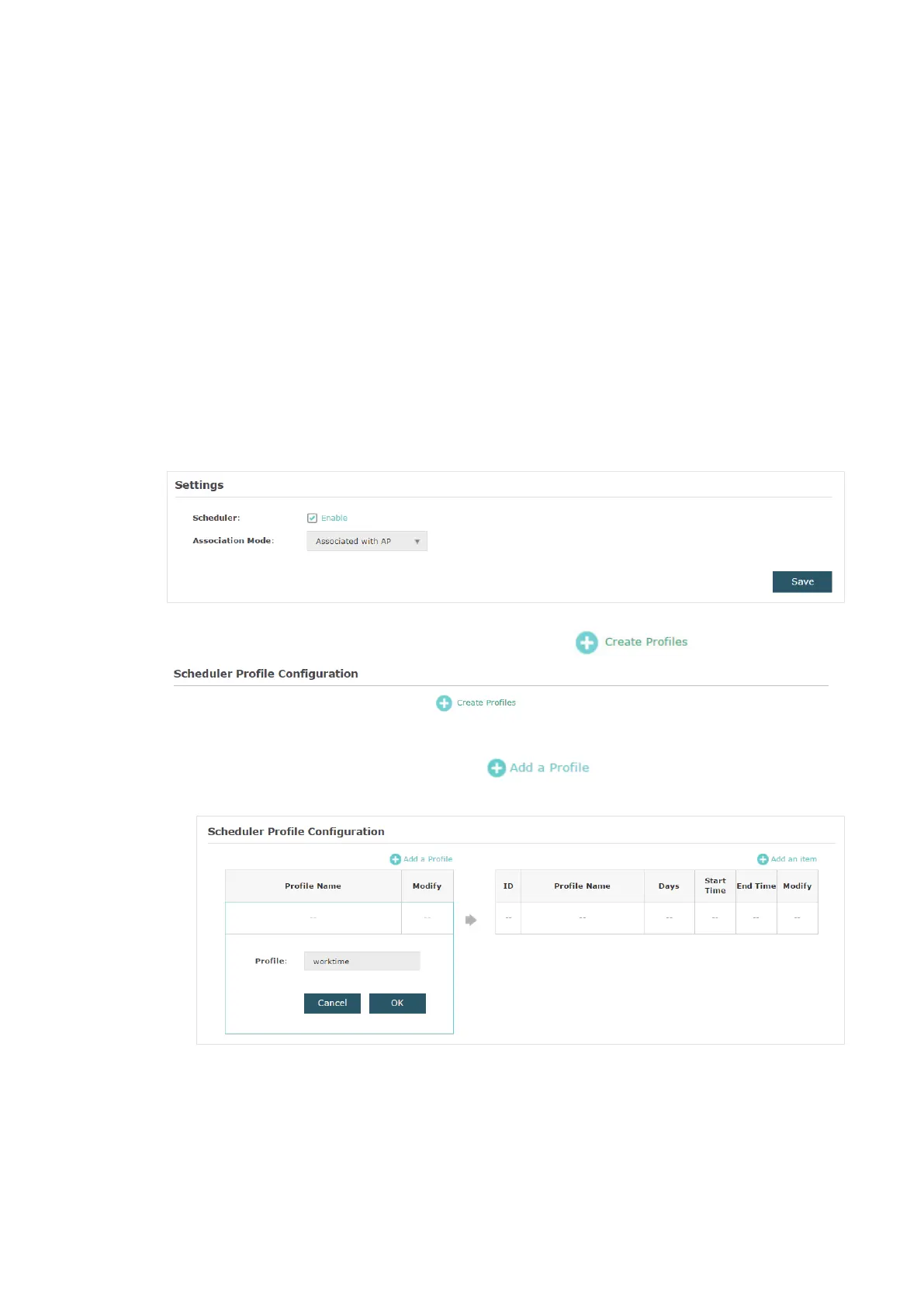

Configure Scheduler
Follow the steps below to schedule the radio to operate only during the working time (9:00
am to 22:00 pm).
1. Go to the Wireless > Scheduler page.
2. In the Settings section, check the box to enable Scheduler, and select the Association
Mode as “Associated with AP“. Click Save.
3. In the Scheduler Profile Configuration section, click .
1 ) The following page will appear. Click and specify the prole name as
“worktime”. Click OK.

TP-Link Omada OC200 Specifications

General

Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10, 100 Mbit/s
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Input current	1 A
DC input voltage	5 V
Power over Ethernet (PoE)	Yes
Power consumption (typical)	5 W
Flash memory	4000 MB
Internal memory	1024 MB
Processor frequency	1000 MHz
Control display unit	No
Internal memory type	DDR3
Management platform	L3
Security algorithms	SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, RoHS
Product color	Black
Cables included	LAN (RJ-45)
Compatible operating systems	Windows10, 8, 7, Vista, XP; MAC OS; NetWare, UNIX; Linux
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	128 mm
Package width	135 mm
Package height	70 mm
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	98 mm
Width	99.8 mm
Height	25 mm
