00Mbps Wireless N Gigabit ADSL2+ Modem Router User Guide
40
)
Note:

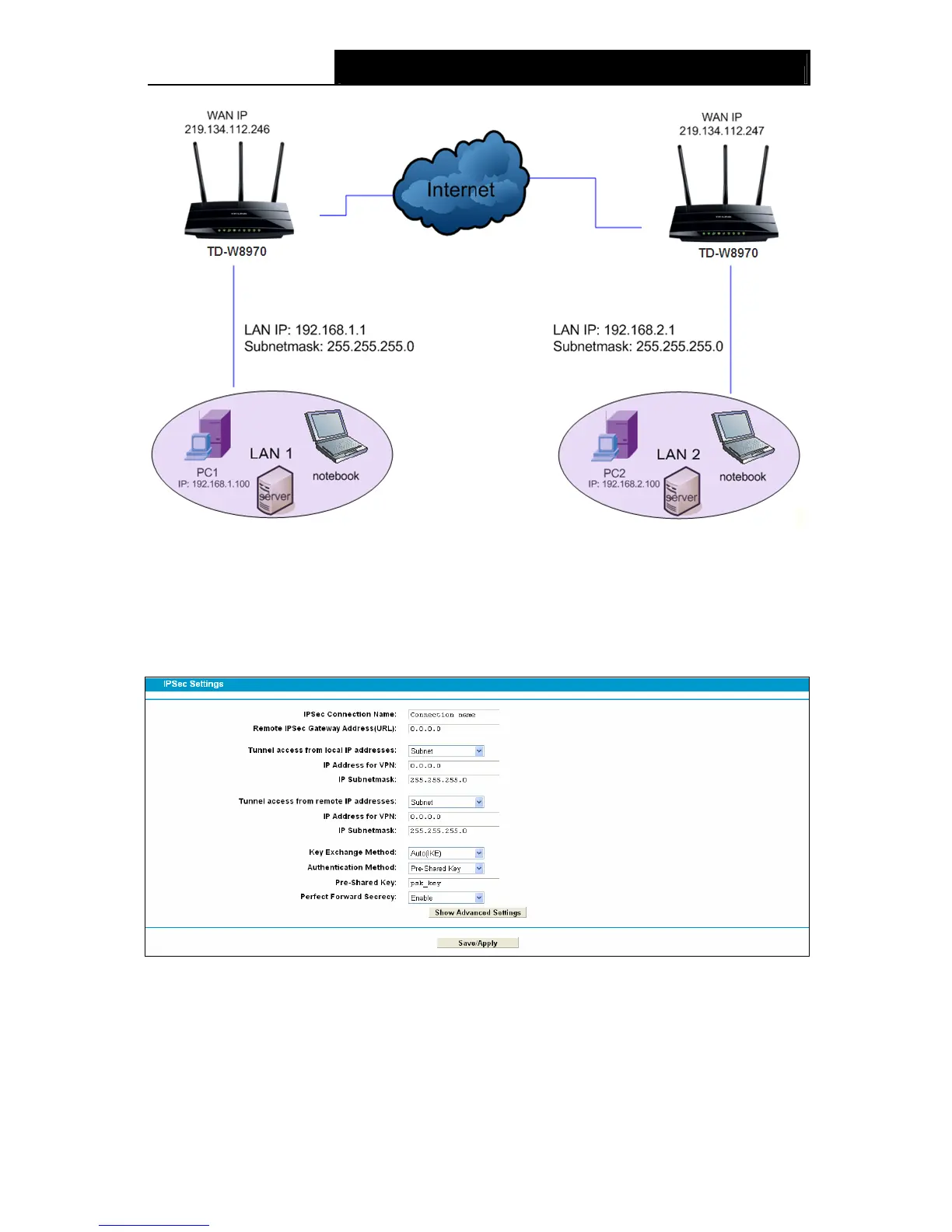

You could also use other VPN Routers to set VPN tunnels with TD-W8970. TD-W8970 supports
up to 10 VPN tunnels simultaneously.
Click Add New Connection in Figure 4-25 and then you will enter the screen shown in Figure
4-26.
Figure 4-26
¾ IPSec Connection Name: Enter a name for your VPN.
¾ Remote IPSec Gateway Address (URL): Enter the destination gateway IP address in the box
which is the public WAN IP or Domain Name of the remote VPN server endpoint. (For example:
Input 219.134.112.247 in Device1, Input 219.134.112.246 in Device 2)
¾ Tunnel access from local IP addresses: Choose Subnet if you want the Whole LAN to join
the VPN network, or else choose Single Address if you want single IP to join the VPN network.
