TD-W8970
3
00Mbps Wireless N Gigabit ADSL2+ Modem Router User Guide
62

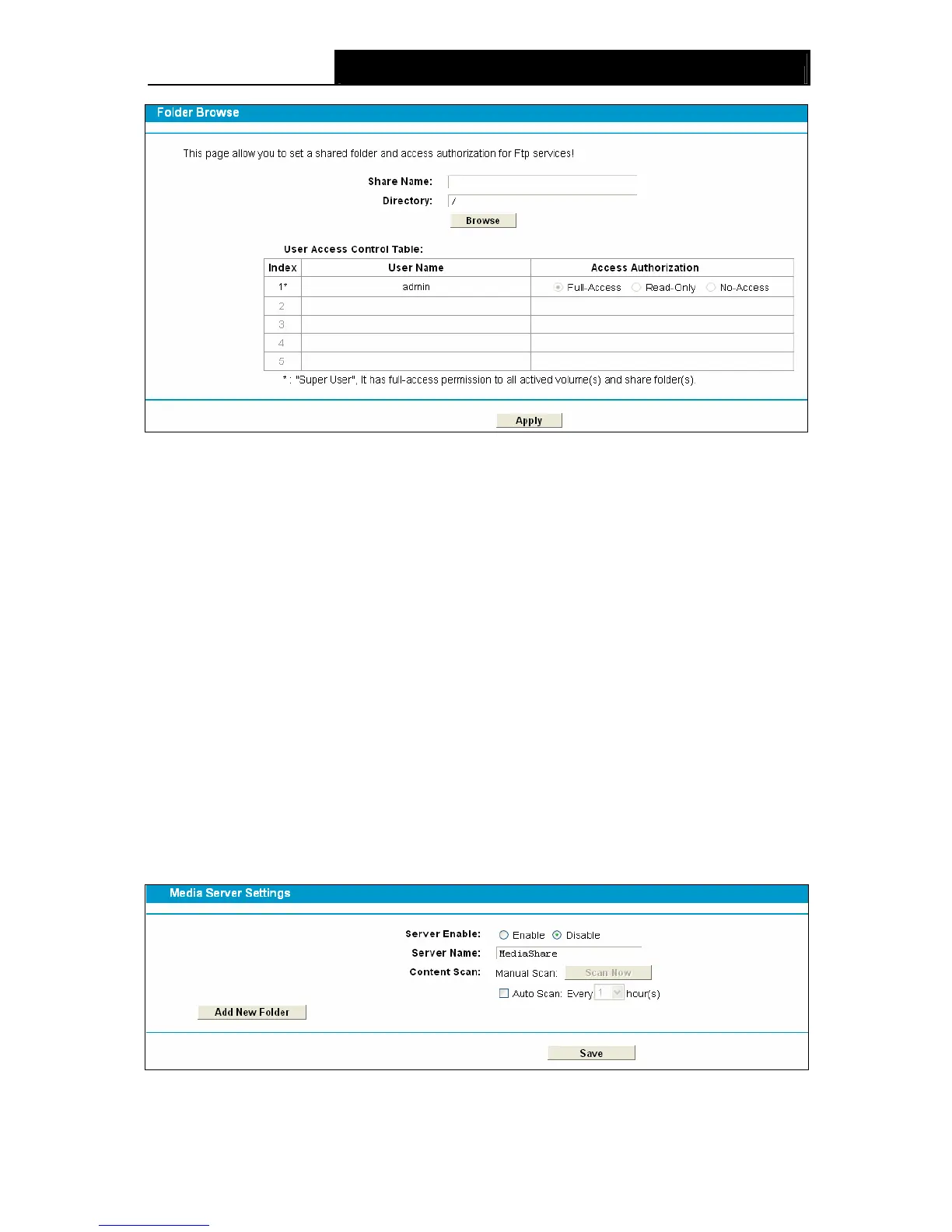

Figure 4-48
2. Click the Browse button, and then select the Select Volume from the drop-down list.
3. Enter display name of the share folder in Share Name filed.
4. Click the Apply button to apply the settings.
You can click the upper button to go to the upper folder.
Click the Enable/Disable Selected button to enable or disable the selected entries.
Click the Delete Selected button to delete the selected entries.
)
Note:
1. The max share folders number is 10. If you want to share a new folder when the number has
reached 10, you can delete an existing share folder and then add a new one.
2. If you want to change the FTP settings, you can click the Apply button to make the changes
take effect.
4.8.5 Media Server
Choose menu “USB SettingsMedia Server”, you can create media server that allows you to
share stored content with other computers and devices on your home network and on the Internet.
Figure 4-49
¾ Server Enable: Select this box to enable this function.

Table of Contents

Other manuals for TP-Link td-w8970

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TP-Link td-w8970 and is the answer not in the manual?

TP-Link td-w8970 Specifications

General IconGeneral
VPN supportPPTP, L2TP, IPSec Pass-through
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity10
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Antennas quantity2
Antenna connector typeRP-SMA
Antenna gain level (max)5 dBi
DHCP client-
Routing protocolsRIP-1, RIP-2
Supported network protocolsDHCP, ATM/PPP
RJ-11 ports quantity1
Ethernet LAN (RJ-45) ports4
Security algorithms128-bit AES, 128-bit WEP, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, SSL/TLS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Authentication methodMD5, SHA-1
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
CertificationCE, FCC, RoHS, IPv6
Cables includedLAN (RJ-45)
USB version2.0
CompatibilityIPv6
Input current1.5 A
Input voltage12 V
Rack mountingNo
Frequency band2.4 GHz
Frequency range2.4 - 2.4835 GHz
Filtering descriptionMAC / IP / URL
WLAN data transfer rates supported300 Mbit/s
Product colorBlack
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
Power source typeDC
Weight and Dimensions IconWeight and Dimensions
Depth140 mm
Width225 mm
Height32.5 mm
Weight- g
