TD-W8970
3
00Mbps Wireless N Gigabit ADSL2+ Modem Router User Guide
75
¾ Edit: To modify an existing entry.
To add a new entry, please follow the steps below.
1. Click the Add New button.
2. In the Mode field, select IP Address or MAC Address.
z If you select IP Address, please follow the steps below:
1) In Description field, create a unique description for the host (e.g. Host_1).
2) In IP Address field, enter the IP address.
z If you select MAC Address, please follow the steps below:
1) In Description field, create a unique description for the host (e.g. Host_1).
2) In MAC Address field, enter the MAC address.
3. Click the Save button to complete the settings.
Click the Delete Selected button to delete the selected entries in the table.
4.12.3 WAN Host

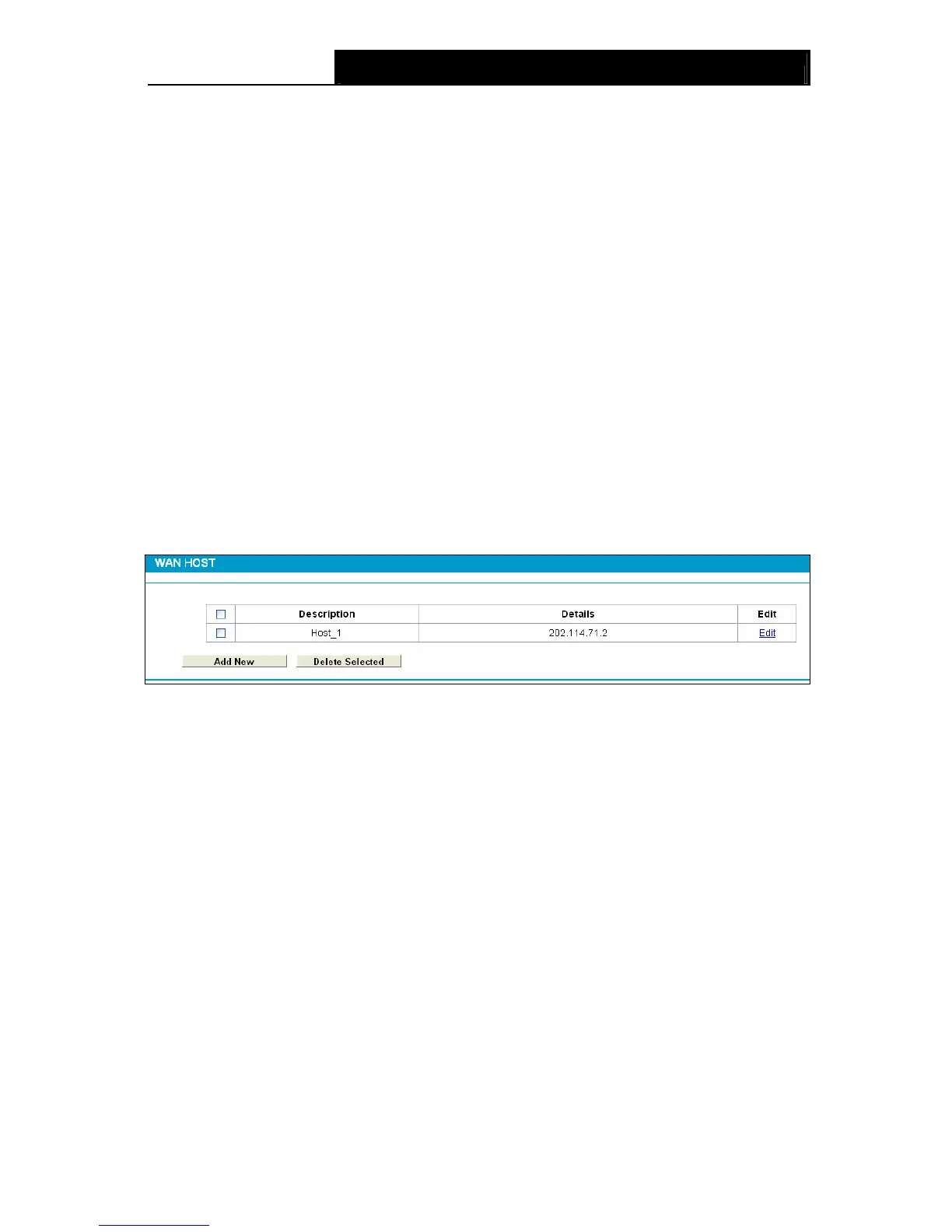

Choose menu “Firewall” → “WAN Host”, and then you can view and set a Host list in the screen
as shown in Figure 4-68.
Figure 4-68
¾ Description: Here displays the description about the WAN and this description is unique.
¾ Details: The details can be IP address, port, or domain name.
¾ Edit: To modify an existing entry.
To add a new entry, please follow the steps below.
1. Click the Add New button.
2. In Mode field, select IP Address, MAC Address or URL Address.
If you select IP Address, the screen shown is Figure 4-69.

TP-Link td-w8970 Specifications

General

VPN support	PPTP, L2TP, IPSec Pass-through
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
DHCP client	-
Routing protocols	RIP-1, RIP-2
Supported network protocols	DHCP, ATM/PPP
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit AES, 128-bit WEP, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, SSL/TLS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Authentication method	MD5, SHA-1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE, FCC, RoHS, IPv6
Cables included	LAN (RJ-45)
USB version	2.0
Compatibility	IPv6
Input current	1.5 A
Input voltage	12 V
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
Filtering description	MAC / IP / URL
WLAN data transfer rates supported	300 Mbit/s
Product color	Black
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Power source type	DC

Weight and Dimensions

Depth	140 mm
Width	225 mm
Height	32.5 mm
Weight	- g
