TD-W8970
3
00Mbps Wireless N Gigabit ADSL2+ Modem Router User Guide
89

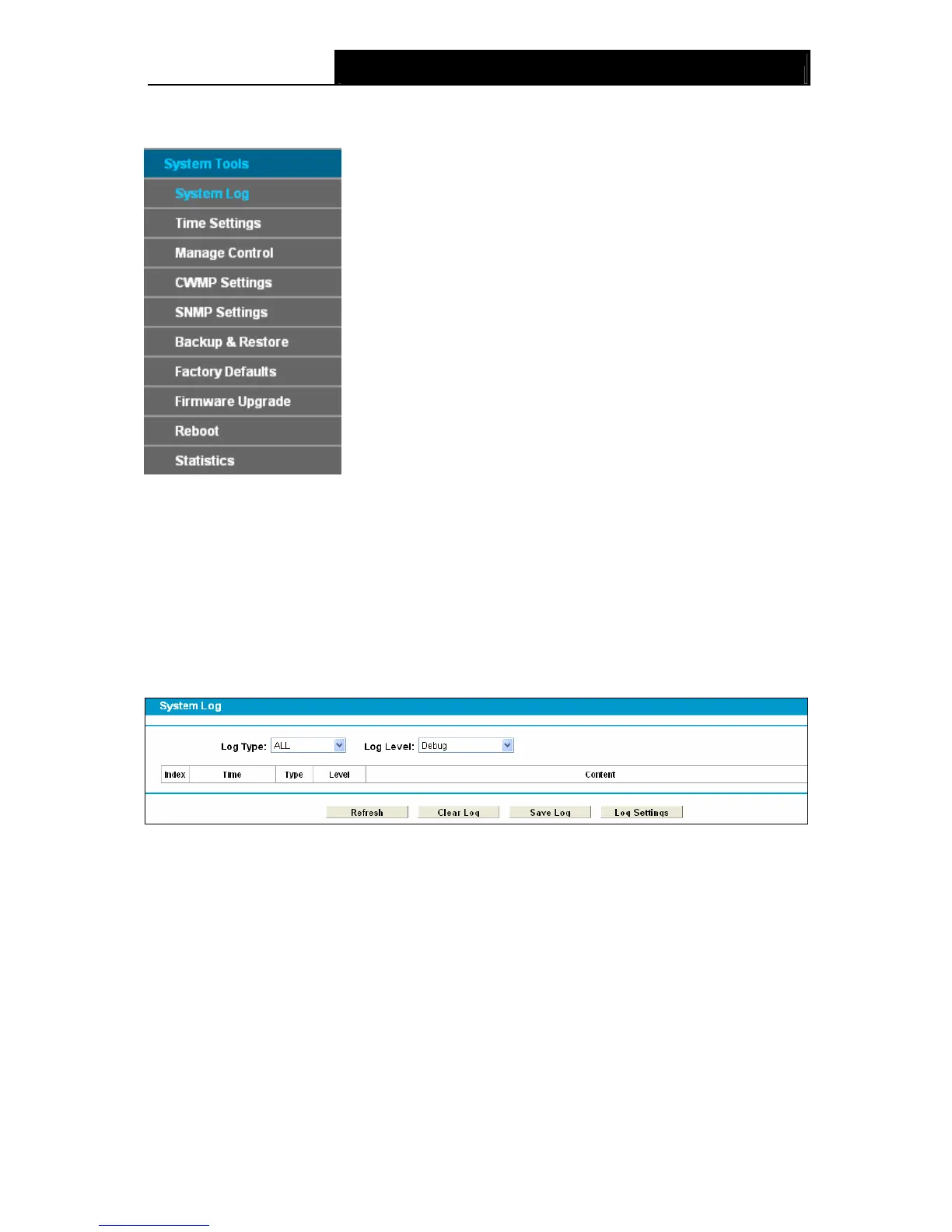

4.19 System Tools
Choose menu “System Tools”, and you can see the submenus under the main menu: System
Log, Time Settings, Manage Control, CWMP Settings, SNMP Settings, Backup & Restore,
Factory Defaults, Firmware Upgrade, Reboot and Statistics. Click any of them, and you will be
able to configure the corresponding function. The detailed explanations for each submenu are
provided below.
4.19.1 System Log
Choose menu “System Tools System Log”, and then you can view the logs of the modem
router.
Figure 4-93
¾ Log Type: By selecting the log type, only logs of this type will be shown.
¾ Log Level: By selecting the log level, only logs of this level will be shown.
¾ Refresh: Refresh the page to show the latest log list.
¾ Clear Log: All the logs will be deleted from the modem router permanently, not just from the
page.
¾ Save Log: Click to save all the logs in a txt file.
¾ Log Settings: Click to set the logs in the screen (shown in Figure 4-94).

Table of Contents

Other manuals for TP-Link td-w8970

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TP-Link td-w8970 and is the answer not in the manual?

TP-Link td-w8970 Specifications

General IconGeneral
VPN supportPPTP, L2TP, IPSec Pass-through
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity10
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Antennas quantity2
Antenna connector typeRP-SMA
Antenna gain level (max)5 dBi
DHCP client-
Routing protocolsRIP-1, RIP-2
Supported network protocolsDHCP, ATM/PPP
RJ-11 ports quantity1
Ethernet LAN (RJ-45) ports4
Security algorithms128-bit AES, 128-bit WEP, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, SSL/TLS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Authentication methodMD5, SHA-1
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
CertificationCE, FCC, RoHS, IPv6
Cables includedLAN (RJ-45)
USB version2.0
CompatibilityIPv6
Input current1.5 A
Input voltage12 V
Rack mountingNo
Frequency band2.4 GHz
Frequency range2.4 - 2.4835 GHz
Filtering descriptionMAC / IP / URL
WLAN data transfer rates supported300 Mbit/s
Product colorBlack
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
Power source typeDC
Weight and Dimensions IconWeight and Dimensions
Depth140 mm
Width225 mm
Height32.5 mm
Weight- g
