If you do not set the key, the wireless security function is still disabled even if you have selected
Shared Key as Authentication Type.
Be sure to click the Save button to save your settings on this page.
4.8.4 Wireless Schedule
Choose menu “Wireless”“Wireless Schedule”, you can configure the Task Schedule as shown
below.

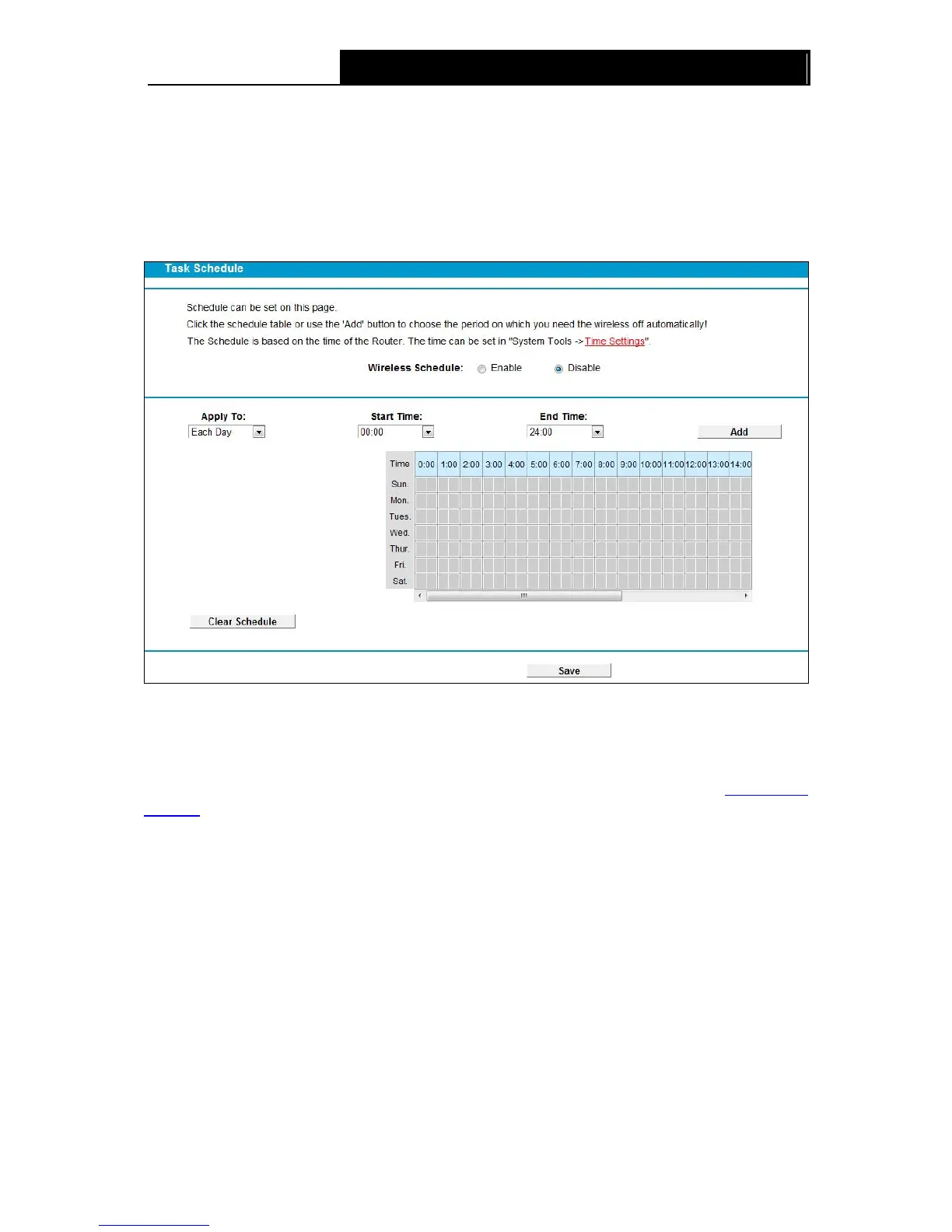

Figure 4-47

Note:
The time you set is the period you need the wireless off.
Before configure the wireless schedule, please set system time first which refer to
4.22.2 Time
Settings, then you can enable or disable Wireless Schedule.
 Apply To: Select the day or days you want to switch the wireless off.
 Start/End Time: You can select all day-24 hours or you may enter the Start Time and End
Time in the corresponding field.
 Add: Click this button to add your selected time to the below table.
Click the Clear Schedule button to clear your settings in the table.
Click Save to complete the settings.
4.8.5 Wireless MAC Filtering
Choose menu “Wireless”  ”Wireless MAC Filtering”, you can control the wireless access by
configuring the Wireless MAC Filtering function, shown in Figure 4-48.
62
