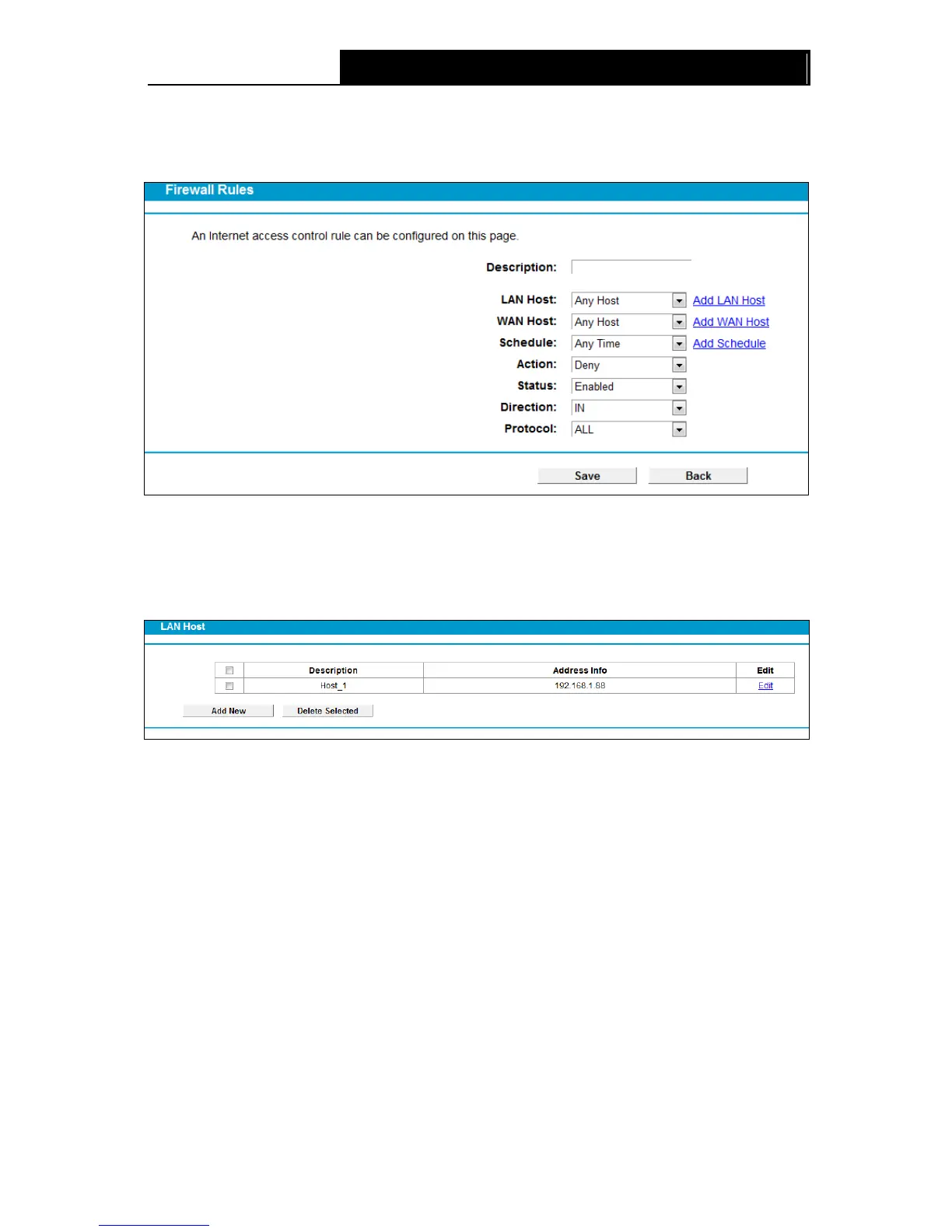

9. In the Protocol field, here are four options, All, TCP, UDP, and ICMP. Select one of them
from the drop-down list for the target.
10. Click the Save button.
Figure 4-79
4.15.2 LAN Host
Choose menu “Firewall”
→
“LAN Host”, and then you can view and set a Host list in the screen
as shown in Figure 4-80.
Figure 4-80
 Description: Here displays the description of the host and this description is unique.
 Address Info: Here displays the information about the host. It can be IP or MAC.
 Edit: To modify an existing entry.
To add a new entry, please follow the steps below.
1. Click the Add New button.
2. In the Mode field, select IP Address or MAC Address.
 If you select IP Address, please follow the steps below:
1) In Description field, create a unique description for the host (e.g. Host_1).
2) In IP Address field, enter the IP address.
 If you select MAC Address, please follow the steps below:
1) In Description field, create a unique description for the host (e.g. Host_1).
2) In MAC Address field, enter the MAC address.
86

TP-Link TD-W9970 Specifications

General

VPN support	PPTP, L2TP, IPSec Pass-through
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB version	2.0
Rack mounting	-
Frequency range	2.4 - 2.4835 GHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
DMZ support	No
Security algorithms	128-bit AES, 128-bit WEP, 192-bit AES, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	2
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
Certification	CE, FCC, RoHS
Mac operating systems supported	macOS
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC
Package depth	232 mm
Package width	260 mm
Package height	70 mm
Package weight	550 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	130 mm
Width	195 mm
Height	36 mm
Weight	- g
