TP-Link TD-W9970 User Manual

TD-W9970
300Mbps Wireless N USB VDSL2 Modem Router User Guide
Service Port does not have the application you need, enter the Trigger Port and the Open
Ports manually.
3. Select the protocol used for Trigger Port from the Trigger Protocol drop-down list, either
TCP, UDP, or All.
4. Select the protocol used for Incoming Ports from the Open Protocol drop-down list, either
TCP or UDP, or All.
5. Select Enable in Status field.
6. Click the Save button to save the new rule.

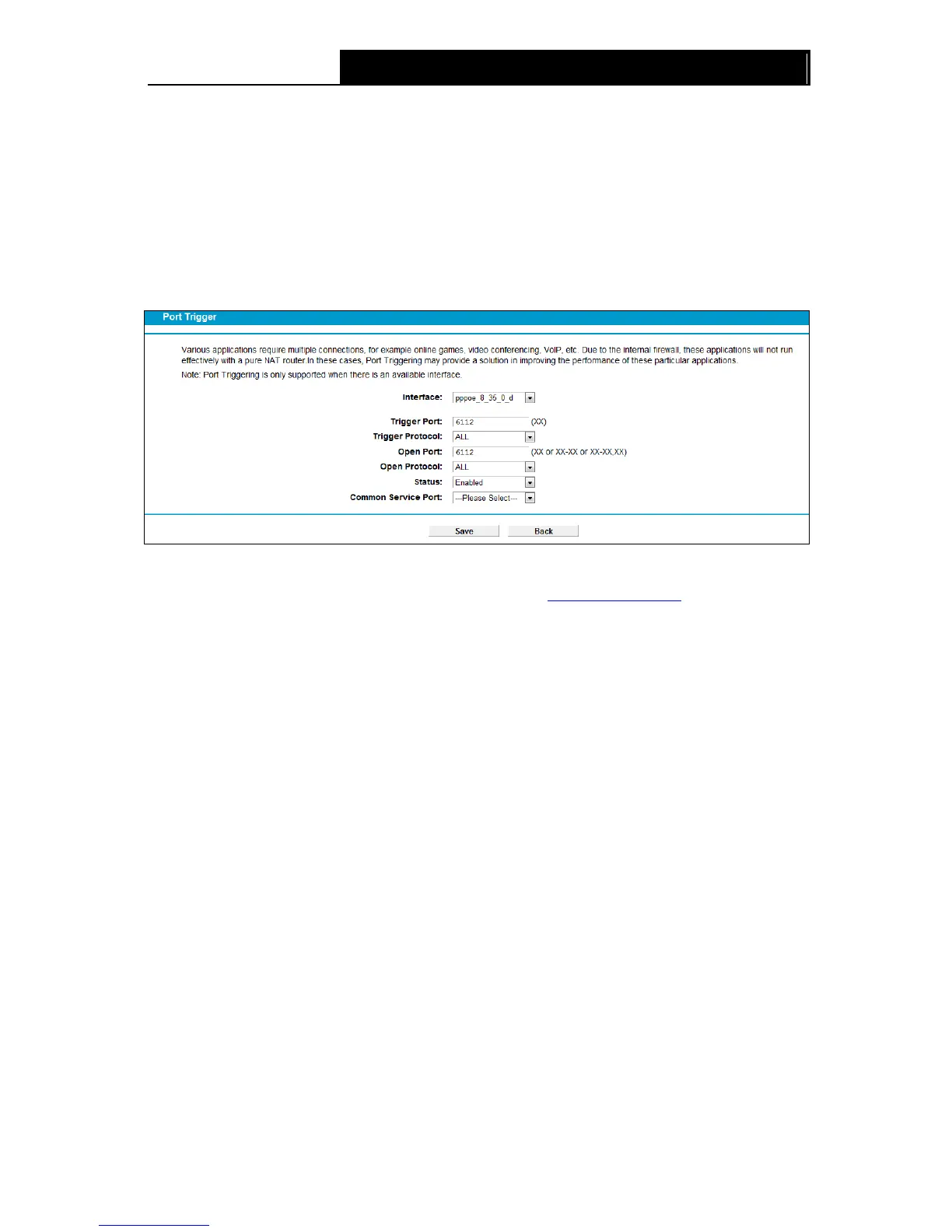

Figure 4-74
 Interface: Display the default gateway you have set in 4.5.1 WAN Settings.
 Trigger Port: The port for outgoing traffic. An outgoing connection using this port will trigger
this rule.
 Trigger Protocol: The protocol used for Trigger Ports, either TCP, UDP, or All (all protocols
supported by the modem router).
 Open Port: The port or port range used by the remote system when it responds to the
outgoing request. A response using one of these ports will be forwarded to the PC which
triggered this rule. You can input at most 5 groups of ports (or port sections). Every group of
ports must be separated with ",", for example, 2000-2038, 2046, 2050-2051, 2085,
3010-3030.
 Open Protocol: The protocol used for Incoming Port, either TCP, UDP, or ALL (all
protocols supported by the modem router).
 Status: The status of this entry, Enabled means the Port Triggering entry is enabled.
 Common Service Port: Some popular applications already listed in the drop-down list of
Open Protocol.
To modify or delete an existing entry:
1. Find the desired entry in the table.
2. Click Edit as desired on the Edit column.
Click the Enable/ Disabled Selected button to make selected entries enabled/ disabled.
Click the Delete Selected button to delete selected entries.
81

TP-Link TD-W9970 Specifications

General

VPN support	PPTP, L2TP, IPSec Pass-through
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB version	2.0
Rack mounting	-
Frequency range	2.4 - 2.4835 GHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
DMZ support	No
Security algorithms	128-bit AES, 128-bit WEP, 192-bit AES, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	2
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
Certification	CE, FCC, RoHS
Mac operating systems supported	macOS
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC
Package depth	232 mm
Package width	260 mm
Package height	70 mm
Package weight	550 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	130 mm
Width	195 mm
Height	36 mm
Weight	- g
