Configuring Transmission Configuration Examples

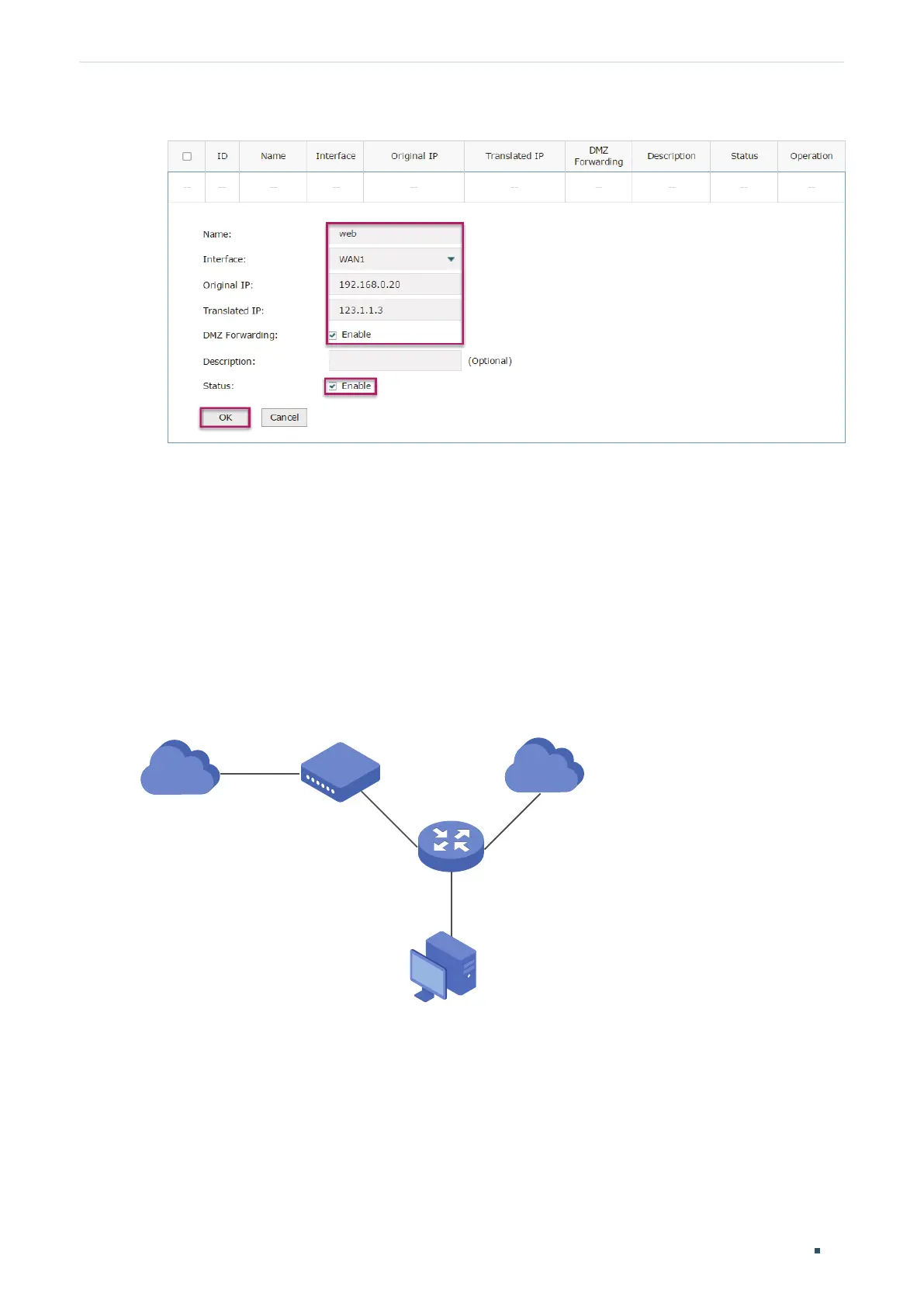

Figure 7-6 Adding a Multi-Nets Entry for RD Department
7.2 Example for Configuring Load Balancing
7.2.1 Network Requirements
To make good use of bandwidth, the network administrator decides to bind two WAN links
using load balancing.
7.2.2 Network Topology
Figure 7-7 Network Topology
Internet
Internet
WAN1
PPPoE 8Mbps
WAN2
Dynamic IP 12Mbps
Router
PC
7.2.3 Configuration Scheme
To meet the requirement, configure WAN parameters on the router in order that the
two WAN links can work properly and have access to the internet, then configure load
balancing on the router to aggregate two WAN links.
