Chapter 1
Get to Know About Your Access Point

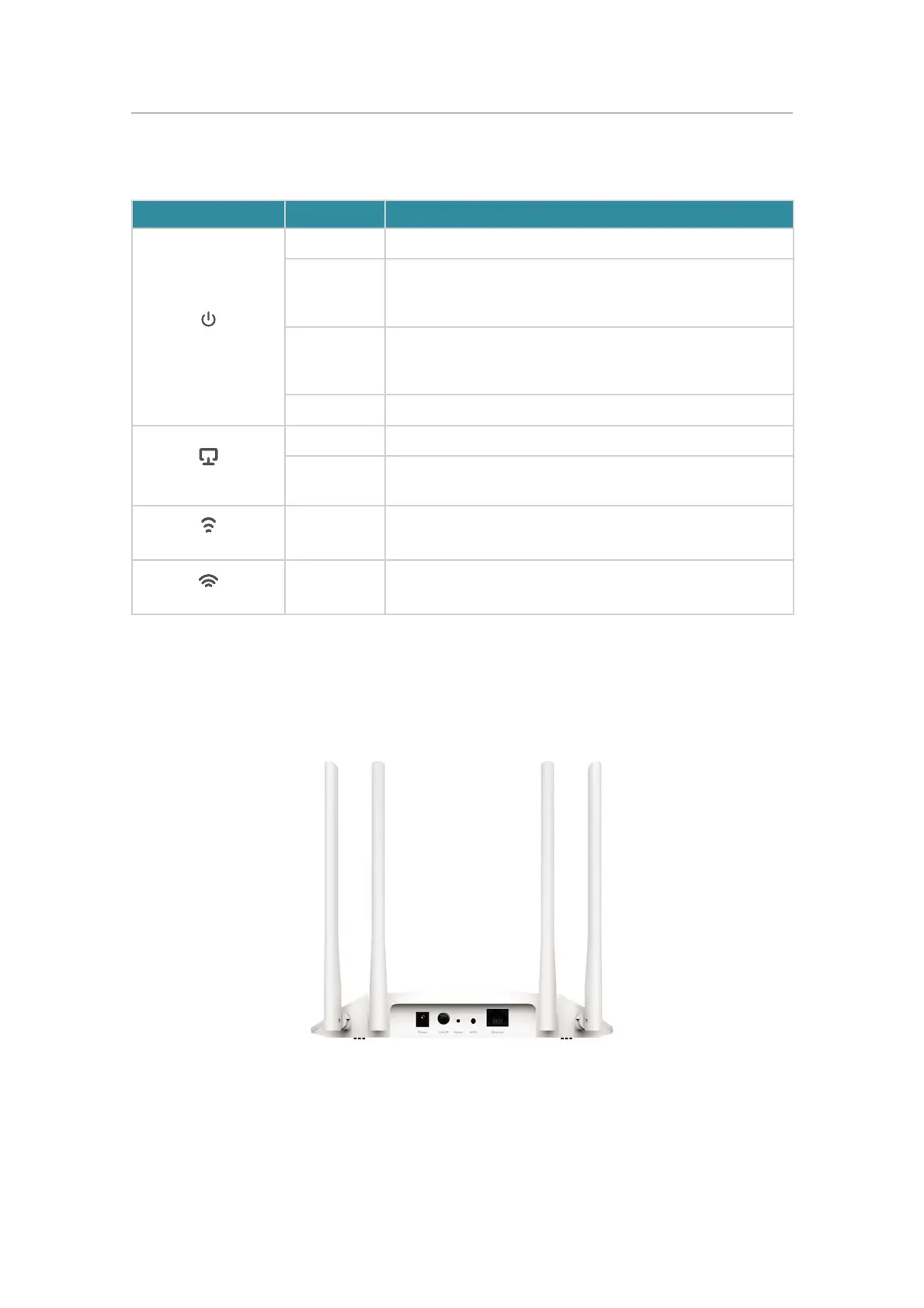

LED Explanation
Name Status Indication
(Power)
On Power is on.
Blinking
once every
second
The system is starting up or updating firmware. Do not
disconnect or power off your access point.
Blinking
twice every
second
WPS connection is in progress. This may take up to 2
minutes.
Off Power is off.
(Ethernet)
On The Ethernet port is connected to a powered-on device.
Off
The Ethernet port is not connected to a powered-on
device.
(2.4 GHz)
On/Off The 2.4 GHz wireless band is enabled or disabled.
(5 GHz)
On/Off The 5 GHz wireless band is enabled or disabled.
1. 2. 2. Back Panel
The following parts (view from left to right) are located on the back panel.
