TPC TIREBOSS - Operator Guide and Pressure Setting Cab Cards

SERVICE MANUAL
TIREBOSS
TM
Tire Pressure Control
OPERATOR GUIDE AND
PRESSURE SETTING CAB CARDS
Supplied with each system at time of install is an Operator Guide and a set of Pressure
Setting Cab cards. Pressure Setting Cab Cards are specifi c to each truck and
application. Operator Guide and Pressure Setting Cab cards must remain with the TIRE-
BOSS equipped vehicle at all times.
1-14
f:tec\manuals\Service\SERVICEv5.indd - V6-0615

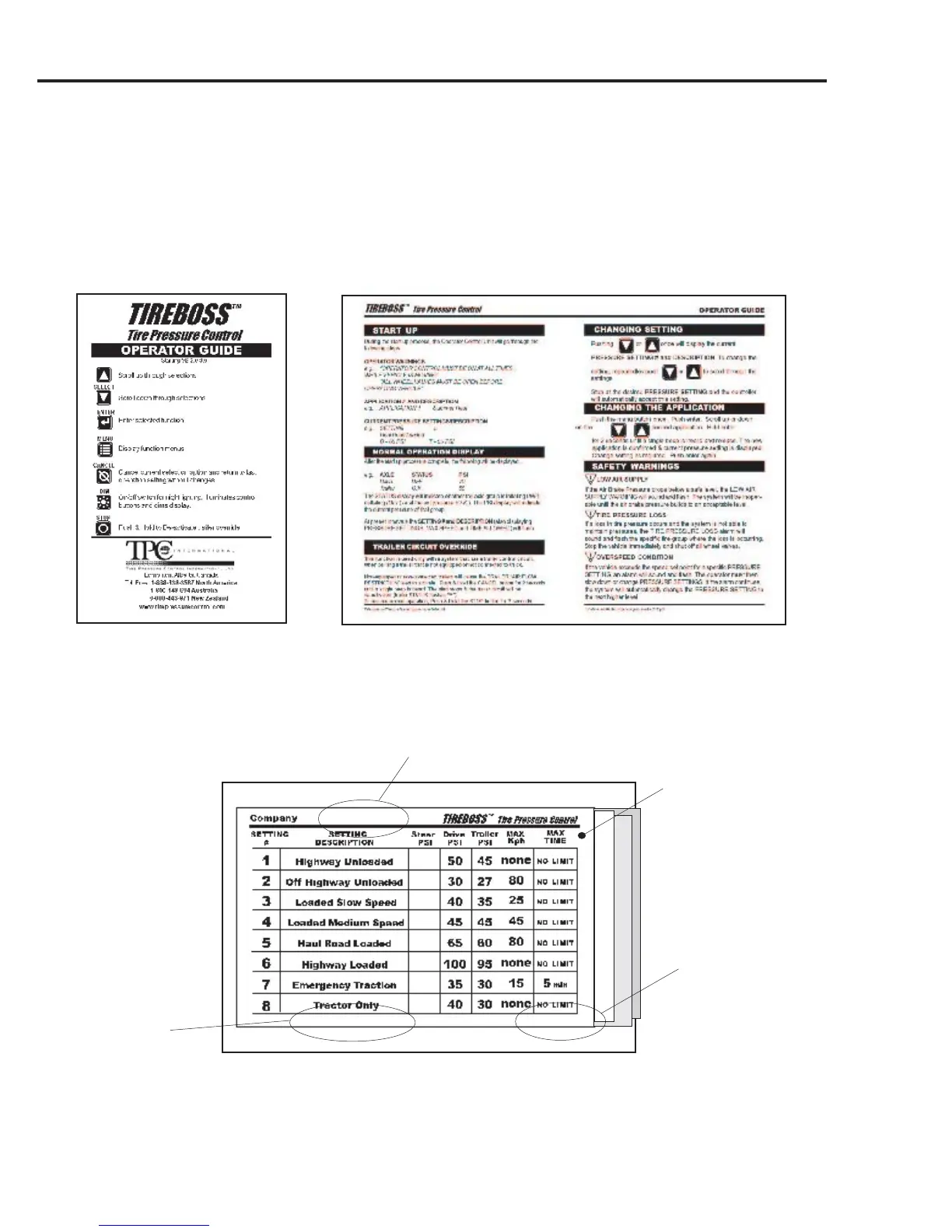

Page one gives a quick
outline of the
Operator Control Unit
push-button functions
for the operator.
Page two and three outlines the operation features to
be used by the driver during a haul cycle as well as
the three most important safety features.
Page four has a clear plastic sleeve which contains the Pressure Setting Cab Cards for that
particular unit. They show the specifi c pressure, speed settings and maximum allowable times
for each application setting. A system may have as many as eight Application Cards.
100
90
60
70
95
100
50
90
APP-1
SUMMER HAUL 1
TIREBOSS
COMPANY NAME
APPLICATION
NUMBER
APPLICATION
NAME
NOTE... always keep
current Application Pres-
sure Setting Cab Card in
front of sleeve for easy
operator reference
